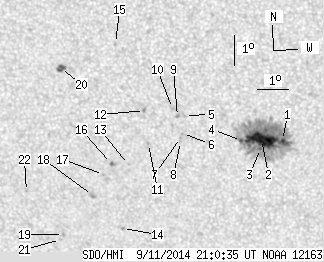

SDO HMI 2014-09-11 21:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.86 | 204.24 | 19.69 | 112.19 | -15.82 | 65.95 | -11.23 | 154.42 | 0.4346 | 488.5 | 349.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-11 21:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.51 | 176.64 | 0.83 | 96.76 | -15.80 | 67.27 | -9.90 | 157.00 | 0.4252 | 1086.3 | 447.4 | |
| 29.10 | -1.00 | 15.95 | -1.00 | -15.79 | 66.61 | -10.57 | 155.61 | 0.4291 | 1215.1 | 999999 | |
| 0.71 | -1.00 | 0.39 | -1.00 | -16.08 | 66.56 | -10.62 | 155.81 | 0.4337 | 680.0 | 999999 | |
| 1.16 | -1.00 | 0.64 | -1.00 | -15.84 | 65.96 | -11.21 | 154.37 | 0.4341 | 654.8 | 999999 | |
| 0.00 | 1.69 | 0.00 | 0.93 | -15.07 | 64.19 | -12.99 | 150.05 | 0.4364 | 712.0 | 535.5 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -15.66 | 64.08 | -13.09 | 150.54 | 0.4452 | 686.0 | 615.5 | |
| 0.00 | 0.71 | 0.00 | 0.39 | -15.79 | 64.01 | -13.16 | 150.55 | 0.4476 | 515.0 | 532.8 | |
| 0.00 | 0.27 | 0.00 | 0.15 | -15.92 | 64.00 | -13.17 | 150.68 | 0.4494 | 652.0 | 660.7 | |
| 0.00 | 1.87 | 0.00 | 1.03 | -15.10 | 63.96 | -13.21 | 149.66 | 0.4387 | 664.0 | 594.7 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -14.85 | 63.82 | -13.36 | 149.08 | 0.4364 | 782.0 | 666.5 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -16.02 | 62.96 | -14.21 | 148.91 | 0.4588 | -805.0 | -632.2 | |
| 0.00 | 1.69 | 0.00 | 0.93 | -14.94 | 62.91 | -14.26 | 147.51 | 0.4451 | -867.0 | -701.8 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -16.73 | 62.25 | -14.92 | 148.50 | 0.4738 | -889.0 | -682.8 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -18.88 | 61.87 | -15.30 | 150.20 | 0.5045 | 726.0 | 606.0 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -12.80 | 62.12 | -15.05 | 143.20 | 0.4246 | 913.0 | 710.6 | |
| 0.53 | 2.76 | 0.30 | 1.55 | -16.72 | 61.70 | -15.47 | 147.55 | 0.4781 | -910.5 | -698.9 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -17.09 | 61.41 | -15.77 | 147.50 | 0.4853 | -677.0 | -603.6 | |
| 0.00 | 2.67 | 0.00 | 1.52 | -17.80 | 60.98 | -16.19 | 147.62 | 0.4978 | -970.0 | -786.3 | |
| 0.00 | 1.33 | 0.00 | 0.77 | -19.15 | 59.88 | -17.30 | 147.40 | 0.5234 | -710.0 | -587.3 | |
| 2.85 | 5.43 | 1.58 | 3.01 | -13.67 | 60.28 | -16.89 | 141.25 | 0.4528 | -1006.1 | -787.2 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -19.32 | 59.76 | -17.42 | 147.41 | 0.5265 | -466.0 | -400.2 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -17.76 | 58.79 | -18.38 | 144.21 | 0.5155 | -729.0 | -651.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
