SDO HMI 2014-09-11 22:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 158.86 | 760.18 | 90.98 | 432.33 | -14.18 | 96.48 | 19.86 | 222.16 | 0.4913 | -5.5 | -96.9 | |
|
previous
or next observation for the same group /

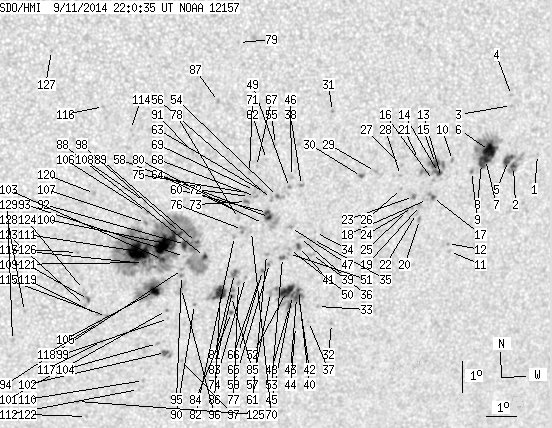

back to the solar disc SDO HMI 2014-09-11 22:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.25 | 0.00 | 0.76 | -12.00 | 106.42 | 29.80 | 237.21 | 0.5806 | 496.0 | 391.3 | |
| 1.87 | 23.14 | 1.13 | 13.95 | -12.32 | 105.61 | 28.99 | 235.99 | 0.5734 | 845.9 | 438.0 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -10.37 | 105.33 | 28.71 | 238.69 | 0.5552 | 653.0 | 536.4 | |
| 0.00 | 1.25 | 0.00 | 0.74 | -10.05 | 105.30 | 28.68 | 239.16 | 0.5525 | 808.0 | 638.3 | |
| 5.52 | -2.00 | 3.32 | -2.00 | -12.12 | 105.41 | 28.79 | 236.10 | 0.5695 | 908.5 | 999999 | |
| 15.75 | 57.94 | 9.39 | 34.49 | -11.76 | 104.70 | 28.08 | 235.98 | 0.5582 | 1061.1 | 586.2 | |
| 5.34 | -6.00 | 3.19 | -6.00 | -12.04 | 104.59 | 27.97 | 235.45 | 0.5591 | 908.5 | 999999 | |
| 3.56 | -6.00 | 2.12 | -6.00 | -12.16 | 104.47 | 27.85 | 235.15 | 0.5586 | 829.5 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.79 | -12.39 | 104.15 | 27.53 | 234.48 | 0.5567 | 809.0 | 725.8 | |
| 0.00 | 1.69 | 0.00 | 1.00 | -12.00 | 103.44 | 26.82 | 234.37 | 0.5451 | 853.0 | 655.9 | |
| 0.00 | 1.42 | 0.00 | 0.86 | -14.94 | 103.69 | 27.07 | 230.36 | 0.5732 | 535.0 | 448.5 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -14.67 | 103.59 | 26.97 | 230.62 | 0.5697 | 630.0 | 604.5 | |
| 0.00 | 1.25 | 0.00 | 0.74 | -12.52 | 103.12 | 26.50 | 233.25 | 0.5457 | 400.0 | 466.6 | |
| 2.76 | 23.49 | 1.62 | 13.80 | -12.35 | 103.00 | 26.38 | 233.37 | 0.5429 | 875.8 | 818.1 | |
| 4.36 | -14.00 | 2.56 | -14.00 | -12.06 | 102.86 | 26.24 | 233.68 | 0.5388 | 1066.4 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.84 | -12.60 | 102.85 | 26.23 | 232.85 | 0.5433 | 809.0 | 591.8 | |
| 1.07 | 4.45 | 0.63 | 2.63 | -13.15 | 102.88 | 26.26 | 232.06 | 0.5484 | 831.2 | 747.3 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -13.20 | 102.71 | 26.09 | 231.81 | 0.5469 | 743.0 | 649.5 | |
| 0.00 | 2.05 | 0.00 | 1.21 | -13.38 | 102.49 | 25.87 | 231.30 | 0.5460 | 834.0 | 692.9 | |
| 0.00 | 1.96 | 0.00 | 1.16 | -13.83 | 102.51 | 25.89 | 230.67 | 0.5502 | 800.0 | 661.5 | |
| 0.00 | 2.31 | 0.00 | 1.35 | -11.89 | 102.26 | 25.64 | 233.29 | 0.5303 | 776.0 | 651.8 | |
| 0.00 | 1.78 | 0.00 | 1.05 | -13.63 | 102.38 | 25.76 | 230.82 | 0.5470 | 535.0 | 559.6 | |
| 0.71 | 1.96 | 0.42 | 1.15 | -13.07 | 102.21 | 25.59 | 231.45 | 0.5401 | 909.4 | 780.4 | |
| 0.00 | 1.25 | 0.00 | 0.73 | -13.43 | 102.22 | 25.60 | 230.94 | 0.5434 | 865.0 | 672.0 | |
| 0.00 | 1.60 | 0.00 | 0.94 | -13.52 | 102.06 | 25.44 | 230.63 | 0.5423 | 720.0 | 581.7 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -12.79 | 101.77 | 25.15 | 231.39 | 0.5325 | 716.0 | 611.8 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -12.05 | 101.70 | 25.08 | 232.42 | 0.5250 | 671.0 | 560.8 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -12.37 | 101.69 | 25.07 | 231.93 | 0.5279 | 869.0 | 751.4 | |
| 0.00 | 2.05 | 0.00 | 1.18 | -12.20 | 100.83 | 24.21 | 231.22 | 0.5162 | 810.0 | 576.1 | |
| 0.71 | 1.60 | 0.41 | 0.92 | -12.33 | 100.37 | 23.75 | 230.47 | 0.5121 | 994.2 | 872.6 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -10.20 | 99.21 | 22.59 | 232.48 | 0.4787 | 864.0 | 762.3 | |
| 0.00 | 1.07 | 0.00 | 0.63 | -17.08 | 99.88 | 23.26 | 223.19 | 0.5537 | 591.0 | 386.8 | |
| 0.00 | 0.98 | 0.00 | 0.58 | -16.49 | 99.33 | 22.71 | 223.28 | 0.5421 | 548.0 | 453.8 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -14.06 | 98.99 | 22.37 | 226.19 | 0.5136 | 738.0 | 581.9 | |
| 0.00 | 2.31 | 0.00 | 1.34 | -14.28 | 98.91 | 22.29 | 225.77 | 0.5150 | 716.0 | 607.1 | |
| 0.00 | 3.47 | 0.00 | 2.01 | -14.77 | 98.93 | 22.31 | 225.10 | 0.5202 | 639.0 | 500.4 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -16.97 | 99.08 | 22.46 | 222.34 | 0.5447 | 711.0 | 575.3 | |
| 0.00 | 1.87 | 0.00 | 1.06 | -12.51 | 98.37 | 21.75 | 227.68 | 0.4912 | -725.0 | -593.9 | |
| 0.00 | 1.69 | 0.00 | 0.97 | -14.19 | 98.46 | 21.84 | 225.31 | 0.5093 | 721.0 | 560.9 | |
| 0.98 | 33.82 | 0.57 | 19.70 | -15.92 | 98.62 | 21.99 | 223.11 | 0.5290 | 738.6 | 579.6 | |
| 1.33 | 3.20 | 0.77 | 1.85 | -14.48 | 98.46 | 21.84 | 224.89 | 0.5123 | 952.1 | 790.5 | |
| 1.25 | -40.00 | 0.73 | -40.00 | -16.06 | 98.63 | 22.01 | 222.96 | 0.5306 | 870.7 | 999999 | |
| 0.98 | -40.00 | 0.57 | -40.00 | -16.15 | 98.57 | 21.95 | 222.76 | 0.5310 | 794.2 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -17.11 | 98.65 | 22.03 | 221.61 | 0.5420 | 605.0 | 538.2 | |
| 1.16 | -40.00 | 0.67 | -40.00 | -16.08 | 98.43 | 21.81 | 222.67 | 0.5288 | 863.5 | 999999 | |
| 0.00 | 2.67 | 0.00 | 1.51 | -12.21 | 98.01 | 21.39 | 227.68 | 0.4841 | -509.0 | -518.6 | |
| 0.00 | 2.40 | 0.00 | 1.37 | -13.85 | 98.13 | 21.51 | 225.36 | 0.5022 | -714.0 | -566.6 | |
| 1.33 | -40.00 | 0.78 | -40.00 | -16.44 | 98.37 | 21.75 | 222.12 | 0.5320 | 663.6 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.81 | -12.56 | 97.98 | 21.36 | 227.09 | 0.4872 | -797.0 | -658.1 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -14.57 | 98.16 | 21.54 | 224.39 | 0.5101 | 911.0 | 829.1 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -14.69 | 98.14 | 21.52 | 224.18 | 0.5112 | 873.0 | 767.4 | |
| 10.32 | -40.00 | 6.00 | -40.00 | -15.94 | 98.21 | 21.59 | 222.57 | 0.5251 | 1010.4 | 999999 | |
| 0.98 | 2.31 | 0.56 | 1.33 | -14.81 | 97.96 | 21.34 | 223.76 | 0.5106 | 877.7 | 766.9 | |
| 0.62 | 3.65 | 0.35 | 2.07 | -12.83 | 97.60 | 20.98 | 226.17 | 0.4859 | -957.4 | -637.6 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -11.16 | 97.40 | 20.78 | 228.52 | 0.4665 | -664.0 | -446.8 | |
| 0.00 | 1.96 | 0.00 | 1.11 | -12.92 | 97.41 | 20.79 | 225.78 | 0.4847 | -689.0 | -666.8 | |
| 0.00 | 3.03 | 0.00 | 1.75 | -15.94 | 97.67 | 21.05 | 221.84 | 0.5198 | 800.0 | 660.6 | |
| 1.87 | 17.80 | 1.06 | 10.12 | -13.49 | 97.39 | 20.77 | 224.89 | 0.4906 | -910.9 | -256.2 | |
| 0.00 | 2.31 | 0.00 | 1.33 | -14.99 | 97.54 | 20.92 | 222.95 | 0.5081 | 981.0 | 723.5 | |
| 1.69 | -58.00 | 0.96 | -58.00 | -13.33 | 97.31 | 20.69 | 225.02 | 0.4880 | -922.8 | 999999 | |
| 0.00 | 1.96 | 0.00 | 1.12 | -14.69 | 97.41 | 20.79 | 223.19 | 0.5036 | 858.0 | 691.4 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -11.62 | 97.14 | 20.52 | 227.41 | 0.4683 | -671.0 | -518.0 | |
| 0.00 | 1.42 | 0.00 | 0.80 | -12.68 | 97.16 | 20.54 | 225.79 | 0.4795 | -750.0 | -744.9 | |
| 0.00 | 1.33 | 0.00 | 0.76 | -13.68 | 97.21 | 20.59 | 224.37 | 0.4907 | -167.0 | -252.9 | |
| 0.44 | 1.51 | 0.26 | 0.87 | -15.21 | 97.33 | 20.71 | 222.36 | 0.5083 | 820.4 | 647.5 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -15.56 | 97.23 | 20.61 | 221.75 | 0.5112 | 694.0 | 581.6 | |
| 0.00 | 0.71 | 0.00 | 0.40 | -11.83 | 96.83 | 20.21 | 226.63 | 0.4669 | -642.0 | -626.9 | |
| 0.00 | 1.60 | 0.00 | 0.90 | -12.79 | 96.87 | 20.25 | 225.21 | 0.4776 | -724.0 | -685.4 | |
| 0.00 | 2.49 | 0.00 | 1.40 | -12.60 | 96.82 | 20.20 | 225.43 | 0.4750 | -668.0 | -749.7 | |
| 0.00 | 0.62 | 0.00 | 0.35 | -13.92 | 96.84 | 20.21 | 223.49 | 0.4893 | 547.0 | 500.0 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -12.01 | 96.61 | 19.99 | 226.04 | 0.4664 | -779.0 | -683.2 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -12.78 | 96.67 | 20.05 | 224.94 | 0.4753 | -923.0 | -804.8 | |
| 0.00 | 3.20 | 0.00 | 1.80 | -12.94 | 96.59 | 19.96 | 224.58 | 0.4761 | -973.0 | -751.8 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -15.41 | 96.78 | 20.16 | 221.33 | 0.5051 | 843.0 | 701.0 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -12.65 | 96.53 | 19.91 | 224.94 | 0.4723 | -713.0 | -610.1 | |
| 0.00 | 4.18 | 0.00 | 2.37 | -13.84 | 96.53 | 19.91 | 223.17 | 0.4853 | 690.0 | 566.2 | |
| 0.00 | 1.87 | 0.00 | 1.07 | -15.56 | 96.56 | 19.94 | 220.81 | 0.5047 | 756.0 | 678.2 | |
| 0.00 | 1.51 | 0.00 | 0.85 | -13.48 | 96.37 | 19.75 | 223.46 | 0.4796 | -611.0 | -550.5 | |
| 0.00 | 0.98 | 0.00 | 0.53 | -7.88 | 96.00 | 19.38 | 232.30 | 0.4171 | -791.0 | -576.6 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -13.25 | 96.31 | 19.69 | 223.72 | 0.4765 | -744.0 | -595.2 | |
| 1.87 | 5.16 | 1.07 | 2.95 | -15.26 | 96.40 | 19.78 | 220.99 | 0.4997 | 994.9 | 819.8 | |
| 0.00 | 1.60 | 0.00 | 0.91 | -14.05 | 96.28 | 19.66 | 222.51 | 0.4851 | 593.0 | 496.0 | |
| 0.00 | 1.69 | 0.00 | 0.97 | -15.82 | 96.39 | 19.77 | 220.23 | 0.5058 | 876.0 | 795.2 | |
| 0.62 | 1.69 | 0.36 | 0.98 | -16.54 | 96.43 | 19.81 | 219.35 | 0.5144 | 771.6 | 636.1 | |
| 0.80 | 2.05 | 0.46 | 1.18 | -16.01 | 96.37 | 19.75 | 219.95 | 0.5079 | 772.9 | 648.8 | |
| 10.15 | 19.85 | 5.81 | 11.35 | -15.86 | 95.99 | 19.37 | 219.60 | 0.5025 | 973.6 | 540.7 | |
| 0.00 | 1.96 | 0.00 | 1.07 | -9.71 | 95.45 | 18.83 | 228.14 | 0.4289 | -793.0 | -610.7 | |
| 1.78 | 347.61 | 1.01 | 194.16 | -14.66 | 95.35 | 18.73 | 220.27 | 0.4825 | 705.8 | -447.9 | |
| 0.89 | -88.00 | 0.50 | -88.00 | -14.19 | 95.05 | 18.43 | 220.46 | 0.4741 | -644.4 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -16.22 | 95.16 | 18.54 | 217.92 | 0.4989 | -549.0 | -480.2 | |
| 0.00 | 1.96 | 0.00 | 1.08 | -11.26 | 94.70 | 18.08 | 224.35 | 0.4372 | -767.0 | -632.6 | |
| 4.72 | -88.00 | 2.65 | -88.00 | -14.24 | 94.69 | 18.07 | 219.84 | 0.4712 | -904.2 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -14.63 | 94.69 | 18.07 | 219.30 | 0.4757 | -466.0 | -319.9 | |
| 0.00 | 1.60 | 0.00 | 0.90 | -15.05 | 94.66 | 18.04 | 218.68 | 0.4804 | -594.0 | -534.8 | |
| 0.00 | 1.51 | 0.00 | 0.85 | -15.25 | 94.64 | 18.02 | 218.40 | 0.4826 | -745.0 | -608.1 | |
| 0.00 | 9.26 | 0.00 | 5.25 | -15.67 | 94.68 | 18.06 | 217.89 | 0.4880 | -79.0 | -226.2 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -18.06 | 94.92 | 18.30 | 215.31 | 0.5185 | -630.0 | -529.0 | |
| 1.87 | -88.00 | 1.04 | -88.00 | -13.88 | 94.50 | 17.88 | 220.05 | 0.4650 | -993.1 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -16.65 | 94.34 | 17.72 | 216.14 | 0.4965 | -669.0 | -487.2 | |
| 29.46 | -88.00 | 16.46 | -88.00 | -14.18 | 94.06 | 17.44 | 218.93 | 0.4644 | -1162.6 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -16.38 | 94.25 | 17.63 | 216.33 | 0.4924 | -644.0 | -622.2 | |
| 1.87 | 6.23 | 1.07 | 3.59 | -17.77 | 94.35 | 17.73 | 214.81 | 0.5102 | -926.9 | -651.9 | |
| 1.96 | -88.00 | 1.10 | -88.00 | -14.70 | 93.97 | 17.35 | 218.08 | 0.4697 | -670.2 | 999999 | |
| 0.00 | 1.51 | 0.00 | 0.87 | -17.46 | 94.06 | 17.44 | 214.72 | 0.5039 | -675.0 | -552.9 | |
| 7.30 | 57.22 | 4.12 | 32.25 | -15.74 | 93.80 | 17.18 | 216.44 | 0.4806 | 935.8 | 154.6 | |
| 0.00 | 2.76 | 0.00 | 1.52 | -13.12 | 93.33 | 16.71 | 219.24 | 0.4446 | -506.0 | -530.0 | |
| 0.00 | 2.05 | 0.00 | 1.13 | -13.48 | 93.33 | 16.71 | 218.72 | 0.4488 | -982.0 | -735.2 | |
| 0.00 | 1.78 | 0.00 | 0.98 | -12.80 | 93.25 | 16.63 | 219.57 | 0.4398 | -731.0 | -609.8 | |
| 2.94 | -88.00 | 1.64 | -88.00 | -14.77 | 93.36 | 16.74 | 216.98 | 0.4648 | -761.6 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -18.68 | 93.71 | 17.09 | 212.81 | 0.5160 | -782.0 | -641.2 | |
| 26.25 | -88.00 | 14.62 | -88.00 | -14.41 | 93.17 | 16.55 | 217.16 | 0.4586 | -1208.1 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -18.98 | 93.58 | 16.96 | 212.27 | 0.5186 | -586.0 | -497.5 | |
| 1.07 | -88.00 | 0.60 | -88.00 | -14.76 | 93.06 | 16.44 | 216.51 | 0.4620 | -837.8 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -10.48 | 92.66 | 16.04 | 222.19 | 0.4062 | -630.0 | -657.0 | |
| 0.00 | 2.14 | 0.00 | 1.20 | -16.50 | 92.29 | 15.67 | 213.04 | 0.4769 | 708.0 | 362.6 | |
| 0.00 | 1.33 | 0.00 | 0.72 | -9.72 | 91.76 | 15.14 | 221.84 | 0.3876 | -866.0 | -705.2 | |
| 0.00 | 1.51 | 0.00 | 0.86 | -17.32 | 92.20 | 15.58 | 211.93 | 0.4867 | -875.0 | -730.6 | |
| 0.00 | 1.78 | 0.00 | 1.00 | -16.69 | 92.08 | 15.46 | 212.46 | 0.4776 | -914.0 | -644.2 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -16.42 | 91.99 | 15.37 | 212.63 | 0.4735 | -677.0 | -509.1 | |
| 0.00 | 1.33 | 0.00 | 0.73 | -12.48 | 91.62 | 15.00 | 217.16 | 0.4201 | -764.0 | -635.0 | |
| 0.71 | 4.36 | 0.40 | 2.43 | -15.92 | 91.66 | 15.04 | 212.66 | 0.4642 | -776.0 | -659.0 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -19.82 | 91.93 | 15.31 | 208.85 | 0.5168 | -688.0 | -610.2 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -16.11 | 91.54 | 14.92 | 212.23 | 0.4658 | -598.0 | -526.6 | |
| 0.00 | 0.62 | 0.00 | 0.35 | -15.58 | 91.47 | 14.85 | 212.74 | 0.4584 | -609.0 | -610.0 | |
| 0.00 | 1.42 | 0.00 | 0.82 | -19.30 | 91.58 | 14.96 | 208.81 | 0.5076 | -798.0 | -711.1 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -14.37 | 91.19 | 14.57 | 213.77 | 0.4403 | -808.0 | -675.6 | |
| 0.00 | 0.71 | 0.00 | 0.38 | -7.91 | 90.05 | 13.43 | 221.73 | 0.3472 | -703.0 | -609.4 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -16.24 | 89.61 | 12.99 | 208.62 | 0.4524 | -704.0 | -520.5 | |
| 0.00 | 1.69 | 0.00 | 0.94 | -17.19 | 89.28 | 12.66 | 207.02 | 0.4630 | -639.0 | -525.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
