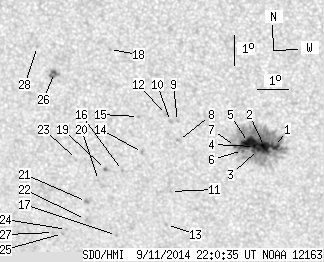

SDO HMI 2014-09-11 22:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.19 | 184.92 | 20.37 | 101.49 | -15.84 | 65.84 | -10.78 | 155.33 | 0.4321 | 511.1 | 340.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-11 22:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.36 | 154.58 | 2.38 | 84.54 | -15.82 | 67.20 | -9.42 | 158.02 | 0.4226 | 1066.4 | 478.3 | |
| 10.59 | -1.00 | 5.79 | -1.00 | -15.83 | 66.88 | -9.74 | 157.36 | 0.4246 | 1263.0 | 999999 | |
| 2.31 | -1.00 | 1.27 | -1.00 | -15.93 | 66.68 | -9.94 | 157.04 | 0.4273 | 1048.6 | 999999 | |
| 4.18 | -1.00 | 2.29 | -1.00 | -15.84 | 66.56 | -10.06 | 156.70 | 0.4267 | 1174.1 | 999999 | |
| 12.99 | -1.00 | 7.11 | -1.00 | -15.71 | 66.37 | -10.25 | 156.20 | 0.4260 | 1184.5 | 999999 | |
| 0.36 | -1.00 | 0.20 | -1.00 | -15.98 | 66.17 | -10.45 | 156.04 | 0.4312 | 778.2 | 999999 | |
| 0.98 | -1.00 | 0.54 | -1.00 | -15.85 | 65.95 | -10.67 | 155.47 | 0.4308 | 651.5 | 999999 | |
| 0.00 | 1.96 | 0.00 | 1.08 | -15.70 | 64.14 | -12.48 | 151.74 | 0.4413 | 708.0 | 520.7 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -15.08 | 64.14 | -12.48 | 151.05 | 0.4327 | 813.0 | 633.3 | |
| 0.00 | 2.05 | 0.00 | 1.12 | -15.09 | 63.92 | -12.70 | 150.62 | 0.4345 | 615.0 | 543.0 | |
| 0.00 | 0.53 | 0.00 | 0.30 | -17.39 | 63.76 | -12.86 | 152.84 | 0.4671 | 562.0 | 364.3 | |
| 0.00 | 1.42 | 0.00 | 0.78 | -14.86 | 63.80 | -12.82 | 150.13 | 0.4323 | 854.0 | 654.6 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -18.50 | 63.55 | -13.07 | 153.56 | 0.4837 | 761.0 | 561.4 | |
| 0.00 | 1.78 | 0.00 | 0.99 | -16.13 | 62.95 | -13.67 | 150.00 | 0.4561 | -824.0 | -712.7 | |
| 0.00 | 1.33 | 0.00 | 0.74 | -14.95 | 62.90 | -13.72 | 148.53 | 0.4408 | -883.0 | -676.7 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -16.74 | 62.25 | -14.37 | 149.47 | 0.4696 | -809.0 | -660.8 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -18.92 | 61.87 | -14.75 | 151.15 | 0.5011 | 749.0 | 584.6 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -12.81 | 62.11 | -14.51 | 144.22 | 0.4197 | 896.0 | 797.2 | |
| 0.00 | 2.05 | 0.00 | 1.15 | -16.73 | 61.70 | -14.92 | 148.50 | 0.4738 | -862.0 | -744.2 | |
| 0.00 | 0.71 | 0.00 | 0.40 | -17.10 | 61.44 | -15.18 | 148.48 | 0.4807 | -824.0 | -670.0 | |
| 0.00 | 2.14 | 0.00 | 1.21 | -17.81 | 60.98 | -15.64 | 148.53 | 0.4935 | -923.0 | -780.6 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -18.42 | 60.89 | -15.73 | 149.04 | 0.5019 | -708.0 | -686.4 | |
| 0.00 | 0.71 | 0.00 | 0.40 | -16.43 | 60.78 | -15.84 | 146.60 | 0.4775 | -538.0 | -461.0 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -18.78 | 60.23 | -16.39 | 148.38 | 0.5116 | -638.0 | -459.6 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -18.92 | 60.08 | -16.54 | 148.30 | 0.5145 | -679.0 | -587.0 | |
| 1.42 | 5.78 | 0.79 | 3.20 | -13.61 | 60.29 | -16.33 | 142.10 | 0.4469 | -1056.8 | -838.5 | |
| 0.00 | 1.33 | 0.00 | 0.77 | -18.90 | 59.78 | -16.84 | 147.82 | 0.5166 | -630.0 | -513.8 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -12.80 | 59.79 | -16.83 | 140.09 | 0.4418 | 759.0 | 633.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
