Sunspot Group 12158

group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

12158	187.57	1039.68	96.45	533.94	16.06	87.63	12.67	306.25	0.2645	639.3	276.2

previous or next observation for the same group / back to the solar disc

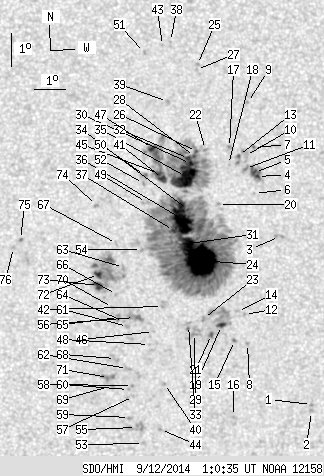

SDO HMI 2014-09-12 01:00:35 UT
No observation available

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

1	0.00	1.42	0.00	0.74	10.82	91.40	16.44	283.61	0.2872	-750.0	-613.0
2	0.00	1.78	0.00	0.92	10.61	91.39	16.42	282.89	0.2864	-577.0	-558.2
3	0.00	3.47	0.00	1.81	15.95	90.73	15.76	300.81	0.3054	616.0	737.8
4	1.42	14.96	0.74	7.80	17.81	90.17	15.20	306.89	0.3135	1043.6	704.6
5	1.96	-4.00	1.02	-4.00	17.93	90.08	15.11	307.38	0.3135	1132.6	999999
6	0.00	0.71	0.00	0.37	17.29	90.02	15.06	305.73	0.3069	701.0	518.4
7	0.00	1.42	0.00	0.74	18.70	90.12	15.15	309.30	0.3213	494.0	479.5
8	0.00	1.42	0.00	0.73	12.73	89.47	14.50	292.15	0.2649	-868.0	-619.9
9	0.00	1.16	0.00	0.61	20.09	90.05	15.09	312.80	0.3346	-684.0	-523.8
10	0.00	6.23	0.00	3.25	18.46	89.83	14.86	309.20	0.3154	123.0	345.0
11	0.00	3.20	0.00	1.67	18.06	89.80	14.83	308.22	0.3111	983.0	823.1
12	0.00	0.89	0.00	0.46	13.61	89.43	14.46	295.30	0.2696	-545.0	-495.0
13	0.36	3.65	0.19	1.90	18.47	89.60	14.63	309.63	0.3125	869.8	820.3
14	0.00	1.69	0.00	0.87	13.71	89.21	14.24	295.95	0.2670	-578.0	-509.4
15	0.00	1.51	0.00	0.78	12.84	89.06	14.09	293.05	0.2592	-748.0	-598.5
16	0.00	0.98	0.00	0.50	10.54	88.91	13.94	284.45	0.2457	-770.0	-670.5
17	0.00	1.69	0.00	0.88	18.73	89.33	14.36	310.79	0.3116	922.0	731.6
18	0.00	0.45	0.00	0.23	18.20	89.25	14.28	309.57	0.3054	546.0	406.2
19	2.58	27.24	1.32	13.96	13.30	88.67	13.70	295.29	0.2561	-954.6	-52.8
20	0.00	1.69	0.00	0.87	16.99	88.83	13.86	307.01	0.2881	673.0	507.0
21	0.71	2.67	0.36	1.37	13.04	88.34	13.37	294.82	0.2493	-938.0	-792.2
22	0.00	1.87	0.00	0.97	18.69	88.54	13.57	312.21	0.3014	658.0	507.4
23	0.00	2.49	0.00	1.27	13.53	88.11	13.14	297.00	0.2492	803.0	541.8
24	69.08	796.14	35.46	409.39	15.30	88.12	13.16	303.11	0.2633	1559.6	439.4
25	0.00	1.69	0.00	0.89	21.32	88.51	13.54	318.48	0.3305	702.0	563.8
26	0.62	-24.00	0.32	-24.00	18.63	88.24	13.27	312.68	0.2972	762.9	999999
27	0.00	1.07	0.00	0.56	21.17	88.46	13.49	318.25	0.3282	789.0	579.3
28	0.89	-24.00	0.46	-24.00	18.48	88.16	13.19	312.44	0.2946	725.2	999999
29	0.00	10.77	0.00	5.50	13.09	87.80	12.83	295.83	0.2414	-801.0	-535.4
30	4.01	-24.00	2.07	-24.00	18.27	88.01	13.05	312.18	0.2906	926.3	999999
31	13.09	-24.00	6.72	-24.00	15.83	87.77	12.81	305.50	0.2631	1230.7	999999
32	2.49	-24.00	1.29	-24.00	18.43	87.96	12.99	312.71	0.2916	800.4	999999
33	0.00	3.83	0.00	1.95	13.33	87.62	12.66	297.07	0.2405	-443.0	-532.7
34	0.27	-24.00	0.14	-24.00	16.87	87.81	12.84	308.63	0.2736	795.7	999999
35	34.27	-24.00	17.70	-24.00	17.88	87.82	12.85	311.52	0.2840	1155.7	999999
36	36.95	-24.00	18.99	-24.00	16.56	87.63	12.66	308.11	0.2682	1192.6	999999
37	0.27	-24.00	0.14	-24.00	16.24	87.32	12.35	307.75	0.2609	1164.0	999999
38	0.00	0.98	0.00	0.51	22.06	87.68	12.71	321.73	0.3307	645.0	541.3
39	0.00	2.05	0.00	1.06	20.20	87.41	12.45	318.28	0.3053	802.0	625.2
40	0.00	1.34	0.00	0.68	11.60	86.78	11.81	291.36	0.2163	-926.0	-751.4
41	4.36	-24.00	2.25	-24.00	17.84	87.07	12.10	313.04	0.2743	1112.3	999999
42	0.00	1.42	0.00	0.73	13.93	86.83	11.86	300.81	0.2333	146.0	119.1
43	0.00	1.16	0.00	0.61	21.95	87.40	12.43	322.09	0.3264	533.0	447.0
44	0.00	1.34	0.00	0.68	10.21	86.60	11.63	285.29	0.2066	-866.0	-659.1
45	3.20	-24.00	1.65	-24.00	17.99	86.95	11.98	313.74	0.2746	907.1	999999
46	0.00	0.89	0.00	0.45	13.18	86.51	11.54	298.52	0.2226	-542.0	-430.2
47	3.12	-24.00	1.61	-24.00	18.77	86.81	11.85	316.13	0.2817	-994.1	999999
48	0.00	0.89	0.00	0.45	12.79	86.36	11.39	297.19	0.2176	-851.0	-692.7
49	0.00	3.29	0.00	1.69	17.11	86.50	11.54	312.27	0.2595	867.0	547.7
50	0.00	3.20	0.00	1.65	17.94	86.49	11.53	314.67	0.2685	618.0	506.5
51	0.00	1.51	0.00	0.79	21.74	86.78	11.82	323.03	0.3177	773.0	640.1
52	0.00	1.51	0.00	0.78	17.70	86.45	11.48	314.10	0.2652	844.0	662.3
53	0.00	1.96	0.00	0.99	9.80	86.05	11.08	283.90	0.1960	-806.0	-611.8
54	0.00	1.42	0.00	0.73	15.68	86.26	11.29	308.33	0.2414	728.0	648.3
55	0.00	9.70	0.00	4.90	10.29	85.85	10.88	286.58	0.1947	-835.0	-775.6
56	0.00	10.06	0.00	5.11	13.62	85.93	10.96	301.50	0.2177	-838.0	-763.0
57	0.00	0.80	0.00	0.40	11.23	85.79	10.82	291.25	0.1985	-893.0	-742.7
58	0.00	0.98	0.00	0.50	11.56	85.77	10.80	292.85	0.2002	-1149.0	-958.5
59	0.00	1.96	0.00	0.99	10.60	85.64	10.67	288.40	0.1927	-992.0	-758.8
60	0.00	0.89	0.00	0.45	11.45	85.64	10.67	292.53	0.1974	-745.0	-613.9
61	0.00	2.31	0.00	1.17	13.35	85.69	10.72	300.92	0.2120	-827.0	-738.7
62	0.00	3.83	0.00	1.94	12.08	85.64	10.67	295.50	0.2015	-806.0	-631.5
63	0.00	1.87	0.00	0.95	15.15	85.65	10.69	307.94	0.2280	315.0	277.3
64	0.00	0.80	0.00	0.41	13.51	85.57	10.61	301.83	0.2116	-926.0	-820.8
65	0.00	3.83	0.00	1.94	13.63	85.42	10.45	302.70	0.2105	-934.0	-829.0
66	0.00	1.34	0.00	0.68	14.33	85.39	10.42	305.56	0.2165	-746.0	-550.1
67	0.00	1.87	0.00	0.95	15.89	85.47	10.50	310.96	0.2332	615.0	506.5
68	0.00	4.10	0.00	2.07	12.39	85.27	10.31	297.67	0.1982	-811.0	-691.5
69	0.00	1.42	0.00	0.72	11.58	85.15	10.18	294.09	0.1905	-932.0	-749.3
70	0.00	1.34	0.00	0.68	13.94	85.25	10.28	304.38	0.2108	-908.0	-666.0
71	0.00	7.12	0.00	3.59	11.82	85.03	10.06	295.51	0.1904	-963.0	-851.6
72	3.38	60.71	1.72	30.82	14.95	84.85	9.88	309.33	0.2154	-1205.0	-267.9
73	4.54	-72.00	2.30	-72.00	14.62	84.83	9.87	308.11	0.2117	-1131.1	999999
74	0.00	2.05	0.00	1.04	17.06	84.90	9.93	316.25	0.2394	-10.0	-71.7
75	0.00	1.42	0.00	0.72	16.07	82.43	7.46	321.04	0.1994	-839.0	-736.4
76	0.00	2.23	0.00	1.12	15.83	82.20	7.23	321.11	0.1938	-775.0	-595.9

	Proj. U	- Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	- Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	- Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	- Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	- Heliographic latitude B; positive: North, negative: South
	L	- Heliographic longitude L
	LCM	- Longitudinal distance from the Sun's central meridian
	Pos. angle	- Position angle
	r	- Distance from the centre of Sun's disc in terms of Sun's radius
	MU	- Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	- Mean magnetic field within the penumbra contour averaged the pixel values with sign.
