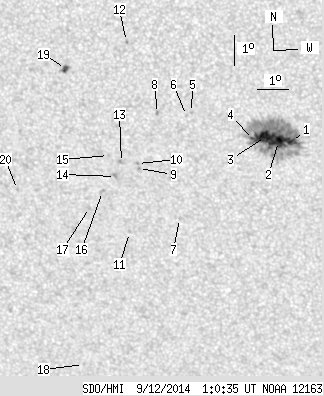

SDO HMI 2014-09-12 01:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.89 | 187.48 | 23.91 | 102.36 | -15.90 | 65.96 | -9.01 | 159.07 | 0.4222 | 538.2 | 324.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-12 01:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.61 | 162.29 | 3.05 | 88.33 | -15.89 | 67.22 | -7.75 | 161.69 | 0.4146 | 970.3 | 452.2 | |
| 16.65 | -1.00 | 9.07 | -1.00 | -15.90 | 66.81 | -8.16 | 160.79 | 0.4168 | 1094.3 | 999999 | |
| 17.27 | -1.00 | 9.40 | -1.00 | -15.74 | 66.40 | -8.57 | 159.78 | 0.4166 | 1225.1 | 999999 | |
| 1.96 | -1.00 | 1.07 | -1.00 | -15.85 | 66.02 | -8.95 | 159.04 | 0.4203 | 832.2 | 999999 | |
| 0.00 | 1.51 | 0.00 | 0.83 | -15.01 | 64.09 | -10.88 | 154.17 | 0.4202 | 740.0 | 544.9 | |
| 0.00 | 0.98 | 0.00 | 0.53 | -15.11 | 63.92 | -11.05 | 153.94 | 0.4228 | 553.0 | 426.2 | |
| 0.00 | 1.42 | 0.00 | 0.80 | -18.53 | 63.49 | -11.48 | 156.42 | 0.4738 | 724.0 | 499.6 | |
| 0.00 | 1.51 | 0.00 | 0.83 | -15.07 | 63.00 | -11.97 | 152.03 | 0.4288 | -747.0 | -637.1 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -16.89 | 62.27 | -12.70 | 152.62 | 0.4592 | -762.0 | -622.8 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -16.73 | 62.25 | -12.72 | 152.41 | 0.4571 | -953.0 | -739.0 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -19.04 | 61.81 | -13.15 | 153.94 | 0.4916 | 719.0 | 597.6 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -12.76 | 62.14 | -12.83 | 147.45 | 0.4041 | 798.0 | 688.0 | |
| 0.00 | 1.96 | 0.00 | 1.09 | -16.71 | 61.73 | -13.23 | 151.45 | 0.4606 | -804.0 | -710.0 | |
| 0.00 | 2.31 | 0.00 | 1.30 | -17.18 | 61.50 | -13.46 | 151.54 | 0.4686 | -1016.0 | -811.9 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -16.49 | 61.33 | -13.64 | 150.48 | 0.4607 | -775.0 | -656.8 | |
| 0.00 | 2.05 | 0.00 | 1.15 | -17.69 | 61.04 | -13.93 | 151.27 | 0.4789 | -822.0 | -663.9 | |
| 0.00 | 1.87 | 0.00 | 1.06 | -18.24 | 60.57 | -14.40 | 151.04 | 0.4896 | -544.0 | -509.1 | |
| 0.00 | 0.62 | 0.00 | 0.37 | -23.64 | 59.81 | -15.15 | 154.82 | 0.5651 | 576.0 | 387.9 | |
| 2.40 | 4.99 | 1.32 | 2.74 | -13.69 | 60.14 | -14.83 | 144.87 | 0.4339 | -1071.8 | -721.0 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -17.72 | 58.25 | -16.72 | 146.69 | 0.5011 | -623.0 | -445.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
