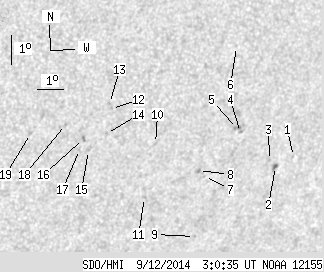

SDO HMI 2014-09-12 03:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.16 | 24.66 | 0.81 | 16.27 | -19.22 | 106.02 | 32.15 | 229.47 | 0.6617 | 65.2 | 124.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-12 03:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.44 | -19.94 | 110.65 | 36.78 | 232.41 | 0.7126 | 522.0 | 463.0 | |
| 1.16 | 3.38 | 0.81 | 2.37 | -20.22 | 110.00 | 36.14 | 231.61 | 0.7084 | 710.0 | 500.3 | |
| 0.00 | 0.89 | 0.00 | 0.62 | -19.99 | 109.71 | 35.84 | 231.65 | 0.7039 | 567.0 | 497.4 | |
| 0.00 | 1.25 | 0.00 | 0.84 | -18.95 | 108.31 | 34.44 | 231.83 | 0.6827 | 663.0 | 546.9 | |
| 0.00 | 2.85 | 0.00 | 1.92 | -18.80 | 108.16 | 34.29 | 231.88 | 0.6801 | 747.0 | 651.2 | |
| 0.00 | 0.89 | 0.00 | 0.58 | -16.05 | 107.53 | 33.67 | 234.85 | 0.6539 | 555.0 | 398.6 | |
| 0.00 | 0.71 | 0.00 | 0.48 | -20.34 | 107.25 | 33.38 | 229.30 | 0.6827 | 552.0 | 539.1 | |
| 0.00 | 1.69 | 0.00 | 1.14 | -20.12 | 106.96 | 33.09 | 229.33 | 0.6782 | 754.0 | 650.4 | |
| 0.00 | 0.71 | 0.00 | 0.49 | -22.40 | 107.39 | 33.52 | 227.05 | 0.6999 | 627.0 | 533.1 | |
| 0.00 | 1.34 | 0.00 | 0.87 | -19.08 | 105.10 | 31.23 | 228.98 | 0.6517 | 514.0 | 392.3 | |
| 0.00 | 0.98 | 0.00 | 0.65 | -20.90 | 105.09 | 31.22 | 226.80 | 0.6665 | 581.0 | 436.3 | |
| 0.00 | 1.07 | 0.00 | 0.67 | -17.78 | 103.22 | 29.35 | 228.87 | 0.6220 | -576.0 | -439.9 | |
| 0.00 | 1.07 | 0.00 | 0.67 | -17.61 | 103.12 | 29.25 | 228.99 | 0.6195 | -660.0 | -496.6 | |
| 0.00 | 1.25 | 0.00 | 0.79 | -18.61 | 103.19 | 29.32 | 227.80 | 0.6288 | -606.0 | -477.5 | |
| 0.00 | 0.98 | 0.00 | 0.62 | -19.14 | 102.64 | 28.77 | 226.61 | 0.6279 | -559.0 | -431.2 | |
| 0.00 | 1.96 | 0.00 | 1.24 | -18.72 | 102.37 | 28.51 | 226.87 | 0.6216 | -819.0 | -690.6 | |
| 0.00 | 0.98 | 0.00 | 0.62 | -19.09 | 102.30 | 28.43 | 226.34 | 0.6241 | -693.0 | -579.6 | |
| 0.00 | 0.53 | 0.00 | 0.33 | -18.21 | 101.63 | 27.76 | 226.77 | 0.6096 | -792.0 | -653.3 | |
| 0.00 | 1.51 | 0.00 | 0.93 | -18.43 | 100.42 | 26.55 | 225.22 | 0.5996 | -725.0 | -522.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
