group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
12158	189.15	1008.03	97.95	520.97	15.97	87.65	14.33	302.97	0.2864	617.8	287.0

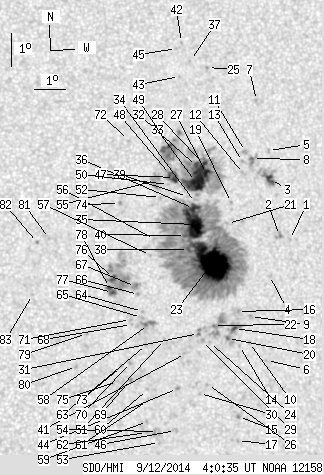

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2014-09-12 04:00:35 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0.00	1.78	0.00	0.93	15.95	90.66	17.34	298.70	0.3281	780.0	562.8
2	0.00	3.56	0.00	1.86	16.09	90.34	17.02	299.48	0.3245	884.0	821.7
3	4.81	17.81	2.53	9.36	17.81	90.21	16.89	304.28	0.3361	999.3	604.9
4	0.00	1.96	0.00	1.02	14.88	89.91	16.59	296.56	0.3099	-640.0	-483.5
5	0.00	1.60	0.00	0.85	18.70	90.23	16.91	306.48	0.3442	669.0	501.7
6	0.00	1.07	0.00	0.55	12.31	89.62	16.31	288.76	0.2910	-859.0	-690.3
7	0.00	1.51	0.00	0.80	20.26	90.00	16.68	310.52	0.3557	-726.0	-496.8
8	0.71	7.04	0.37	3.70	18.47	89.67	16.35	306.77	0.3348	798.6	715.7
9	0.00	1.78	0.00	0.92	13.66	89.20	15.88	293.63	0.2915	-640.0	-525.2
10	0.00	1.34	0.00	0.69	12.87	89.11	15.80	291.15	0.2858	-844.0	-602.3
11	0.00	2.67	0.00	1.40	18.70	89.46	16.15	307.65	0.3341	711.0	601.1
12	0.00	2.05	0.00	1.07	18.02	89.33	16.01	306.15	0.3263	786.0	725.1
13	0.00	1.78	0.00	0.93	18.39	89.34	16.02	307.10	0.3297	820.0	635.2
14	0.00	0.89	0.00	0.46	12.79	88.79	15.47	291.24	0.2803	-611.0	-518.4
15	0.00	1.51	0.00	0.78	10.64	88.63	15.31	283.79	0.2684	-961.0	-796.9
16	0.00	2.05	0.00	1.06	13.82	88.79	15.47	294.67	0.2863	805.0	663.2
17	0.00	1.25	0.00	0.64	9.92	88.56	15.24	281.15	0.2651	-679.0	-600.9
18	2.14	17.90	1.10	9.23	13.31	88.66	15.34	293.14	0.2812	-868.6	-545.6
19	0.00	1.42	0.00	0.74	17.15	88.86	15.54	304.57	0.3122	719.0	585.8
20	0.62	-18.00	0.32	-18.00	13.01	88.42	15.10	292.43	0.2758	-934.7	999999
21	0.00	1.51	0.00	0.79	16.51	88.67	15.35	303.07	0.3043	653.0	446.4
22	0.36	18.26	0.18	9.40	13.42	87.99	14.67	294.37	0.2717	724.8	-180.4
23	74.18	589.18	38.35	304.41	15.34	88.09	14.77	300.49	0.2867	1580.6	514.9
24	0.00	1.25	0.00	0.64	12.91	87.83	14.51	292.79	0.2662	-738.0	-595.6
25	0.00	1.34	0.00	0.71	21.33	88.47	15.15	315.47	0.3487	750.0	643.3
26	0.00	1.34	0.00	0.68	11.64	87.70	14.38	288.32	0.2573	-815.0	-665.9
27	7.21	181.94	3.76	94.66	18.06	88.12	14.80	308.28	0.3107	1001.3	210.0
28	3.56	-27.00	1.86	-27.00	18.37	88.05	14.73	309.22	0.3128	850.3	999999
29	0.00	1.78	0.00	0.91	12.98	87.61	14.29	293.32	0.2632	-827.0	-723.2
30	0.00	1.34	0.00	0.68	11.38	87.43	14.11	287.60	0.2518	-635.0	-481.5
31	0.36	4.10	0.18	2.10	13.20	87.50	14.18	294.24	0.2627	-703.8	-411.5
32	6.14	-27.00	3.20	-27.00	18.29	87.81	14.49	309.43	0.3089	922.3	999999
33	29.92	-27.00	15.55	-27.00	17.83	87.74	14.42	308.34	0.3035	1184.2	999999
34	0.00	0.45	0.00	0.23	17.19	87.68	14.36	306.66	0.2968	400.0	562.6
35	32.50	-23.00	16.82	-23.00	16.52	87.60	14.28	304.88	0.2895	1239.9	999999
36	6.77	-23.00	3.51	-23.00	17.01	87.60	14.29	306.29	0.2940	918.8	999999
37	0.00	0.36	0.00	0.19	21.57	87.92	14.60	316.97	0.3451	674.0	568.5
38	2.23	-23.00	1.15	-23.00	15.76	87.35	14.03	303.03	0.2795	1033.1	999999
39	0.00	1.16	0.00	0.60	17.38	87.44	14.12	307.64	0.2953	841.0	653.1
40	1.25	-23.00	0.64	-23.00	16.19	87.28	13.96	304.46	0.2823	1130.1	999999
41	0.00	2.05	0.00	1.05	12.60	87.05	13.73	292.70	0.2522	-862.0	-700.4
42	0.00	1.16	0.00	0.61	22.14	87.68	14.36	318.61	0.3490	644.0	476.7
43	0.00	0.98	0.00	0.51	21.08	87.51	14.19	316.71	0.3350	761.0	629.4
44	0.00	1.87	0.00	0.95	11.55	86.74	13.42	289.04	0.2416	-1074.0	-849.5
45	0.00	0.98	0.00	0.52	21.96	87.50	14.18	318.59	0.3449	740.0	526.3
46	0.00	2.67	0.00	1.36	10.28	86.62	13.30	283.98	0.2343	-707.0	-683.3
47	5.52	-27.00	2.86	-27.00	17.97	87.06	13.74	309.99	0.2963	1073.6	999999
48	2.58	-27.00	1.34	-27.00	18.07	86.94	13.62	310.49	0.2957	981.5	999999
49	1.87	-27.00	0.97	-27.00	18.93	86.98	13.66	312.67	0.3051	-1118.1	999999
50	0.00	0.80	0.00	0.41	17.76	86.85	13.53	309.84	0.2915	925.0	689.8
51	0.00	0.98	0.00	0.50	13.05	86.41	13.09	295.30	0.2451	-757.0	-603.8
52	0.00	0.98	0.00	0.51	17.37	86.56	13.24	309.32	0.2838	832.0	609.0
53	0.00	0.89	0.00	0.45	9.94	86.10	12.78	282.93	0.2246	-823.0	-717.8
54	0.00	5.52	0.00	2.81	10.27	86.05	12.73	284.44	0.2249	-642.0	-840.2
55	0.00	11.58	0.00	5.99	17.90	86.44	13.12	311.04	0.2876	183.0	316.1
56	0.00	2.67	0.00	1.37	16.10	86.27	12.95	306.08	0.2677	293.0	177.3
57	0.00	1.07	0.00	0.55	15.61	86.11	12.79	304.85	0.2611	823.0	589.1
58	0.00	8.82	0.00	4.50	13.52	85.92	12.60	297.87	0.2411	-793.0	-800.8
59	0.00	1.69	0.00	0.86	10.58	85.75	12.43	286.11	0.2212	-787.0	-603.1
60	0.00	1.07	0.00	0.54	11.55	85.79	12.47	290.22	0.2265	-939.0	-755.7
61	0.00	1.51	0.00	0.77	11.22	85.78	12.46	288.83	0.2246	-700.0	-668.9
62	0.00	1.16	0.00	0.59	10.25	85.70	12.38	284.69	0.2192	-824.0	-692.8
63	0.00	1.34	0.00	0.68	12.91	85.83	12.51	295.71	0.2354	-922.0	-741.8
64	0.00	0.71	0.00	0.36	13.92	85.76	12.44	299.66	0.2416	-756.0	-655.1
65	0.00	1.60	0.00	0.82	13.73	85.71	12.39	299.06	0.2396	-789.0	-723.0
66	0.00	1.16	0.00	0.59	14.44	85.66	12.34	301.74	0.2444	598.0	477.6
67	0.00	6.23	0.00	3.18	14.68	85.58	12.26	302.77	0.2453	16.0	107.1
68	0.00	0.89	0.00	0.45	13.53	85.38	12.07	298.90	0.2332	-878.0	-733.1
69	0.00	1.78	0.00	0.90	11.87	85.27	11.95	292.33	0.2201	-1114.0	-929.0
70	0.00	1.25	0.00	0.63	12.38	85.29	11.98	294.46	0.2237	-949.0	-840.1
71	0.00	1.25	0.00	0.64	13.68	85.36	12.04	299.53	0.2340	-925.0	-727.9
72	0.00	1.25	0.00	0.65	19.15	85.65	12.33	316.02	0.2919	669.0	420.9
73	0.00	1.42	0.00	0.72	12.27	85.01	11.69	294.47	0.2184	-901.0	-712.9
74	0.00	1.42	0.00	0.73	17.23	85.22	11.90	311.77	0.2653	959.0	822.8
75	0.00	0.71	0.00	0.36	11.82	84.86	11.54	292.77	0.2133	-856.0	-780.0
76	2.85	57.17	1.45	29.17	14.94	84.89	11.57	305.15	0.2380	-1146.5	-295.2
77	2.23	-76.00	1.13	-76.00	14.52	84.83	11.51	303.74	0.2334	-1011.0	999999
78	1.34	-76.00	0.68	-76.00	14.67	84.75	11.43	304.49	0.2336	-1245.5	999999
79	0.00	1.60	0.00	0.81	13.29	83.95	10.63	300.91	0.2102	-835.0	-711.0
80	0.00	1.34	0.00	0.67	12.30	83.59	10.27	297.35	0.1970	-954.0	-782.7
81	0.00	1.16	0.00	0.59	16.21	82.92	9.60	314.54	0.2256	-712.0	-609.2
82	0.00	1.16	0.00	0.59	16.10	82.53	9.21	315.31	0.2196	-768.0	-692.6
83	0.00	1.16	0.00	0.59	14.52	82.30	8.98	310.28	0.1990	-826.0	-640.5

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
