Sunspot Group 12158

group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

12158	188.35	1030.60	97.82	534.02	16.00	87.67	14.90	302.14	0.2946	622.0	272.7

previous or next observation for the same group / back to the solar disc

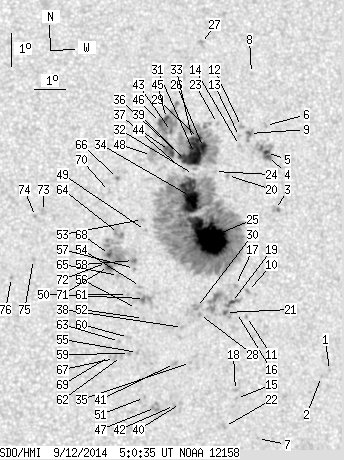

SDO HMI 2014-09-12 05:00:35 UT
No observation available

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

1	0.00	0.98	0.00	0.51	11.14	91.68	18.91	283.21	0.3281	-728.0	-624.0
2	0.00	1.07	0.00	0.56	10.97	91.41	18.64	282.84	0.3233	-608.0	-547.7
3	0.00	4.90	0.00	2.57	16.09	90.32	17.55	298.83	0.3321	907.0	790.7
4	1.87	19.59	0.99	10.33	17.72	90.21	17.44	303.28	0.3430	1008.9	586.9
5	2.14	-4.00	1.13	-4.00	17.85	90.19	17.42	303.62	0.3437	936.2	999999
6	0.00	2.05	0.00	1.08	18.68	90.25	17.48	305.61	0.3514	611.0	464.9
7	0.00	0.71	0.00	0.37	9.18	89.25	16.48	277.91	0.2840	-647.0	-494.4
8	0.00	1.25	0.00	0.66	20.30	89.96	17.19	309.83	0.3625	-591.0	-367.5
9	0.71	6.15	0.38	3.24	18.45	89.69	16.92	305.86	0.3421	834.9	742.6
10	0.00	1.87	0.00	0.97	13.63	89.20	16.43	292.93	0.2998	-649.0	-556.3
11	0.00	1.07	0.00	0.55	12.88	89.12	16.34	290.60	0.2944	-744.0	-582.3
12	0.00	2.14	0.00	1.13	18.67	89.45	16.68	306.78	0.3409	905.0	673.0
13	0.00	1.51	0.00	0.80	18.37	89.35	16.58	306.17	0.3369	748.0	651.9
14	0.00	1.96	0.00	1.03	18.09	89.32	16.55	305.51	0.3341	894.0	705.7
15	0.00	0.80	0.00	0.41	10.41	88.65	15.87	282.57	0.2768	-874.0	-705.2
16	0.00	1.16	0.00	0.60	13.01	88.80	16.03	291.36	0.2902	-571.0	-386.1
17	0.00	2.23	0.00	1.15	13.83	88.83	16.06	293.98	0.2952	947.0	726.7
18	0.00	1.69	0.00	0.87	10.65	88.63	15.85	283.44	0.2773	-919.0	-793.0
19	2.05	27.43	1.06	14.17	13.32	88.66	15.89	292.53	0.2897	-808.7	-266.7
20	0.00	1.51	0.00	0.79	17.19	88.84	16.07	303.86	0.3198	604.0	427.8
21	0.71	5.61	0.37	2.90	13.02	88.45	15.68	291.79	0.2848	-944.2	-658.3
22	0.00	2.58	0.00	1.33	9.58	88.22	15.45	279.77	0.2677	-893.0	-538.7
23	0.00	1.69	0.00	0.89	18.79	88.66	15.89	308.31	0.3318	622.0	470.0
24	0.00	1.60	0.00	0.84	17.33	88.43	15.65	304.87	0.3154	566.0	415.0
25	76.77	596.17	39.78	308.75	15.32	88.10	15.33	299.59	0.2944	1594.1	505.5
26	6.95	200.92	3.63	104.79	18.07	88.13	15.36	307.35	0.3182	992.6	208.7
27	0.00	4.27	0.00	2.26	21.28	88.39	15.62	314.55	0.3535	713.0	545.0
28	0.00	1.69	0.00	0.87	12.99	87.61	14.84	292.66	0.2717	-804.0	-721.6
29	4.63	-26.00	2.42	-26.00	18.35	87.99	15.22	308.32	0.3190	887.8	999999
30	0.00	6.50	0.00	3.35	13.20	87.53	14.76	293.51	0.2717	-528.0	-447.6
31	27.25	-26.00	14.20	-26.00	17.90	87.82	15.05	307.42	0.3125	1159.3	999999
32	0.00	1.07	0.00	0.56	17.26	87.73	14.96	305.82	0.3054	672.0	549.5
33	1.96	-26.00	1.02	-26.00	18.33	87.79	15.02	308.60	0.3162	825.9	999999
34	42.66	-25.00	22.13	-25.00	16.59	87.58	14.81	304.19	0.2974	1189.5	999999
35	0.00	1.16	0.00	0.59	11.55	87.24	14.47	287.87	0.2584	-955.0	-713.2
36	3.03	-26.00	1.58	-26.00	17.69	87.51	14.74	307.41	0.3064	1241.1	999999
37	0.00	0.89	0.00	0.46	17.39	87.42	14.64	306.74	0.3024	954.0	764.1
38	0.00	1.34	0.00	0.69	12.61	87.05	14.27	292.03	0.2607	-931.0	-800.6
39	2.76	-26.00	1.44	-26.00	17.82	87.39	14.62	307.97	0.3060	1064.0	999999
40	0.00	1.69	0.00	0.86	10.32	86.86	14.09	283.47	0.2474	-712.0	-546.2
41	0.00	2.85	0.00	1.46	11.53	86.73	13.96	288.36	0.2502	-1027.0	-808.3
42	0.00	1.69	0.00	0.86	10.26	86.67	13.90	283.40	0.2441	-920.0	-796.0
43	0.62	-26.00	0.32	-26.00	18.60	87.13	14.35	310.49	0.3103	675.0	999999
44	5.70	-26.00	2.96	-26.00	18.02	87.01	14.24	309.18	0.3031	1087.0	999999
45	1.96	-26.00	1.02	-26.00	19.00	87.00	14.23	311.76	0.3129	-1088.7	999999
46	2.40	-26.00	1.25	-26.00	18.89	86.79	14.02	311.86	0.3091	-846.6	999999
47	0.00	6.41	0.00	3.27	10.22	86.07	13.30	283.72	0.2340	-674.0	-826.7
48	0.00	10.78	0.00	5.58	17.88	86.41	13.64	309.95	0.2940	190.0	316.9
49	0.00	1.34	0.00	0.69	15.59	86.05	13.28	303.87	0.2676	654.0	550.7
50	0.00	11.13	0.00	5.69	13.53	85.89	13.12	297.05	0.2488	-994.0	-779.2
51	0.00	1.07	0.00	0.54	10.53	85.74	12.96	285.35	0.2298	-849.0	-707.0
52	0.00	0.89	0.00	0.45	12.92	85.82	13.05	294.90	0.2437	-963.0	-811.2
53	0.00	1.51	0.00	0.78	15.93	85.97	13.20	305.09	0.2696	180.0	166.2
54	0.00	1.42	0.00	0.73	13.90	85.78	13.01	298.57	0.2499	-787.0	-618.8
55	0.00	1.42	0.00	0.73	11.90	85.58	12.81	291.23	0.2337	-937.0	-767.1
56	0.00	0.89	0.00	0.45	13.23	85.62	12.84	296.40	0.2427	-828.0	-581.3
57	0.00	1.07	0.00	0.55	14.45	85.62	12.85	300.82	0.2519	618.0	504.5
58	0.00	2.49	0.00	1.28	14.69	85.61	12.83	301.70	0.2537	527.0	330.2
59	0.00	1.34	0.00	0.68	11.88	85.32	12.55	291.49	0.2296	-1107.0	-927.9
60	0.00	2.67	0.00	1.36	12.36	85.32	12.55	293.48	0.2324	-918.0	-665.3
61	0.00	1.34	0.00	0.68	13.67	85.35	12.58	298.47	0.2419	-905.0	-748.1
62	0.00	2.14	0.00	1.09	11.79	85.07	12.30	291.51	0.2251	-881.0	-699.0
63	0.00	0.98	0.00	0.50	12.25	85.03	12.25	293.47	0.2272	-924.0	-759.2
64	0.00	6.59	0.00	3.38	15.53	85.18	12.40	305.37	0.2550	591.0	447.9
65	0.00	1.87	0.00	0.95	14.25	85.10	12.33	301.09	0.2428	-793.0	-596.5
66	0.00	1.87	0.00	0.96	17.21	85.26	12.48	310.42	0.2725	1031.0	852.5
67	0.00	2.49	0.00	1.27	11.74	84.84	12.07	291.61	0.2213	-907.0	-687.1
68	1.60	48.45	0.82	24.76	14.90	84.85	12.08	303.90	0.2447	-1216.6	-484.4
69	0.00	0.98	0.00	0.50	11.80	84.69	11.92	292.12	0.2192	-830.0	-664.4
70	0.00	1.25	0.00	0.64	16.82	84.97	12.20	309.89	0.2648	-669.0	-535.9
71	1.96	-68.00	1.00	-68.00	14.53	84.80	12.03	302.71	0.2408	-1052.9	999999
72	0.62	-68.00	0.32	-68.00	14.66	84.74	11.97	303.27	0.2411	-1277.1	999999
73	0.00	3.12	0.00	1.59	16.26	82.82	10.05	313.43	0.2317	-648.0	-671.1
74	0.00	1.16	0.00	0.59	16.11	82.56	9.79	313.68	0.2268	-908.0	-735.2
75	0.00	1.34	0.00	0.68	14.80	82.43	9.66	309.41	0.2109	-832.0	-673.9
76	0.00	0.80	0.00	0.40	14.27	81.71	8.94	309.43	0.1958	-871.0	-761.3

	Proj. U	- Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	- Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	- Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	- Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	- Heliographic latitude B; positive: North, negative: South
	L	- Heliographic longitude L
	LCM	- Longitudinal distance from the Sun's central meridian
	Pos. angle	- Position angle
	r	- Distance from the centre of Sun's disc in terms of Sun's radius
	MU	- Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	- Mean magnetic field within the penumbra contour averaged the pixel values with sign.
