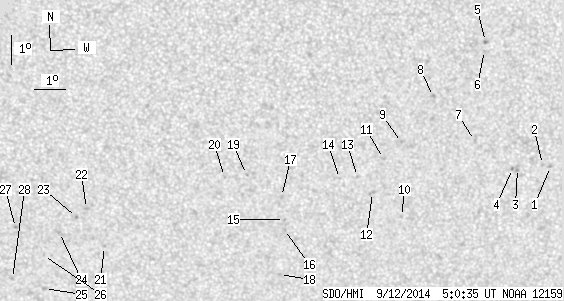

SDO HMI 2014-09-12 05:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 36.69 | 0.00 | 21.08 | -22.39 | 76.65 | 3.88 | 187.56 | 0.5085 | 217.1 | 180.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-12 05:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.25 | 0.00 | 0.72 | -21.68 | 84.87 | 12.10 | 202.04 | 0.5210 | 755.0 | 638.5 | |
| 0.00 | 1.25 | 0.00 | 0.72 | -21.60 | 84.60 | 11.82 | 201.65 | 0.5184 | 467.0 | 366.0 | |
| 0.00 | 2.67 | 0.00 | 1.54 | -21.72 | 83.78 | 11.00 | 200.20 | 0.5157 | 733.0 | 645.2 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -21.71 | 83.61 | 10.84 | 199.92 | 0.5147 | 873.0 | 750.2 | |
| 0.00 | 1.51 | 0.00 | 0.84 | -17.39 | 82.46 | 9.68 | 201.15 | 0.4468 | 871.0 | 692.1 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -17.68 | 82.44 | 9.67 | 200.86 | 0.4511 | 463.0 | 467.8 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -20.72 | 82.29 | 9.52 | 198.32 | 0.4941 | 662.0 | 501.2 | |
| 0.00 | 1.42 | 0.00 | 0.80 | -19.19 | 80.87 | 8.10 | 196.69 | 0.4654 | -721.0 | -611.4 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -20.74 | 79.91 | 7.14 | 193.94 | 0.4844 | 828.0 | 724.7 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -23.30 | 80.04 | 7.27 | 192.90 | 0.5224 | 634.0 | 499.0 | |
| 0.00 | 1.78 | 0.00 | 1.01 | -21.27 | 79.35 | 6.58 | 192.62 | 0.4904 | 791.0 | 538.5 | |
| 0.00 | 2.67 | 0.00 | 1.53 | -22.44 | 79.04 | 6.27 | 191.53 | 0.5068 | 780.0 | 589.3 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -21.88 | 78.52 | 5.75 | 190.83 | 0.4969 | 767.0 | 581.4 | |
| 0.00 | 1.34 | 0.00 | 0.76 | -21.94 | 77.94 | 5.17 | 189.73 | 0.4963 | 617.0 | 487.1 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -23.35 | 76.18 | 3.41 | 186.12 | 0.5137 | 761.0 | 689.8 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -23.70 | 76.19 | 3.41 | 186.06 | 0.5190 | 571.0 | 477.4 | |
| 0.00 | 1.60 | 0.00 | 0.92 | -22.55 | 76.06 | 3.29 | 186.09 | 0.5014 | 674.0 | 491.1 | |
| 0.00 | 1.25 | 0.00 | 0.73 | -25.30 | 76.06 | 3.29 | 185.51 | 0.5424 | 523.0 | 453.5 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -21.77 | 74.90 | 2.13 | 184.07 | 0.4882 | 553.0 | 571.9 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -21.84 | 74.19 | 1.42 | 182.70 | 0.4885 | 568.0 | 420.4 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -24.29 | 70.24 | -2.53 | 175.59 | 0.5265 | -715.0 | -568.9 | |
| 0.00 | 1.69 | 0.00 | 0.97 | -22.95 | 69.67 | -3.10 | 174.35 | 0.5073 | -793.0 | -617.6 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -23.27 | 69.34 | -3.43 | 173.81 | 0.5126 | -918.0 | -803.9 | |
| 0.00 | 1.60 | 0.00 | 0.93 | -23.80 | 68.76 | -4.01 | 172.92 | 0.5215 | -719.0 | -580.4 | |
| 0.00 | 1.96 | 0.00 | 1.16 | -25.81 | 68.19 | -4.58 | 172.48 | 0.5519 | -696.0 | -512.3 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -24.62 | 68.20 | -4.57 | 172.18 | 0.5346 | -621.0 | -500.9 | |
| 0.00 | 1.25 | 0.00 | 0.72 | -23.64 | 67.31 | -5.46 | 170.35 | 0.5222 | -872.0 | -687.4 | |
| 0.00 | 1.07 | 0.00 | 0.63 | -25.46 | 67.13 | -5.64 | 170.66 | 0.5491 | -758.0 | -573.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
