groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

12158 181.51 988.91 94.91 516.40 15.97 87.66 16.56 299.66 0.3182 675.7 303.4


previous   or   next   observation for the same group / back to the solar disc

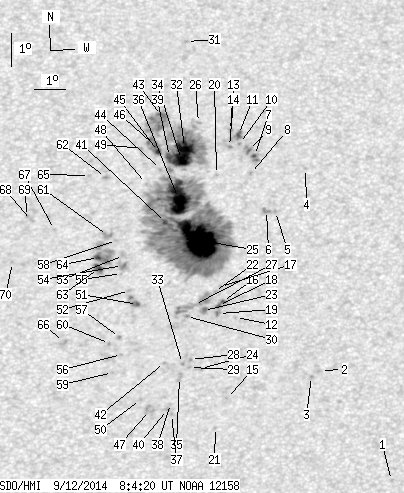

SDO HMI 2014-09-12 08:04:20 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 1.69 0.00 0.91 7.74 93.87 22.77 272.78 0.3856 -665.0 -529.1
2 0.00 1.07 0.00 0.57 11.17 91.76 20.66 282.48 0.3561 -675.0 -553.1
3 0.00 0.98 0.00 0.52 11.00 91.45 20.35 282.14 0.3508 -714.0 -661.1
4 0.00 1.07 0.00 0.57 17.32 91.86 20.76 298.40 0.3864 -530.0 -413.2
5 0.00 1.51 0.00 0.80 16.05 90.71 19.61 296.43 0.3618 740.0 626.8
6 0.00 4.19 0.00 2.22 16.10 90.41 19.32 296.85 0.3578 807.0 769.7
7 1.16 5.88 0.62 3.13 17.79 90.19 19.10 301.36 0.3664 954.7 737.7
8 0.00 1.43 0.00 0.76 17.25 90.00 18.91 300.24 0.3597 729.0 541.6
9 0.62 5.08 0.33 2.70 17.95 90.01 18.92 301.97 0.3651 861.1 707.5
10 0.00 1.25 0.00 0.66 18.18 89.73 18.64 302.87 0.3631 827.0 679.7
11 2.23 7.57 1.18 4.02 18.46 89.73 18.64 303.54 0.3653 766.3 713.4
12 0.00 0.62 0.00 0.33 12.89 89.11 18.01 289.13 0.3204 -555.0 -453.4
13 0.00 1.96 0.00 1.04 18.59 89.48 18.38 304.19 0.3629 768.0 610.5
14 0.00 2.14 0.00 1.13 18.10 89.39 18.30 303.11 0.3578 907.0 724.3
15 0.00 1.07 0.00 0.56 10.45 88.65 17.56 281.79 0.3044 -810.0 -683.8
16 0.89 4.72 0.46 2.46 13.39 88.72 17.63 290.98 0.3169 -774.1 -680.4
17 0.00 1.16 0.00 0.60 13.85 88.69 17.60 292.38 0.3189 495.0 474.2
18 1.07 -16.00 0.56 -16.00 13.27 88.58 17.49 290.76 0.3142 -875.2 999999
19 0.00 2.94 0.00 1.53 13.03 88.56 17.47 290.04 0.3127 -855.0 -691.1
20 0.00 0.98 0.00 0.52 17.26 88.87 17.77 301.68 0.3440 556.0 410.2
21 0.00 1.25 0.00 0.65 9.59 88.25 17.15 279.11 0.2958 -687.0 -501.3
22 0.00 1.43 0.00 0.74 13.70 88.48 17.39 292.16 0.3149 549.0 370.1
23 0.00 4.19 0.00 2.18 13.14 88.09 16.99 290.83 0.3058 -887.0 -732.6
24 0.00 1.78 0.00 0.92 11.39 87.87 16.78 285.36 0.2947 -631.0 -598.0
25 72.94 599.22 38.11 312.81 15.27 88.12 17.03 297.19 0.3190 1593.8 491.5
26 0.00 1.87 0.00 0.99 18.88 88.44 17.34 306.31 0.3516 582.0 469.6
27 0.00 27.79 0.00 14.44 13.33 87.81 16.71 291.71 0.3025 733.0 -68.0
28 0.00 1.43 0.00 0.74 11.67 87.57 16.47 286.54 0.2910 -735.0 -634.4
29 0.00 1.16 0.00 0.60 11.43 87.52 16.43 285.77 0.2893 -790.0 -629.5
30 0.00 2.14 0.00 1.11 12.98 87.52 16.43 290.88 0.2963 -748.0 -651.2
31 0.00 1.69 0.00 0.90 21.40 88.33 17.23 312.18 0.3738 695.0 527.6
32 16.65 153.90 8.76 80.92 18.13 87.89 16.80 305.25 0.3378 1013.6 398.9
33 0.00 1.43 0.00 0.74 11.56 87.30 16.21 286.38 0.2863 -911.0 -738.7
34 18.08 -32.00 9.49 -32.00 17.76 87.76 16.66 304.52 0.3329 1210.8 999999
35 0.00 4.54 0.00 2.35 11.14 87.18 16.09 285.03 0.2828 -680.0 -573.5
36 49.25 -25.00 25.74 -25.00 16.57 87.55 16.45 301.64 0.3203 1127.2 999999
37 0.00 1.07 0.00 0.55 10.03 86.87 15.77 281.31 0.2742 -721.0 -652.8
38 0.00 0.89 0.00 0.46 10.36 86.85 15.76 282.52 0.2748 -665.0 -538.8
39 2.14 -32.00 1.12 -32.00 17.87 87.37 16.28 305.37 0.3286 1039.5 999999
40 0.00 1.60 0.00 0.83 10.19 86.75 15.65 281.94 0.2726 -893.0 -797.8
41 2.40 -25.00 1.25 -25.00 15.86 87.06 15.97 300.30 0.3078 995.3 999999
42 0.00 0.80 0.00 0.41 11.61 86.73 15.63 287.04 0.2773 -836.0 -645.0
43 2.23 37.32 1.17 19.60 19.14 87.23 16.14 308.78 0.3383 -676.0 -139.5
44 0.00 1.43 0.00 0.74 17.48 87.04 15.94 304.86 0.3207 736.0 604.1
45 2.67 -32.00 1.40 -32.00 18.03 87.02 15.93 306.35 0.3254 1105.3 999999
46 1.16 -32.00 0.61 -32.00 18.19 86.94 15.85 306.89 0.3257 963.8 999999
47 0.00 8.55 0.00 4.39 10.18 86.17 15.08 282.26 0.2632 -786.0 -697.3
48 0.00 1.07 0.00 0.56 17.07 86.54 15.45 304.53 0.3104 631.0 441.1
49 0.00 1.69 0.00 0.88 18.15 86.47 15.38 307.53 0.3192 488.0 333.6
50 0.00 1.60 0.00 0.82 10.52 85.90 14.81 283.73 0.2599 -679.0 -569.8
51 1.07 7.75 0.55 3.99 13.39 85.97 14.88 294.04 0.2748 -844.3 -891.7
52 0.00 1.78 0.00 0.92 13.83 85.75 14.65 295.82 0.2741 -810.0 -589.9
53 0.00 3.65 0.00 1.88 14.90 85.63 14.53 299.52 0.2799 117.0 38.9
54 0.00 6.50 0.00 3.35 14.59 85.57 14.48 298.62 0.2768 291.0 159.8
55 0.00 0.62 0.00 0.32 14.35 85.52 14.43 297.90 0.2744 419.0 262.4
56 0.00 1.07 0.00 0.55 11.90 85.37 14.28 289.43 0.2571 -862.0 -724.9
57 0.00 1.60 0.00 0.82 12.41 85.34 14.24 291.38 0.2592 -965.0 -774.5
58 0.00 1.51 0.00 0.78 15.36 85.43 14.34 301.30 0.2807 578.0 416.9
59 0.00 0.89 0.00 0.46 11.36 85.06 13.96 287.73 0.2495 -667.0 -598.3
60 0.00 1.34 0.00 0.68 12.24 85.01 13.92 291.15 0.2531 -768.0 -734.6
61 0.00 5.34 0.00 2.75 15.52 85.15 14.06 302.27 0.2781 465.0 322.0
62 0.00 2.58 0.00 1.34 17.29 85.22 14.13 307.43 0.2948 879.0 662.3
63 4.10 37.50 2.10 19.29 14.53 84.80 13.70 299.63 0.2650 -1010.4 -450.3
64 2.85 -63.00 1.46 -63.00 14.86 84.82 13.72 300.72 0.2679 -1111.3 999999
65 0.00 1.25 0.00 0.64 17.37 84.71 13.61 308.62 0.2888 770.0 604.3
66 0.00 3.12 0.00 1.59 12.31 83.55 12.46 293.46 0.2308 -777.0 -692.9
67 0.00 1.43 0.00 0.73 15.75 83.46 12.37 306.22 0.2567 -668.0 -497.2
68 0.00 1.78 0.00 0.91 16.05 82.74 11.65 308.75 0.2499 -660.0 -553.9
69 0.00 1.16 0.00 0.59 16.17 82.62 11.53 309.44 0.2496 -820.0 -662.8
70 0.00 0.89 0.00 0.45 14.78 82.06 10.97 305.99 0.2284 -710.0 -636.4


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
