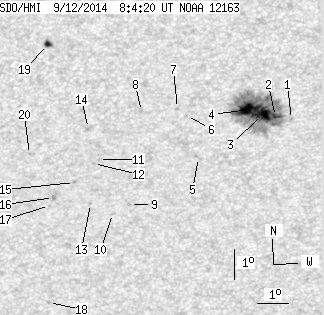

SDO HMI 2014-09-12 08:04:20 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.48 | 178.93 | 22.95 | 96.97 | -16.04 | 65.87 | -5.22 | 167.64 | 0.4067 | 600.5 | 346.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-12 08:04:20 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.43 | 0.00 | 0.77 | -16.07 | 67.64 | -3.45 | 171.68 | 0.4013 | 601.0 | 459.5 | |
| 3.56 | 152.92 | 1.92 | 82.61 | -15.98 | 67.14 | -3.95 | 170.45 | 0.4010 | 982.0 | 431.1 | |
| 17.81 | -2.00 | 9.63 | -2.00 | -15.91 | 66.73 | -4.36 | 169.45 | 0.4012 | 1151.2 | 999999 | |
| 18.26 | -2.00 | 9.86 | -2.00 | -15.75 | 66.30 | -4.80 | 168.34 | 0.4000 | 1253.4 | 999999 | |
| 0.00 | 2.94 | 0.00 | 1.61 | -17.36 | 64.67 | -6.43 | 165.57 | 0.4307 | 583.0 | 538.7 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -15.97 | 64.34 | -6.76 | 163.95 | 0.4109 | 585.0 | 491.4 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -15.75 | 64.06 | -7.04 | 163.16 | 0.4087 | 505.0 | 482.3 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -15.87 | 62.92 | -8.18 | 160.71 | 0.4161 | -712.0 | -606.0 | |
| 0.00 | 1.60 | 0.00 | 0.90 | -18.97 | 62.38 | -8.71 | 161.97 | 0.4647 | 550.0 | 344.7 | |
| 0.00 | 1.60 | 0.00 | 0.90 | -19.28 | 61.81 | -9.28 | 161.11 | 0.4721 | 579.0 | 470.9 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -17.48 | 61.47 | -9.63 | 159.03 | 0.4477 | -581.0 | -476.6 | |
| 0.00 | 0.62 | 0.00 | 0.35 | -17.62 | 61.30 | -9.80 | 158.82 | 0.4507 | -588.0 | -427.3 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -18.96 | 61.12 | -9.97 | 159.56 | 0.4710 | -585.0 | -464.5 | |
| 0.00 | 2.23 | 0.00 | 1.22 | -16.46 | 61.20 | -9.89 | 157.61 | 0.4344 | -683.0 | -589.0 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -18.26 | 60.65 | -10.45 | 158.10 | 0.4637 | -819.0 | -644.3 | |
| 0.00 | 1.96 | 0.00 | 1.10 | -18.78 | 59.93 | -11.16 | 157.22 | 0.4752 | -759.0 | -712.7 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -19.06 | 59.78 | -11.31 | 157.18 | 0.4800 | -492.0 | -438.7 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -22.38 | 59.49 | -11.61 | 159.28 | 0.5278 | 665.0 | 579.5 | |
| 2.85 | 4.45 | 1.54 | 2.41 | -13.74 | 60.04 | -11.06 | 152.36 | 0.4033 | -900.6 | -693.7 | |
| 0.00 | 0.62 | 0.00 | 0.35 | -17.37 | 59.25 | -11.84 | 154.66 | 0.4596 | 598.0 | 463.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
