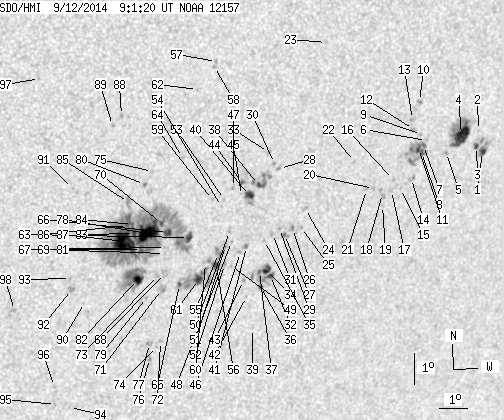

SDO HMI 2014-09-12 09:01:20 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 134.75 | 704.57 | 80.67 | 419.11 | -14.24 | 96.33 | 25.76 | 229.62 | 0.5539 | -67.4 | -65.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-12 09:01:20 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.85 | 10.33 | 1.84 | 6.68 | -12.43 | 105.66 | 35.08 | 240.77 | 0.6455 | 745.1 | 333.2 | |
| 0.00 | 0.89 | 0.00 | 0.57 | -11.74 | 105.40 | 34.83 | 241.54 | 0.6383 | 341.0 | 321.1 | |
| 1.87 | 5.43 | 1.20 | 3.50 | -12.25 | 105.40 | 34.83 | 240.83 | 0.6414 | 859.4 | 645.1 | |
| 22.09 | 42.75 | 14.08 | 27.21 | -11.82 | 104.78 | 34.20 | 240.99 | 0.6314 | 941.0 | 625.8 | |
| 0.00 | 1.51 | 0.00 | 0.96 | -12.36 | 104.29 | 33.72 | 239.88 | 0.6292 | 833.0 | 621.6 | |
| 0.00 | 2.32 | 0.00 | 1.45 | -11.92 | 103.49 | 32.92 | 239.90 | 0.6168 | 648.0 | 548.2 | |
| 1.07 | 32.24 | 0.67 | 20.21 | -12.07 | 103.40 | 32.83 | 239.61 | 0.6168 | 884.6 | 693.3 | |
| 1.42 | -7.00 | 0.90 | -7.00 | -12.29 | 103.36 | 32.78 | 239.26 | 0.6178 | 888.1 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.61 | -11.71 | 103.28 | 32.71 | 240.03 | 0.6130 | 719.0 | 588.7 | |
| 0.00 | 2.14 | 0.00 | 1.33 | -10.65 | 103.07 | 32.50 | 241.42 | 0.6035 | 842.0 | 679.3 | |
| 2.94 | -7.00 | 1.84 | -7.00 | -12.16 | 103.23 | 32.66 | 239.36 | 0.6153 | 1037.4 | 999999 | |
| 0.00 | 1.69 | 0.00 | 1.05 | -11.53 | 102.96 | 32.39 | 240.05 | 0.6080 | 866.0 | 719.4 | |
| 0.00 | 2.32 | 0.00 | 1.44 | -11.21 | 102.89 | 32.31 | 240.46 | 0.6049 | 862.0 | 644.8 | |
| 0.00 | 3.65 | 0.00 | 2.30 | -13.11 | 103.11 | 32.53 | 237.92 | 0.6204 | 396.0 | 522.3 | |
| 0.00 | 0.71 | 0.00 | 0.45 | -13.40 | 102.75 | 32.17 | 237.22 | 0.6183 | 488.0 | 450.5 | |
| 0.00 | 1.25 | 0.00 | 0.78 | -13.09 | 102.44 | 31.87 | 237.41 | 0.6126 | 726.0 | 617.9 | |
| 0.00 | 1.60 | 0.00 | 1.00 | -13.44 | 102.42 | 31.85 | 236.90 | 0.6149 | 753.0 | 530.2 | |
| 0.00 | 4.45 | 0.00 | 2.78 | -13.52 | 102.11 | 31.53 | 236.53 | 0.6118 | 427.0 | 578.5 | |
| 0.00 | 1.69 | 0.00 | 1.06 | -13.91 | 102.16 | 31.59 | 236.04 | 0.6153 | 296.0 | 263.6 | |
| 0.00 | 0.98 | 0.00 | 0.61 | -13.33 | 101.75 | 31.18 | 236.49 | 0.6064 | 447.0 | 451.5 | |
| 0.00 | 1.34 | 0.00 | 0.83 | -13.35 | 101.50 | 30.92 | 236.26 | 0.6036 | 644.0 | 453.2 | |
| 0.00 | 0.98 | 0.00 | 0.60 | -12.41 | 100.94 | 30.37 | 237.11 | 0.5901 | 649.0 | 493.7 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -8.56 | 99.54 | 28.97 | 241.83 | 0.5454 | -592.0 | -474.5 | |
| 0.00 | 2.40 | 0.00 | 1.46 | -13.82 | 99.38 | 28.80 | 233.68 | 0.5829 | 809.0 | 538.3 | |
| 0.00 | 1.07 | 0.00 | 0.65 | -14.43 | 99.32 | 28.74 | 232.76 | 0.5872 | 748.0 | 597.4 | |
| 0.00 | 2.76 | 0.00 | 1.68 | -14.44 | 99.00 | 28.43 | 232.44 | 0.5837 | 907.0 | 617.2 | |
| 0.53 | 3.21 | 0.32 | 1.95 | -14.61 | 98.74 | 28.17 | 231.94 | 0.5823 | 777.2 | 604.1 | |
| 0.00 | 2.23 | 0.00 | 1.33 | -12.46 | 98.29 | 27.72 | 234.59 | 0.5593 | -592.0 | -469.6 | |
| 0.00 | 0.89 | 0.00 | 0.54 | -14.41 | 98.53 | 27.96 | 232.02 | 0.5783 | 813.0 | 714.6 | |
| 0.00 | 1.16 | 0.00 | 0.69 | -12.29 | 98.10 | 27.52 | 234.65 | 0.5557 | -635.0 | -497.0 | |
| 0.00 | 1.69 | 0.00 | 1.02 | -14.56 | 98.31 | 27.73 | 231.59 | 0.5770 | 778.0 | 657.1 | |
| 2.23 | 30.99 | 1.36 | 18.94 | -15.93 | 98.43 | 27.86 | 229.84 | 0.5902 | 618.8 | 601.5 | |
| 0.00 | 1.96 | 0.00 | 1.16 | -11.92 | 97.85 | 27.27 | 234.96 | 0.5497 | -683.0 | -519.8 | |
| 4.72 | -32.00 | 2.88 | -32.00 | -15.72 | 98.26 | 27.69 | 229.94 | 0.5866 | 867.6 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.70 | -14.77 | 98.05 | 27.48 | 231.04 | 0.5760 | 657.0 | 496.8 | |
| 1.34 | -32.00 | 0.82 | -32.00 | -16.27 | 98.13 | 27.56 | 229.07 | 0.5900 | 704.5 | 999999 | |
| 0.71 | -32.00 | 0.43 | -32.00 | -15.77 | 98.02 | 27.45 | 229.63 | 0.5844 | 987.1 | 999999 | |
| 1.34 | 16.92 | 0.79 | 10.06 | -12.93 | 97.61 | 27.04 | 233.21 | 0.5553 | -922.3 | -679.4 | |
| 0.00 | 0.80 | 0.00 | 0.50 | -17.65 | 98.06 | 27.49 | 227.21 | 0.6016 | 597.0 | 499.0 | |
| 4.72 | 11.93 | 2.81 | 7.10 | -13.27 | 97.34 | 26.76 | 232.44 | 0.5551 | -853.6 | -263.1 | |
| 0.45 | 2.58 | 0.27 | 1.55 | -14.92 | 97.44 | 26.87 | 230.19 | 0.5706 | 846.2 | 674.4 | |
| 0.00 | 0.89 | 0.00 | 0.54 | -16.57 | 97.68 | 27.11 | 228.21 | 0.5879 | 609.0 | 497.3 | |
| 0.00 | 1.51 | 0.00 | 0.92 | -16.04 | 97.49 | 26.92 | 228.73 | 0.5811 | 738.0 | 646.8 | |
| 1.16 | 3.12 | 0.68 | 1.84 | -12.83 | 97.05 | 26.47 | 232.77 | 0.5479 | -839.8 | -678.4 | |
| 0.00 | 1.51 | 0.00 | 0.90 | -13.25 | 97.06 | 26.48 | 232.17 | 0.5517 | -315.0 | -348.7 | |
| 0.00 | 1.16 | 0.00 | 0.70 | -15.11 | 97.26 | 26.68 | 229.74 | 0.5703 | 848.0 | 706.3 | |
| 0.00 | 1.87 | 0.00 | 1.10 | -12.98 | 96.75 | 26.18 | 232.25 | 0.5458 | -865.0 | -627.0 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -14.73 | 96.89 | 26.32 | 229.88 | 0.5629 | 772.0 | 666.2 | |
| 0.00 | 1.25 | 0.00 | 0.75 | -15.55 | 97.00 | 26.43 | 228.87 | 0.5715 | 589.0 | 431.1 | |
| 0.00 | 0.98 | 0.00 | 0.58 | -14.40 | 96.78 | 26.21 | 230.23 | 0.5587 | 831.0 | 651.3 | |
| 0.00 | 2.23 | 0.00 | 1.33 | -14.85 | 96.70 | 26.13 | 229.51 | 0.5618 | 819.0 | 800.4 | |
| 0.00 | 1.42 | 0.00 | 0.86 | -15.47 | 96.75 | 26.17 | 228.70 | 0.5680 | 827.0 | 664.9 | |
| 0.00 | 1.07 | 0.00 | 0.63 | -13.35 | 96.48 | 25.91 | 231.42 | 0.5459 | -623.0 | -440.1 | |
| 0.00 | 0.98 | 0.00 | 0.58 | -13.57 | 96.40 | 25.83 | 231.01 | 0.5470 | -559.0 | -478.5 | |
| 0.00 | 7.12 | 0.00 | 4.26 | -15.09 | 96.49 | 25.91 | 228.94 | 0.5618 | 955.0 | 809.3 | |
| 3.47 | 8.55 | 2.08 | 5.12 | -15.48 | 96.47 | 25.90 | 228.38 | 0.5652 | 909.4 | 744.4 | |
| 0.00 | 1.51 | 0.00 | 0.86 | -8.93 | 95.79 | 25.22 | 237.67 | 0.5001 | -771.0 | -648.8 | |
| 0.00 | 1.42 | 0.00 | 0.81 | -9.08 | 95.74 | 25.16 | 237.35 | 0.5007 | -765.0 | -601.8 | |
| 0.00 | 1.07 | 0.00 | 0.63 | -13.32 | 96.07 | 25.49 | 231.00 | 0.5410 | -709.0 | -608.7 | |
| 0.00 | 0.53 | 0.00 | 0.32 | -15.39 | 96.08 | 25.50 | 228.07 | 0.5601 | 538.0 | 487.2 | |
| 5.17 | 39.18 | 3.09 | 23.43 | -15.91 | 95.90 | 25.33 | 227.17 | 0.5631 | 875.3 | 382.2 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -9.77 | 95.22 | 24.64 | 235.62 | 0.4999 | -693.0 | -585.2 | |
| 3.56 | 327.10 | 2.10 | 190.15 | -14.51 | 95.38 | 24.80 | 228.51 | 0.5442 | 693.2 | -419.5 | |
| 0.00 | 1.42 | 0.00 | 0.82 | -11.91 | 94.89 | 24.32 | 231.81 | 0.5147 | -824.0 | -670.0 | |
| 0.98 | -61.00 | 0.58 | -61.00 | -16.03 | 95.26 | 24.68 | 226.27 | 0.5575 | -540.2 | 999999 | |
| 4.01 | -63.00 | 2.35 | -63.00 | -14.31 | 94.63 | 24.06 | 227.94 | 0.5342 | -815.7 | 999999 | |
| 0.00 | 1.96 | 0.00 | 1.15 | -14.79 | 94.62 | 24.05 | 227.24 | 0.5388 | -726.0 | -400.7 | |
| 0.00 | 4.72 | 0.00 | 2.79 | -15.64 | 94.69 | 24.12 | 226.14 | 0.5478 | -491.0 | -594.6 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -14.99 | 94.61 | 24.04 | 226.95 | 0.5405 | -399.0 | -407.8 | |
| 1.51 | -63.00 | 0.88 | -63.00 | -14.00 | 94.40 | 23.82 | 228.09 | 0.5287 | -868.8 | 999999 | |
| 0.00 | 7.93 | 0.00 | 4.70 | -16.16 | 94.65 | 24.08 | 225.39 | 0.5526 | 54.0 | -68.5 | |
| 0.00 | 1.42 | 0.00 | 0.86 | -17.89 | 94.86 | 24.28 | 223.39 | 0.5718 | -546.0 | -440.9 | |
| 0.00 | 2.05 | 0.00 | 1.21 | -15.69 | 94.46 | 23.88 | 225.79 | 0.5459 | -809.0 | -618.1 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -18.05 | 94.74 | 24.17 | 223.06 | 0.5723 | -318.0 | -373.6 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -12.30 | 93.92 | 23.34 | 230.05 | 0.5071 | 731.0 | 423.9 | |
| 0.00 | 2.67 | 0.00 | 1.61 | -18.44 | 94.55 | 23.98 | 222.35 | 0.5744 | -498.0 | -410.4 | |
| 0.00 | 2.85 | 0.00 | 1.71 | -17.94 | 94.48 | 23.91 | 222.89 | 0.5686 | -876.0 | -712.8 | |
| 19.32 | -63.00 | 11.25 | -63.00 | -14.30 | 93.95 | 23.38 | 227.13 | 0.5267 | -1149.7 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -16.40 | 94.17 | 23.59 | 224.50 | 0.5499 | -312.0 | -360.8 | |
| 0.00 | 1.60 | 0.00 | 0.92 | -12.71 | 93.69 | 23.11 | 229.15 | 0.5083 | -685.0 | -610.1 | |
| 2.94 | -63.00 | 1.71 | -63.00 | -14.81 | 93.81 | 23.23 | 226.22 | 0.5302 | -456.2 | 999999 | |
| 5.79 | 44.17 | 3.40 | 25.91 | -15.79 | 93.78 | 23.21 | 224.85 | 0.5398 | 936.8 | 173.5 | |
| 3.47 | -63.00 | 2.01 | -63.00 | -14.28 | 93.51 | 22.93 | 226.61 | 0.5217 | -1132.4 | 999999 | |
| 0.27 | -63.00 | 0.15 | -63.00 | -13.98 | 93.41 | 22.84 | 226.92 | 0.5177 | -1039.3 | 999999 | |
| 0.00 | 6.06 | 0.00 | 3.48 | -13.26 | 93.20 | 22.63 | 227.71 | 0.5083 | -610.0 | -542.3 | |
| 1.25 | -63.00 | 0.72 | -63.00 | -14.00 | 93.24 | 22.67 | 226.67 | 0.5161 | -1180.7 | 999999 | |
| 33.57 | -63.00 | 19.46 | -63.00 | -14.52 | 93.20 | 22.62 | 225.87 | 0.5208 | -1128.1 | 999999 | |
| 0.00 | 1.51 | 0.00 | 0.85 | -10.46 | 92.73 | 22.15 | 231.52 | 0.4756 | -876.0 | -708.8 | |
| 0.00 | 1.60 | 0.00 | 0.90 | -10.77 | 92.45 | 21.88 | 230.66 | 0.4752 | -754.0 | -621.9 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -16.45 | 92.06 | 21.49 | 221.77 | 0.5294 | -491.0 | -355.4 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -12.72 | 91.28 | 20.71 | 226.00 | 0.4816 | -697.0 | -514.0 | |
| 0.00 | 3.56 | 0.00 | 2.06 | -16.00 | 91.57 | 21.00 | 221.71 | 0.5197 | -759.0 | -606.5 | |
| 0.00 | 1.87 | 0.00 | 1.08 | -15.64 | 91.50 | 20.92 | 222.10 | 0.5150 | -687.0 | -498.3 | |
| 0.00 | 0.80 | 0.00 | 0.48 | -19.95 | 92.00 | 21.42 | 217.43 | 0.5671 | -695.0 | -526.6 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -19.83 | 91.50 | 20.92 | 216.92 | 0.5614 | -760.0 | -693.1 | |
| 0.00 | 1.07 | 0.00 | 0.63 | -19.21 | 91.38 | 20.81 | 217.47 | 0.5535 | -761.0 | -630.9 | |
| 0.00 | 0.53 | 0.00 | 0.29 | -9.16 | 89.96 | 19.38 | 229.97 | 0.4296 | -787.0 | -655.8 | |
| 0.00 | 1.87 | 0.00 | 1.07 | -16.61 | 89.72 | 19.15 | 218.34 | 0.5088 | -750.0 | -679.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
