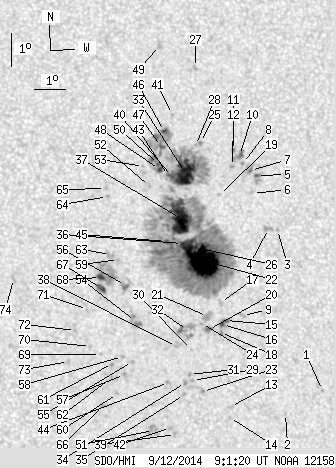

SDO HMI 2014-09-12 09:01:20 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 171.60 | 1006.41 | 89.98 | 526.97 | 16.02 | 87.66 | 17.08 | 299.10 | 0.3260 | 632.6 | 292.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-12 09:01:20 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.52 | 11.15 | 91.75 | 21.17 | 282.20 | 0.3641 | -734.0 | -579.2 | |
| 0.00 | 0.71 | 0.00 | 0.38 | 10.50 | 90.48 | 19.91 | 280.91 | 0.3425 | -693.0 | -610.1 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 16.09 | 90.71 | 20.14 | 296.02 | 0.3696 | 762.0 | 589.8 | |
| 0.00 | 5.34 | 0.00 | 2.84 | 16.13 | 90.41 | 19.84 | 296.42 | 0.3656 | 801.0 | 692.7 | |
| 0.71 | 6.41 | 0.38 | 3.42 | 17.77 | 90.19 | 19.62 | 300.71 | 0.3735 | 1049.0 | 755.2 | |
| 0.00 | 0.45 | 0.00 | 0.24 | 17.23 | 90.00 | 19.42 | 299.60 | 0.3669 | 518.0 | 457.6 | |
| 0.62 | 6.77 | 0.33 | 3.61 | 17.93 | 90.01 | 19.43 | 301.31 | 0.3721 | 906.4 | 611.8 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 18.16 | 89.77 | 19.19 | 302.14 | 0.3705 | 935.0 | 716.9 | |
| 0.00 | 3.12 | 0.00 | 1.64 | 13.53 | 89.31 | 18.73 | 290.41 | 0.3346 | -543.0 | -464.2 | |
| 0.00 | 7.04 | 0.00 | 3.75 | 18.41 | 89.69 | 19.12 | 302.82 | 0.3714 | 863.0 | 759.5 | |
| 0.00 | 1.69 | 0.00 | 0.90 | 18.57 | 89.51 | 18.94 | 303.43 | 0.3702 | 878.0 | 673.1 | |
| 0.00 | 1.42 | 0.00 | 0.76 | 18.08 | 89.42 | 18.85 | 302.37 | 0.3652 | 1035.0 | 846.9 | |
| 0.00 | 2.05 | 0.00 | 1.07 | 10.79 | 88.72 | 18.14 | 282.58 | 0.3148 | -743.0 | -695.0 | |
| 0.00 | 1.34 | 0.00 | 0.70 | 10.46 | 88.66 | 18.09 | 281.56 | 0.3130 | -852.0 | -668.7 | |
| 0.71 | 5.34 | 0.37 | 2.80 | 13.40 | 88.74 | 18.17 | 290.53 | 0.3253 | -789.4 | -641.1 | |
| 1.16 | -15.00 | 0.61 | -15.00 | 13.28 | 88.63 | 18.06 | 290.27 | 0.3230 | -854.4 | 999999 | |
| 0.00 | 3.03 | 0.00 | 1.59 | 13.95 | 88.62 | 18.05 | 292.25 | 0.3263 | 847.0 | 552.1 | |
| 0.00 | 2.23 | 0.00 | 1.16 | 13.04 | 88.55 | 17.97 | 289.63 | 0.3206 | -781.0 | -747.8 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 17.24 | 88.89 | 18.32 | 300.93 | 0.3515 | 630.0 | 462.8 | |
| 0.00 | 4.45 | 0.00 | 2.32 | 13.15 | 88.17 | 17.59 | 290.29 | 0.3152 | -847.0 | -742.5 | |
| 0.00 | 8.10 | 0.00 | 4.23 | 13.54 | 88.16 | 17.59 | 291.49 | 0.3171 | 272.0 | 208.1 | |
| 67.41 | 806.66 | 35.32 | 422.94 | 15.25 | 88.14 | 17.57 | 296.50 | 0.3268 | 1597.2 | 430.0 | |
| 0.00 | 1.51 | 0.00 | 0.79 | 11.28 | 87.84 | 17.27 | 284.66 | 0.3022 | -787.0 | -718.1 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 13.34 | 87.95 | 17.38 | 291.07 | 0.3128 | -646.0 | -402.5 | |
| 0.00 | 1.51 | 0.00 | 0.80 | 18.86 | 88.44 | 17.86 | 305.54 | 0.3582 | 665.0 | 593.4 | |
| 3.21 | -22.00 | 1.68 | -22.00 | 15.65 | 87.95 | 17.37 | 297.86 | 0.3267 | 1088.9 | 999999 | |
| 0.00 | 2.23 | 0.00 | 1.19 | 21.18 | 88.54 | 17.97 | 310.63 | 0.3807 | 704.0 | 620.6 | |
| 0.00 | 0.62 | 0.00 | 0.33 | 18.77 | 88.26 | 17.68 | 305.58 | 0.3552 | 496.0 | 428.4 | |
| 0.00 | 1.25 | 0.00 | 0.65 | 11.62 | 87.54 | 16.97 | 286.00 | 0.2987 | -827.0 | -713.3 | |
| 0.00 | 1.25 | 0.00 | 0.65 | 12.56 | 87.57 | 17.00 | 289.01 | 0.3031 | -740.0 | -536.4 | |
| 0.00 | 1.78 | 0.00 | 0.92 | 11.81 | 87.46 | 16.88 | 286.67 | 0.2981 | -868.0 | -716.0 | |
| 0.00 | 15.41 | 0.00 | 8.01 | 13.14 | 87.48 | 16.91 | 290.92 | 0.3046 | -669.0 | -367.7 | |
| 35.00 | -22.00 | 18.44 | -22.00 | 17.96 | 87.84 | 17.26 | 304.15 | 0.3426 | 1109.1 | 999999 | |
| 0.00 | 2.40 | 0.00 | 1.25 | 11.57 | 87.31 | 16.74 | 286.00 | 0.2948 | -998.0 | -798.6 | |
| 0.00 | 1.69 | 0.00 | 0.88 | 11.21 | 87.26 | 16.68 | 284.84 | 0.2926 | -861.0 | -729.6 | |
| 1.60 | -22.00 | 0.84 | -22.00 | 15.79 | 87.53 | 16.96 | 298.77 | 0.3216 | 1082.6 | 999999 | |
| 43.99 | -22.00 | 23.05 | -22.00 | 16.55 | 87.54 | 16.96 | 300.89 | 0.3273 | 1157.8 | 999999 | |
| 0.00 | 1.51 | 0.00 | 0.78 | 12.67 | 87.10 | 16.52 | 289.80 | 0.2962 | -933.0 | -702.3 | |
| 0.00 | 2.49 | 0.00 | 1.29 | 10.01 | 86.90 | 16.33 | 280.95 | 0.2832 | -657.0 | -567.2 | |
| 2.67 | -22.00 | 1.40 | -22.00 | 17.85 | 87.40 | 16.82 | 304.51 | 0.3358 | 1065.4 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 19.76 | 87.60 | 17.02 | 308.87 | 0.3554 | -728.0 | -585.0 | |
| 0.00 | 2.32 | 0.00 | 1.19 | 10.23 | 86.75 | 16.18 | 281.79 | 0.2814 | -936.0 | -748.4 | |
| 0.27 | -22.00 | 0.14 | -22.00 | 17.88 | 87.27 | 16.69 | 304.79 | 0.3343 | 987.3 | 999999 | |
| 0.00 | 2.05 | 0.00 | 1.06 | 11.59 | 86.77 | 16.19 | 286.50 | 0.2862 | -968.0 | -745.1 | |
| 1.60 | -22.00 | 0.84 | -22.00 | 15.87 | 87.02 | 16.44 | 299.68 | 0.3148 | 1008.8 | 999999 | |
| 1.87 | -22.00 | 0.99 | -22.00 | 19.24 | 87.27 | 16.70 | 308.15 | 0.3465 | -1025.8 | 999999 | |
| 1.34 | -22.00 | 0.70 | -22.00 | 18.78 | 87.13 | 16.55 | 307.27 | 0.3404 | 651.4 | 999999 | |
| 1.96 | -22.00 | 1.03 | -22.00 | 18.08 | 86.99 | 16.41 | 305.71 | 0.3323 | 1170.3 | 999999 | |
| 0.00 | 3.83 | 0.00 | 2.04 | 21.91 | 87.41 | 16.84 | 313.88 | 0.3744 | 753.0 | 587.7 | |
| 0.71 | -22.00 | 0.37 | -22.00 | 18.23 | 86.97 | 16.40 | 306.13 | 0.3334 | 955.9 | 999999 | |
| 0.00 | 8.37 | 0.00 | 4.31 | 10.16 | 86.21 | 15.63 | 281.85 | 0.2723 | -847.0 | -790.2 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 17.57 | 86.61 | 16.04 | 304.97 | 0.3228 | 862.0 | 683.9 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 18.19 | 86.47 | 15.90 | 306.81 | 0.3264 | 647.0 | 502.2 | |
| 0.00 | 7.66 | 0.00 | 3.95 | 13.47 | 85.83 | 15.25 | 293.84 | 0.2810 | -886.0 | -925.1 | |
| 0.00 | 1.42 | 0.00 | 0.73 | 12.26 | 85.66 | 15.08 | 289.89 | 0.2716 | -873.0 | -716.4 | |
| 0.00 | 8.19 | 0.00 | 4.23 | 14.58 | 85.58 | 15.01 | 297.78 | 0.2845 | 313.0 | 239.3 | |
| 0.00 | 1.69 | 0.00 | 0.87 | 11.88 | 85.38 | 14.80 | 288.81 | 0.2653 | -1057.0 | -866.5 | |
| 0.00 | 1.42 | 0.00 | 0.73 | 12.43 | 85.35 | 14.77 | 290.81 | 0.2676 | -1040.0 | -845.8 | |
| 0.00 | 0.89 | 0.00 | 0.46 | 15.37 | 85.41 | 14.84 | 300.55 | 0.2880 | 672.0 | 487.5 | |
| 0.00 | 1.60 | 0.00 | 0.82 | 11.31 | 85.12 | 14.55 | 286.97 | 0.2587 | -772.0 | -638.9 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 12.22 | 85.01 | 14.44 | 290.47 | 0.2613 | -912.0 | -805.6 | |
| 0.00 | 1.07 | 0.00 | 0.55 | 11.80 | 84.96 | 14.39 | 288.97 | 0.2583 | -944.0 | -823.0 | |
| 0.00 | 5.70 | 0.00 | 2.94 | 15.54 | 85.17 | 14.59 | 301.43 | 0.2858 | 432.0 | 296.5 | |
| 0.00 | 1.25 | 0.00 | 0.65 | 17.31 | 85.21 | 14.63 | 306.57 | 0.3017 | 975.0 | 795.9 | |
| 0.00 | 1.78 | 0.00 | 0.93 | 17.56 | 85.16 | 14.59 | 307.33 | 0.3034 | 769.0 | 635.0 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 10.96 | 84.66 | 14.09 | 286.08 | 0.2498 | -971.0 | -771.7 | |
| 3.47 | 38.03 | 1.79 | 19.60 | 14.51 | 84.80 | 14.23 | 298.73 | 0.2726 | -1066.1 | -446.7 | |
| 3.30 | -67.00 | 1.70 | -67.00 | 14.85 | 84.80 | 14.22 | 299.85 | 0.2750 | -1117.9 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.64 | 12.51 | 84.65 | 14.07 | 291.96 | 0.2571 | -88.0 | -113.9 | |
| 0.00 | 1.07 | 0.00 | 0.55 | 12.76 | 84.34 | 13.77 | 293.29 | 0.2539 | -845.0 | -692.2 | |
| 0.00 | 0.98 | 0.00 | 0.50 | 13.89 | 84.32 | 13.74 | 297.38 | 0.2608 | -814.0 | -608.0 | |
| 0.00 | 1.16 | 0.00 | 0.59 | 13.26 | 83.89 | 13.32 | 295.79 | 0.2502 | -831.0 | -665.1 | |
| 0.00 | 2.23 | 0.00 | 1.14 | 12.33 | 83.62 | 13.05 | 292.65 | 0.2401 | -747.0 | -723.6 | |
| 0.00 | 2.85 | 0.00 | 1.45 | 14.89 | 82.01 | 11.44 | 305.32 | 0.2359 | -834.0 | -695.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
