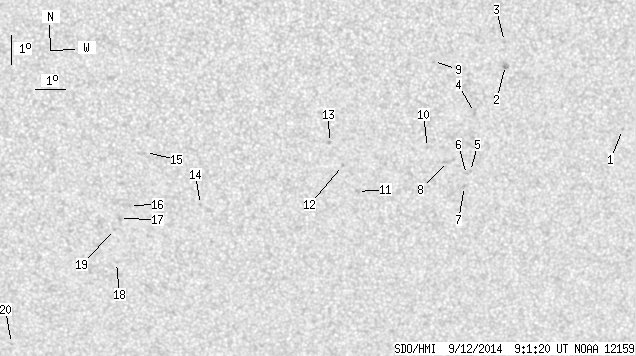

SDO HMI 2014-09-12 09:01:20 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 28.53 | 0.00 | 16.42 | -22.38 | 76.21 | 5.64 | 190.85 | 0.5105 | 39.8 | 63.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-12 09:01:20 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.57 | -21.49 | 84.85 | 14.28 | 205.69 | 0.5313 | 840.0 | 602.5 | |
| 0.00 | 3.21 | 0.00 | 1.80 | -19.19 | 80.81 | 10.24 | 200.75 | 0.4757 | -661.0 | -605.8 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -18.38 | 80.73 | 10.16 | 201.24 | 0.4637 | -547.0 | -531.3 | |
| 0.00 | 2.40 | 0.00 | 1.37 | -20.76 | 79.90 | 9.32 | 197.94 | 0.4937 | 704.0 | 639.4 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -22.80 | 79.90 | 9.32 | 196.66 | 0.5229 | 675.0 | 482.6 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -22.90 | 79.77 | 9.20 | 196.39 | 0.5238 | 579.0 | 527.0 | |
| 0.00 | 1.25 | 0.00 | 0.73 | -23.32 | 79.73 | 9.16 | 196.09 | 0.5296 | 783.0 | 648.5 | |
| 0.00 | 3.74 | 0.00 | 2.16 | -22.44 | 79.15 | 8.57 | 195.59 | 0.5145 | 391.0 | 578.1 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -19.00 | 78.47 | 7.90 | 196.42 | 0.4615 | -633.0 | -528.1 | |
| 0.00 | 1.25 | 0.00 | 0.71 | -21.94 | 78.42 | 7.85 | 194.61 | 0.5045 | 787.0 | 526.6 | |
| 0.00 | 2.05 | 0.00 | 1.19 | -23.43 | 76.19 | 5.62 | 190.00 | 0.5193 | 710.0 | 581.5 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -22.52 | 75.66 | 5.09 | 189.38 | 0.5044 | 794.0 | 701.2 | |
| 0.00 | 1.34 | 0.00 | 0.76 | -21.71 | 75.21 | 4.63 | 188.83 | 0.4913 | 682.0 | 500.1 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -23.85 | 71.02 | 0.44 | 180.79 | 0.5182 | -727.0 | -575.7 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -22.03 | 69.22 | -1.35 | 177.44 | 0.4911 | -354.0 | -409.0 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -23.88 | 68.67 | -1.90 | 176.64 | 0.5196 | -671.0 | -606.4 | |
| 0.00 | 1.96 | 0.00 | 1.14 | -24.34 | 68.33 | -2.24 | 176.11 | 0.5268 | -814.0 | -682.0 | |
| 0.00 | 1.07 | 0.00 | 0.63 | -25.92 | 68.20 | -2.37 | 176.11 | 0.5501 | -602.0 | -479.1 | |
| 0.00 | 1.16 | 0.00 | 0.68 | -24.73 | 68.16 | -2.41 | 175.87 | 0.5327 | -654.0 | -465.6 | |
| 0.00 | 0.89 | 0.00 | 0.55 | -28.93 | 64.50 | -6.07 | 171.07 | 0.5989 | -485.0 | -511.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
