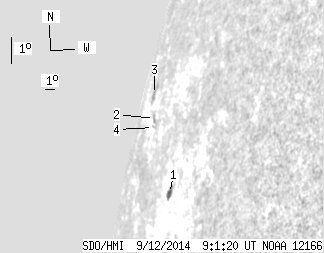

SDO HMI 2014-09-12 09:01:20 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.03 | 16.56 | 6.59 | 57.18 | 14.23 | 347.33 | -83.24 | 76.58 | 0.9892 | 13.4 | 162.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-12 09:01:20 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.03 | 5.70 | 6.59 | 12.42 | 12.63 | 352.50 | -78.08 | 78.65 | 0.9748 | -99.3 | 4.4 | |
| 0.00 | 2.76 | 0.00 | 9.99 | 14.29 | 346.97 | -83.60 | 76.49 | 0.9910 | 201.0 | 235.7 | |
| 0.00 | 7.21 | 0.00 | 31.66 | 14.85 | 345.43 | -85.15 | 75.78 | 0.9941 | 228.0 | 151.0 | |
| 0.00 | 0.89 | 0.00 | 3.11 | 14.04 | 347.25 | -83.33 | 76.77 | 0.9905 | 354.0 | 343.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
