SDO HMI 2014-09-12 10:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 125.29 | 677.80 | 75.41 | 405.15 | -14.21 | 96.36 | 26.33 | 230.27 | 0.5599 | -54.8 | -59.7 | |
|
previous
or next observation for the same group /

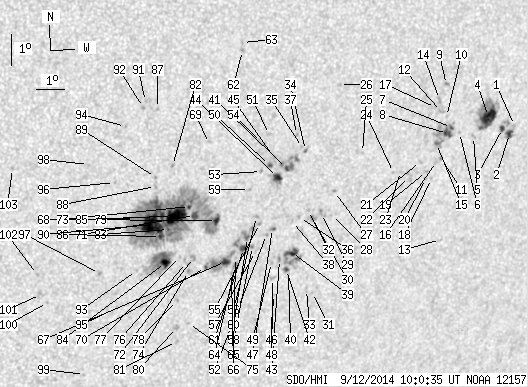

back to the solar disc SDO HMI 2014-09-12 10:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.51 | 0.00 | 0.99 | -12.18 | 105.84 | 35.81 | 241.62 | 0.6523 | 7.0 | 14.0 | |
| 3.56 | 5.79 | 2.32 | 3.77 | -12.42 | 105.69 | 35.65 | 241.18 | 0.6520 | 702.8 | 465.0 | |
| 2.14 | 7.12 | 1.39 | 4.62 | -12.24 | 105.39 | 35.36 | 241.23 | 0.6475 | 761.8 | 547.5 | |
| 18.61 | 44.97 | 11.94 | 28.82 | -11.81 | 104.80 | 34.77 | 241.41 | 0.6379 | 962.9 | 605.0 | |
| 0.00 | 1.78 | 0.00 | 1.14 | -12.41 | 104.32 | 34.29 | 240.23 | 0.6362 | 681.0 | 599.6 | |
| 0.00 | 0.80 | 0.00 | 0.51 | -12.24 | 103.78 | 33.74 | 240.07 | 0.6287 | 537.0 | 487.8 | |
| 1.07 | 26.53 | 0.68 | 16.74 | -12.06 | 103.45 | 33.42 | 240.08 | 0.6237 | 833.8 | 707.2 | |
| 4.45 | -7.00 | 2.81 | -7.00 | -12.24 | 103.33 | 33.30 | 239.73 | 0.6234 | 947.6 | 999999 | |
| 0.00 | 1.69 | 0.00 | 1.06 | -10.67 | 103.09 | 33.05 | 241.81 | 0.6104 | 779.0 | 657.1 | |
| 0.00 | 0.89 | 0.00 | 0.56 | -11.69 | 103.22 | 33.19 | 240.43 | 0.6185 | 601.0 | 548.5 | |
| 0.00 | 1.51 | 0.00 | 0.96 | -13.03 | 103.22 | 33.19 | 238.54 | 0.6275 | 662.0 | 526.5 | |
| 0.00 | 2.14 | 0.00 | 1.34 | -11.52 | 103.01 | 32.98 | 240.52 | 0.6149 | 785.0 | 715.3 | |
| 0.00 | 0.36 | 0.00 | 0.23 | -15.68 | 103.63 | 33.60 | 235.30 | 0.6504 | 187.0 | 338.8 | |
| 0.00 | 2.85 | 0.00 | 1.78 | -11.13 | 102.89 | 32.85 | 240.99 | 0.6109 | 853.0 | 699.6 | |
| 0.71 | -7.00 | 0.45 | -7.00 | -12.53 | 102.97 | 32.93 | 239.04 | 0.6211 | 879.2 | 999999 | |
| 0.00 | 1.87 | 0.00 | 1.19 | -13.12 | 103.05 | 33.02 | 238.29 | 0.6261 | 720.0 | 454.2 | |
| 0.00 | 0.98 | 0.00 | 0.61 | -11.37 | 102.77 | 32.74 | 240.55 | 0.6111 | 789.0 | 666.2 | |
| 0.00 | 1.07 | 0.00 | 0.68 | -13.65 | 102.95 | 32.92 | 237.47 | 0.6286 | 571.0 | 444.5 | |
| 0.00 | 1.16 | 0.00 | 0.73 | -13.41 | 102.73 | 32.69 | 237.63 | 0.6244 | 537.0 | 477.6 | |
| 0.00 | 1.07 | 0.00 | 0.68 | -13.64 | 102.73 | 32.69 | 237.31 | 0.6259 | 606.0 | 509.1 | |
| 0.00 | 1.69 | 0.00 | 1.06 | -13.07 | 102.46 | 32.42 | 237.88 | 0.6189 | 720.0 | 539.1 | |
| 0.00 | 5.34 | 0.00 | 3.36 | -13.53 | 102.12 | 32.09 | 236.97 | 0.6182 | 529.0 | 569.9 | |
| 0.00 | 1.25 | 0.00 | 0.78 | -13.35 | 101.76 | 31.73 | 236.94 | 0.6128 | 486.0 | 465.4 | |
| 0.00 | 0.62 | 0.00 | 0.39 | -13.36 | 101.51 | 31.48 | 236.71 | 0.6100 | 598.0 | 527.4 | |
| 0.00 | 0.89 | 0.00 | 0.55 | -12.63 | 100.29 | 30.26 | 236.69 | 0.5905 | 752.0 | 644.1 | |
| 0.00 | 1.69 | 0.00 | 1.01 | -10.40 | 99.21 | 29.18 | 239.09 | 0.5611 | 648.0 | 563.9 | |
| 0.00 | 1.16 | 0.00 | 0.71 | -13.83 | 99.45 | 29.41 | 234.23 | 0.5899 | 716.0 | 602.3 | |
| 0.00 | 0.89 | 0.00 | 0.55 | -14.61 | 99.45 | 29.42 | 233.15 | 0.5962 | 587.0 | 467.8 | |
| 0.00 | 4.01 | 0.00 | 2.46 | -14.52 | 99.08 | 29.05 | 232.93 | 0.5913 | 797.0 | 591.0 | |
| 0.00 | 3.47 | 0.00 | 2.12 | -14.66 | 98.78 | 28.75 | 232.44 | 0.5891 | 843.0 | 630.2 | |
| 0.00 | 0.53 | 0.00 | 0.33 | -17.10 | 99.16 | 29.13 | 229.54 | 0.6137 | 515.0 | 385.2 | |
| 0.00 | 1.07 | 0.00 | 0.65 | -14.39 | 98.60 | 28.56 | 232.64 | 0.5849 | 711.0 | 575.1 | |
| 0.00 | 2.14 | 0.00 | 1.33 | -16.99 | 98.93 | 28.89 | 229.46 | 0.6103 | 576.0 | 473.8 | |
| 0.00 | 1.78 | 0.00 | 1.07 | -12.44 | 98.24 | 28.21 | 235.11 | 0.5649 | -489.0 | -444.2 | |
| 0.00 | 1.34 | 0.00 | 0.80 | -12.33 | 98.12 | 28.09 | 235.15 | 0.5627 | -660.0 | -415.1 | |
| 0.00 | 0.98 | 0.00 | 0.60 | -14.60 | 98.31 | 28.27 | 232.07 | 0.5833 | 852.0 | 651.4 | |
| 0.00 | 1.25 | 0.00 | 0.74 | -11.90 | 97.86 | 27.83 | 235.54 | 0.5562 | -412.0 | -491.9 | |
| 0.00 | 1.07 | 0.00 | 0.65 | -14.71 | 98.07 | 28.04 | 231.68 | 0.5817 | 696.0 | 614.2 | |
| 5.70 | 22.97 | 3.50 | 14.11 | -15.73 | 98.19 | 28.15 | 230.40 | 0.5916 | 922.6 | 567.5 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -16.42 | 98.19 | 28.15 | 229.49 | 0.5975 | 408.0 | 432.0 | |
| 1.60 | 16.21 | 0.96 | 9.69 | -12.98 | 97.64 | 27.61 | 233.73 | 0.5622 | -856.3 | -673.9 | |
| 1.34 | 2.40 | 0.82 | 1.48 | -16.28 | 98.09 | 28.06 | 229.58 | 0.5954 | 727.5 | 594.6 | |
| 0.00 | 2.14 | 0.00 | 1.31 | -15.93 | 97.79 | 27.76 | 229.73 | 0.5891 | 840.0 | 700.2 | |
| 4.63 | 13.27 | 2.77 | 7.93 | -13.25 | 97.36 | 27.32 | 233.05 | 0.5613 | -816.6 | -320.0 | |
| 0.00 | 1.42 | 0.00 | 0.85 | -12.59 | 97.18 | 27.14 | 233.82 | 0.5537 | -804.0 | -702.3 | |
| 0.00 | 0.53 | 0.00 | 0.33 | -17.08 | 97.76 | 27.72 | 228.18 | 0.5989 | 259.0 | 259.2 | |
| 0.00 | 2.49 | 0.00 | 1.51 | -14.90 | 97.39 | 27.36 | 230.74 | 0.5758 | 813.0 | 726.4 | |
| 0.00 | 2.32 | 0.00 | 1.42 | -16.54 | 97.64 | 27.60 | 228.76 | 0.5929 | 624.0 | 486.4 | |
| 0.00 | 1.42 | 0.00 | 0.87 | -16.01 | 97.52 | 27.49 | 229.35 | 0.5869 | 703.0 | 536.5 | |
| 1.07 | 2.32 | 0.63 | 1.38 | -12.84 | 97.03 | 27.00 | 233.31 | 0.5541 | -866.0 | -740.1 | |
| 0.00 | 1.78 | 0.00 | 1.05 | -11.84 | 96.92 | 26.89 | 234.70 | 0.5444 | -635.0 | -449.0 | |
| 0.00 | 1.25 | 0.00 | 0.75 | -15.08 | 97.21 | 27.18 | 230.30 | 0.5754 | 745.0 | 672.1 | |
| 0.00 | 1.42 | 0.00 | 0.85 | -13.02 | 96.77 | 26.74 | 232.78 | 0.5526 | -723.0 | -586.9 | |
| 0.00 | 3.65 | 0.00 | 2.15 | -12.08 | 96.67 | 26.64 | 234.07 | 0.5435 | -648.0 | -544.6 | |
| 0.00 | 1.78 | 0.00 | 1.07 | -14.70 | 96.91 | 26.88 | 230.51 | 0.5688 | 684.0 | 594.0 | |
| 0.00 | 1.96 | 0.00 | 1.17 | -14.47 | 96.78 | 26.74 | 230.70 | 0.5652 | 822.0 | 702.0 | |
| 0.00 | 0.53 | 0.00 | 0.32 | -15.61 | 96.90 | 26.86 | 229.24 | 0.5767 | 461.0 | 387.8 | |
| 0.00 | 1.78 | 0.00 | 1.08 | -15.44 | 96.77 | 26.73 | 229.34 | 0.5738 | 815.0 | 616.9 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -13.58 | 96.42 | 26.39 | 231.60 | 0.5534 | -624.0 | -560.0 | |
| 0.80 | 8.82 | 0.48 | 5.29 | -15.14 | 96.55 | 26.52 | 229.53 | 0.5687 | 935.4 | 841.8 | |
| 3.03 | 11.66 | 1.82 | 7.02 | -15.49 | 96.46 | 26.42 | 228.95 | 0.5709 | 885.5 | 725.6 | |
| 0.00 | 1.78 | 0.00 | 1.02 | -9.12 | 95.75 | 25.71 | 237.86 | 0.5079 | -792.0 | -604.1 | |
| 0.00 | 1.25 | 0.00 | 0.71 | -8.87 | 95.73 | 25.69 | 238.27 | 0.5057 | -746.0 | -577.3 | |
| 0.00 | 4.01 | 0.00 | 2.42 | -16.03 | 96.25 | 26.22 | 227.99 | 0.5737 | 706.0 | 566.2 | |
| 0.00 | 0.71 | 0.00 | 0.43 | -15.77 | 96.22 | 26.18 | 228.31 | 0.5708 | 539.0 | 549.2 | |
| 0.00 | 1.34 | 0.00 | 0.81 | -16.29 | 96.15 | 26.12 | 227.54 | 0.5749 | 557.0 | 424.0 | |
| 4.45 | 26.62 | 2.68 | 15.98 | -15.88 | 95.88 | 25.85 | 227.79 | 0.5683 | 889.6 | 291.6 | |
| 3.21 | 320.91 | 1.90 | 187.40 | -14.52 | 95.39 | 25.36 | 229.14 | 0.5504 | 689.8 | -419.0 | |
| 0.00 | 0.45 | 0.00 | 0.26 | -12.01 | 94.88 | 24.84 | 232.26 | 0.5217 | -476.0 | -574.0 | |
| 0.53 | -67.00 | 0.32 | -67.00 | -16.04 | 95.21 | 25.17 | 226.83 | 0.5627 | -700.8 | 999999 | |
| 3.38 | -68.00 | 1.99 | -68.00 | -14.31 | 94.61 | 24.58 | 228.54 | 0.5399 | -827.6 | 999999 | |
| 0.00 | 2.94 | 0.00 | 1.75 | -15.68 | 94.74 | 24.71 | 226.78 | 0.5544 | -723.0 | -647.8 | |
| 1.16 | -68.00 | 0.68 | -68.00 | -14.01 | 94.40 | 24.37 | 228.74 | 0.5347 | -837.0 | 999999 | |
| 0.00 | 1.51 | 0.00 | 0.90 | -16.14 | 94.63 | 24.60 | 226.04 | 0.5576 | -502.0 | -280.4 | |
| 0.00 | 0.98 | 0.00 | 0.59 | -17.87 | 94.87 | 24.84 | 224.07 | 0.5770 | -597.0 | -484.8 | |
| 0.00 | 3.21 | 0.00 | 1.90 | -15.83 | 94.52 | 24.49 | 226.32 | 0.5536 | -651.0 | -519.9 | |
| 0.00 | 0.98 | 0.00 | 0.58 | -15.62 | 94.25 | 24.22 | 226.29 | 0.5487 | -9.0 | -54.9 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -17.08 | 94.38 | 24.34 | 224.51 | 0.5642 | -341.0 | -297.7 | |
| 24.84 | -68.00 | 14.52 | -68.00 | -14.28 | 93.99 | 23.96 | 227.86 | 0.5328 | -1102.3 | 999999 | |
| 0.00 | 2.58 | 0.00 | 1.56 | -17.98 | 94.47 | 24.44 | 223.47 | 0.5741 | -942.0 | -679.1 | |
| 0.00 | 1.51 | 0.00 | 0.92 | -18.45 | 94.54 | 24.51 | 222.97 | 0.5795 | -456.0 | -448.1 | |
| 0.00 | 1.34 | 0.00 | 0.77 | -12.65 | 93.68 | 23.65 | 229.90 | 0.5138 | -705.0 | -608.4 | |
| 0.71 | -68.00 | 0.42 | -68.00 | -14.72 | 93.77 | 23.74 | 226.97 | 0.5347 | -558.4 | 999999 | |
| 5.08 | 45.41 | 3.00 | 26.75 | -15.79 | 93.79 | 23.76 | 225.52 | 0.5456 | 964.2 | 168.3 | |
| 3.21 | -68.00 | 1.87 | -68.00 | -14.28 | 93.52 | 23.48 | 227.28 | 0.5277 | -1102.9 | 999999 | |
| 2.76 | -68.00 | 1.61 | -68.00 | -14.93 | 93.52 | 23.49 | 226.37 | 0.5341 | -649.3 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -10.80 | 93.02 | 22.98 | 232.00 | 0.4887 | -566.0 | -502.1 | |
| 0.00 | 1.60 | 0.00 | 0.92 | -13.30 | 93.17 | 23.14 | 228.30 | 0.5143 | -752.0 | -567.9 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -13.01 | 93.15 | 23.11 | 228.70 | 0.5111 | -755.0 | -685.7 | |
| 27.25 | -68.00 | 15.85 | -68.00 | -14.52 | 93.20 | 23.17 | 226.55 | 0.5267 | -1158.9 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -10.55 | 92.60 | 22.56 | 231.89 | 0.4814 | -614.0 | -520.0 | |
| 0.00 | 1.51 | 0.00 | 0.86 | -10.74 | 92.54 | 22.51 | 231.51 | 0.4825 | -810.0 | -708.2 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -16.00 | 92.83 | 22.80 | 224.05 | 0.5377 | -536.0 | -360.7 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -11.32 | 91.99 | 21.96 | 229.87 | 0.4815 | -603.0 | -553.7 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -17.20 | 92.33 | 22.29 | 221.86 | 0.5452 | -644.0 | -474.4 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -13.10 | 91.78 | 21.75 | 226.82 | 0.4968 | -610.0 | -511.8 | |
| 0.00 | 1.42 | 0.00 | 0.83 | -16.04 | 91.58 | 21.54 | 222.40 | 0.5255 | -827.0 | -734.6 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -12.47 | 90.86 | 20.83 | 226.53 | 0.4803 | -730.0 | -673.5 | |
| 0.00 | 0.98 | 0.00 | 0.59 | -19.39 | 91.49 | 21.45 | 218.11 | 0.5611 | -689.0 | -525.5 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -16.91 | 89.92 | 19.89 | 219.01 | 0.5191 | -653.0 | -533.3 | |
| 0.00 | 4.01 | 0.00 | 2.31 | -16.64 | 89.66 | 19.63 | 218.99 | 0.5135 | -779.0 | -617.2 | |
| 0.00 | 1.34 | 0.00 | 0.77 | -15.97 | 89.49 | 19.46 | 219.61 | 0.5043 | -778.0 | -638.8 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -12.49 | 88.37 | 18.33 | 222.85 | 0.4535 | -766.0 | -564.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
