SDO HMI 2014-09-12 10:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.84 | 166.70 | 18.26 | 90.04 | -15.89 | 66.12 | -3.91 | 170.55 | 0.4002 | 803.0 | 432.7 | |
|
previous
or next observation for the same group /

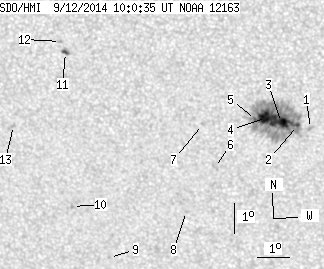

back to the solar disc SDO HMI 2014-09-12 10:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.49 | 0.00 | 1.35 | -16.10 | 67.64 | -2.39 | 174.22 | 0.3997 | 834.0 | 611.3 | |
| 1.34 | 151.28 | 0.72 | 81.62 | -16.01 | 67.23 | -2.80 | 173.21 | 0.3988 | 917.9 | 479.1 | |
| 15.14 | -2.00 | 8.17 | -2.00 | -15.91 | 66.73 | -3.30 | 171.98 | 0.3983 | 1173.3 | 999999 | |
| 14.34 | -2.00 | 7.73 | -2.00 | -15.75 | 66.26 | -3.77 | 170.79 | 0.3969 | 1222.7 | 999999 | |
| 1.51 | -2.00 | 0.82 | -2.00 | -15.82 | 65.92 | -4.12 | 169.99 | 0.3989 | 842.6 | 999999 | |
| 0.00 | 2.23 | 0.00 | 1.22 | -17.42 | 64.58 | -5.45 | 167.72 | 0.4280 | 757.0 | 572.8 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -16.00 | 64.24 | -5.79 | 166.17 | 0.4072 | 913.0 | 657.4 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -18.90 | 63.63 | -6.40 | 166.51 | 0.4540 | 631.0 | 549.6 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -20.50 | 61.06 | -8.97 | 162.52 | 0.4883 | 710.0 | 627.6 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -18.80 | 59.96 | -10.07 | 159.25 | 0.4691 | -696.0 | -653.9 | |
| 1.51 | 3.03 | 0.82 | 1.63 | -13.73 | 60.01 | -10.02 | 154.58 | 0.3956 | -989.5 | -864.4 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -13.38 | 59.87 | -10.16 | 153.87 | 0.3915 | -866.0 | -722.5 | |
| 0.00 | 1.87 | 0.00 | 1.03 | -16.15 | 58.23 | -11.81 | 153.50 | 0.4423 | -774.0 | -642.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
