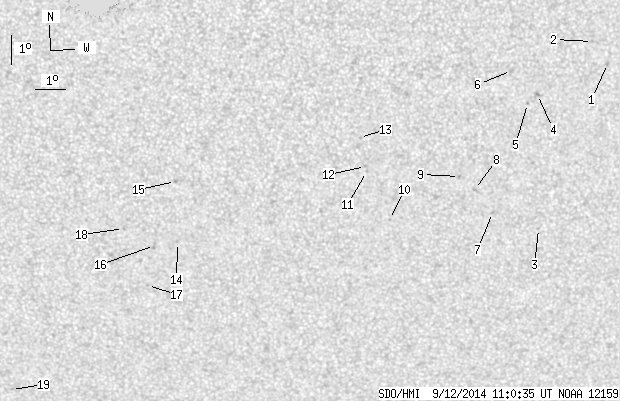

SDO HMI 2014-09-12 11:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 24.24 | 0.00 | 13.90 | -21.65 | 76.31 | 6.83 | 193.39 | 0.5048 | 2.7 | -69.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-12 11:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.42 | 0.00 | 0.81 | -18.26 | 82.98 | 13.50 | 207.43 | 0.4830 | 716.0 | 581.2 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -17.51 | 82.43 | 12.95 | 207.23 | 0.4690 | 733.0 | 598.3 | |
| 0.00 | 1.16 | 0.00 | 0.68 | -23.86 | 81.17 | 11.68 | 199.82 | 0.5484 | 571.0 | 488.5 | |
| 0.00 | 2.94 | 0.00 | 1.66 | -19.23 | 80.77 | 11.28 | 202.62 | 0.4822 | -733.0 | -549.4 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -19.53 | 80.46 | 10.98 | 201.83 | 0.4846 | -643.0 | -514.7 | |
| 0.00 | 2.76 | 0.00 | 1.54 | -18.40 | 79.87 | 10.38 | 201.67 | 0.4652 | -589.0 | -472.6 | |
| 0.00 | 1.34 | 0.00 | 0.78 | -23.26 | 79.57 | 10.09 | 197.67 | 0.5325 | 570.0 | 465.3 | |
| 0.00 | 1.25 | 0.00 | 0.72 | -22.44 | 78.92 | 9.43 | 197.07 | 0.5181 | 657.0 | 574.4 | |
| 0.00 | 1.42 | 0.00 | 0.82 | -21.97 | 78.39 | 8.91 | 196.45 | 0.5092 | 842.0 | 596.6 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -23.43 | 76.16 | 6.68 | 191.84 | 0.5222 | 608.0 | 510.5 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -21.74 | 75.33 | 5.85 | 191.07 | 0.4949 | 607.0 | 495.7 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -21.57 | 75.29 | 5.81 | 191.07 | 0.4922 | 750.0 | 619.9 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -20.57 | 75.06 | 5.57 | 191.05 | 0.4765 | 497.0 | 478.0 | |
| 0.00 | 0.45 | 0.00 | 0.26 | -24.18 | 69.17 | -0.31 | 179.45 | 0.5231 | -859.0 | -734.0 | |
| 0.00 | 1.25 | 0.00 | 0.71 | -22.04 | 69.11 | -0.37 | 179.30 | 0.4909 | -761.0 | -633.8 | |
| 0.00 | 2.05 | 0.00 | 1.19 | -24.28 | 68.41 | -1.08 | 178.13 | 0.5249 | -759.0 | -690.1 | |
| 0.00 | 0.98 | 0.00 | 0.58 | -25.71 | 68.16 | -1.32 | 177.81 | 0.5462 | -766.0 | -608.5 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -23.69 | 67.39 | -2.09 | 176.28 | 0.5167 | -773.0 | -617.2 | |
| 0.00 | 0.62 | 0.00 | 0.39 | -29.58 | 63.37 | -6.11 | 171.21 | 0.6079 | -617.0 | -536.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
