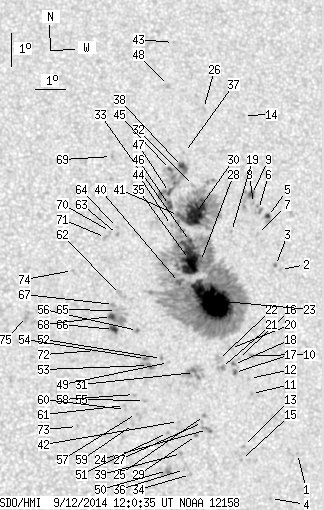

SDO HMI 2014-09-12 12:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 166.10 | 956.54 | 87.91 | 505.55 | 16.11 | 87.69 | 18.76 | 297.39 | 0.3508 | 538.6 | 308.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-12 12:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.43 | 10.49 | 90.52 | 21.58 | 280.30 | 0.3692 | -731.0 | -615.0 | |
| 0.00 | 1.60 | 0.00 | 0.86 | 16.09 | 90.48 | 21.55 | 294.75 | 0.3902 | 785.0 | 548.3 | |
| 0.00 | 1.69 | 0.00 | 0.91 | 16.22 | 90.33 | 21.39 | 295.19 | 0.3887 | 900.0 | 746.1 | |
| 0.00 | 0.80 | 0.00 | 0.42 | 9.18 | 89.54 | 20.61 | 276.90 | 0.3515 | -817.0 | -671.6 | |
| 1.51 | 5.52 | 0.82 | 2.98 | 17.73 | 90.24 | 21.30 | 298.84 | 0.3967 | 751.6 | 668.4 | |
| 0.00 | 6.32 | 0.00 | 3.40 | 17.96 | 89.96 | 21.03 | 299.64 | 0.3944 | 605.0 | 658.2 | |
| 0.00 | 1.25 | 0.00 | 0.67 | 17.20 | 89.83 | 20.90 | 297.99 | 0.3875 | 739.0 | 643.2 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 18.15 | 89.82 | 20.88 | 300.24 | 0.3937 | 835.0 | 609.1 | |
| 2.58 | 13.00 | 1.39 | 6.99 | 18.43 | 89.78 | 20.85 | 300.91 | 0.3952 | 792.2 | 704.0 | |
| 0.00 | 1.96 | 0.00 | 1.04 | 13.52 | 89.25 | 20.31 | 289.17 | 0.3589 | -588.0 | -513.0 | |
| 0.00 | 1.16 | 0.00 | 0.61 | 12.37 | 89.15 | 20.21 | 286.09 | 0.3528 | -620.0 | -636.5 | |
| 0.00 | 1.16 | 0.00 | 0.61 | 12.83 | 89.12 | 20.19 | 287.37 | 0.3541 | -657.0 | -521.3 | |
| 0.00 | 1.25 | 0.00 | 0.66 | 10.78 | 88.76 | 19.83 | 281.77 | 0.3419 | -935.0 | -714.6 | |
| 0.00 | 0.89 | 0.00 | 0.48 | 20.87 | 89.85 | 20.91 | 306.16 | 0.4148 | 699.0 | 575.0 | |
| 0.00 | 1.16 | 0.00 | 0.61 | 10.40 | 88.67 | 19.74 | 280.67 | 0.3395 | -748.0 | -661.9 | |
| 0.00 | 1.25 | 0.00 | 0.66 | 13.45 | 88.81 | 19.88 | 289.30 | 0.3519 | -466.0 | -405.1 | |
| 0.53 | 2.23 | 0.28 | 1.18 | 13.03 | 88.64 | 19.71 | 288.26 | 0.3475 | -767.0 | -647.6 | |
| 0.00 | 2.23 | 0.00 | 1.18 | 13.28 | 88.63 | 19.70 | 288.95 | 0.3483 | -785.0 | -666.0 | |
| 0.00 | 1.34 | 0.00 | 0.71 | 17.33 | 88.97 | 20.04 | 299.18 | 0.3762 | 746.0 | 620.1 | |
| 0.00 | 2.76 | 0.00 | 1.46 | 13.77 | 88.58 | 19.64 | 290.35 | 0.3497 | 882.0 | 652.2 | |
| 0.00 | 4.54 | 0.00 | 2.39 | 13.20 | 88.23 | 19.30 | 289.05 | 0.3418 | -775.0 | -656.0 | |
| 0.00 | 5.07 | 0.00 | 2.67 | 13.45 | 88.15 | 19.22 | 289.80 | 0.3417 | 250.0 | 231.6 | |
| 71.66 | 733.93 | 37.88 | 388.21 | 15.25 | 88.12 | 19.18 | 294.78 | 0.3507 | 1450.9 | 456.9 | |
| 0.00 | 4.63 | 0.00 | 2.42 | 11.35 | 87.63 | 18.70 | 284.01 | 0.3253 | -819.0 | -745.2 | |
| 0.00 | 1.69 | 0.00 | 0.89 | 11.77 | 87.56 | 18.63 | 285.34 | 0.3257 | -890.0 | -746.2 | |
| 0.00 | 1.60 | 0.00 | 0.87 | 21.15 | 88.51 | 19.57 | 308.38 | 0.4003 | 681.0 | 573.1 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 11.56 | 87.48 | 18.55 | 284.76 | 0.3237 | -824.0 | -660.8 | |
| 0.27 | -23.00 | 0.14 | -23.00 | 16.45 | 87.84 | 18.90 | 298.24 | 0.3542 | 768.7 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.74 | 11.18 | 87.26 | 18.33 | 283.71 | 0.3189 | -814.0 | -700.2 | |
| 33.56 | -23.00 | 17.84 | -23.00 | 17.93 | 87.83 | 18.90 | 301.95 | 0.3647 | 1075.3 | 999999 | |
| 0.00 | 17.71 | 0.00 | 9.28 | 13.09 | 87.34 | 18.40 | 289.43 | 0.3275 | -548.0 | -550.3 | |
| 0.00 | 2.14 | 0.00 | 1.14 | 18.79 | 87.86 | 18.93 | 303.97 | 0.3719 | 100.0 | 62.8 | |
| 1.69 | -23.00 | 0.90 | -23.00 | 17.08 | 87.57 | 18.64 | 300.15 | 0.3548 | 924.9 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 10.01 | 87.00 | 18.06 | 280.16 | 0.3115 | -779.0 | -618.4 | |
| 36.85 | -23.00 | 19.48 | -23.00 | 16.53 | 87.48 | 18.55 | 298.84 | 0.3496 | 1146.0 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.42 | 10.17 | 86.81 | 17.88 | 280.75 | 0.3089 | -855.0 | -725.1 | |
| 0.00 | 0.45 | 0.00 | 0.24 | 19.82 | 87.68 | 18.75 | 306.57 | 0.3781 | -652.0 | -583.2 | |
| 3.65 | 52.79 | 1.95 | 28.05 | 19.39 | 87.56 | 18.63 | 305.75 | 0.3729 | -738.7 | 139.5 | |
| 0.00 | 1.51 | 0.00 | 0.79 | 10.66 | 86.74 | 17.81 | 282.35 | 0.3090 | -875.0 | -771.4 | |
| 2.14 | -23.00 | 1.12 | -23.00 | 15.84 | 87.08 | 18.15 | 297.48 | 0.3392 | 1073.8 | 999999 | |
| 0.27 | -23.00 | 0.14 | -23.00 | 17.89 | 87.26 | 18.32 | 302.57 | 0.3565 | 939.3 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 11.63 | 86.71 | 17.77 | 285.45 | 0.3116 | -785.0 | -622.6 | |
| 0.00 | 0.62 | 0.00 | 0.34 | 23.25 | 87.77 | 18.84 | 313.57 | 0.4112 | 572.0 | 397.3 | |
| 0.00 | 1.34 | 0.00 | 0.71 | 17.59 | 86.99 | 18.06 | 302.17 | 0.3506 | 720.0 | 541.1 | |
| 0.80 | -38.00 | 0.43 | -38.00 | 19.31 | 87.15 | 18.21 | 306.13 | 0.3668 | -738.1 | 999999 | |
| 2.85 | -38.00 | 1.51 | -38.00 | 18.21 | 86.99 | 18.06 | 303.70 | 0.3555 | 1042.0 | 999999 | |
| 1.60 | -38.00 | 0.85 | -38.00 | 18.60 | 87.04 | 18.10 | 304.62 | 0.3593 | 817.3 | 999999 | |
| 0.00 | 1.87 | 0.00 | 1.01 | 21.91 | 87.41 | 18.48 | 311.44 | 0.3939 | 703.0 | 599.6 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 13.42 | 86.52 | 17.58 | 291.16 | 0.3164 | -536.0 | -409.8 | |
| 0.00 | 7.03 | 0.00 | 3.65 | 10.16 | 86.26 | 17.33 | 280.98 | 0.3000 | -1026.0 | -838.2 | |
| 0.00 | 1.25 | 0.00 | 0.65 | 11.31 | 86.33 | 17.40 | 284.69 | 0.3045 | -931.0 | -792.7 | |
| 0.00 | 1.34 | 0.00 | 0.70 | 13.55 | 86.30 | 17.36 | 291.77 | 0.3137 | -675.0 | -562.3 | |
| 0.00 | 5.88 | 0.00 | 3.06 | 13.36 | 85.86 | 16.93 | 291.60 | 0.3060 | -943.0 | -823.6 | |
| 0.00 | 2.23 | 0.00 | 1.16 | 13.57 | 85.78 | 16.84 | 292.36 | 0.3059 | -1092.0 | -915.6 | |
| 0.00 | 1.87 | 0.00 | 0.97 | 12.30 | 85.66 | 16.72 | 288.44 | 0.2976 | -935.0 | -741.9 | |
| 0.00 | 2.14 | 0.00 | 1.11 | 14.43 | 85.58 | 16.65 | 295.20 | 0.3080 | 560.0 | 357.4 | |
| 0.00 | 0.89 | 0.00 | 0.46 | 11.92 | 85.37 | 16.44 | 287.42 | 0.2915 | -817.0 | -803.7 | |
| 0.00 | 1.42 | 0.00 | 0.74 | 12.50 | 85.35 | 16.41 | 289.35 | 0.2937 | -896.0 | -766.6 | |
| 0.00 | 1.16 | 0.00 | 0.60 | 11.59 | 85.26 | 16.32 | 286.41 | 0.2883 | -947.0 | -659.4 | |
| 0.00 | 1.16 | 0.00 | 0.60 | 12.05 | 85.03 | 16.09 | 288.17 | 0.2866 | -933.0 | -711.0 | |
| 0.00 | 1.16 | 0.00 | 0.60 | 12.17 | 85.00 | 16.07 | 288.61 | 0.2868 | -1035.0 | -817.7 | |
| 0.00 | 5.25 | 0.00 | 2.73 | 15.55 | 85.12 | 16.19 | 299.11 | 0.3087 | 200.0 | 264.0 | |
| 0.00 | 1.34 | 0.00 | 0.70 | 17.38 | 85.18 | 16.25 | 304.15 | 0.3241 | 912.0 | 771.7 | |
| 0.00 | 1.16 | 0.00 | 0.61 | 17.59 | 85.20 | 16.27 | 304.69 | 0.3262 | 791.0 | 602.0 | |
| 0.00 | 2.05 | 0.00 | 1.06 | 15.06 | 84.95 | 16.02 | 297.91 | 0.3028 | -541.0 | -445.9 | |
| 3.38 | 5.52 | 1.75 | 2.86 | 14.49 | 84.81 | 15.88 | 296.34 | 0.2968 | -1010.3 | -810.0 | |
| 0.00 | 2.05 | 0.00 | 1.06 | 15.25 | 84.87 | 15.93 | 298.58 | 0.3029 | -783.0 | -732.8 | |
| 2.76 | 13.17 | 1.43 | 6.84 | 14.89 | 84.78 | 15.84 | 297.61 | 0.2990 | -1093.7 | -345.4 | |
| 0.00 | 1.87 | 0.00 | 0.99 | 19.78 | 85.22 | 16.29 | 310.10 | 0.3465 | 747.0 | 649.0 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 17.48 | 84.96 | 16.03 | 304.76 | 0.3219 | 638.0 | 419.9 | |
| 0.00 | 1.96 | 0.00 | 1.02 | 17.30 | 84.78 | 15.85 | 304.56 | 0.3180 | 807.0 | 640.3 | |
| 0.00 | 0.89 | 0.00 | 0.46 | 13.87 | 84.18 | 15.25 | 295.19 | 0.2834 | -835.0 | -620.7 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 11.59 | 83.47 | 14.53 | 288.04 | 0.2597 | -815.0 | -717.6 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 16.33 | 83.62 | 14.69 | 303.69 | 0.2937 | -655.0 | -522.1 | |
| 0.00 | 5.16 | 0.00 | 2.65 | 14.97 | 82.04 | 13.10 | 302.22 | 0.2601 | -855.0 | -669.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
