SDO HMI 2014-09-12 14:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 130.36 | 631.35 | 80.29 | 384.23 | -14.33 | 96.08 | 28.24 | 232.13 | 0.5818 | -32.2 | -99.3 | |
|
previous
or next observation for the same group /

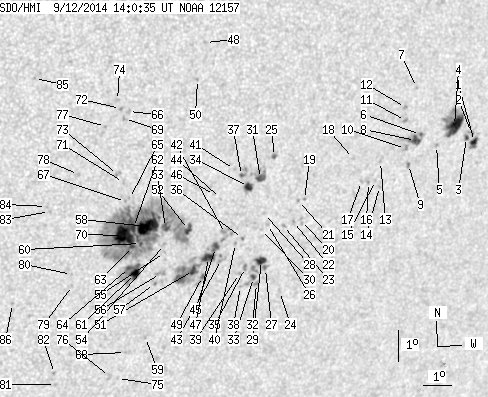

back to the solar disc SDO HMI 2014-09-12 14:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.20 | 7.21 | 2.15 | 4.84 | -12.42 | 105.71 | 37.88 | 242.64 | 0.6775 | 580.7 | 470.9 | |
| 0.00 | 2.85 | 0.00 | 1.90 | -12.12 | 105.54 | 37.71 | 242.93 | 0.6739 | 575.0 | 538.1 | |
| 1.33 | 2.49 | 0.89 | 1.66 | -12.27 | 105.37 | 37.54 | 242.63 | 0.6727 | 823.2 | 716.3 | |
| 19.22 | 39.15 | 12.71 | 25.84 | -11.84 | 104.84 | 37.00 | 242.87 | 0.6642 | 912.4 | 619.4 | |
| 0.00 | 1.60 | 0.00 | 1.05 | -12.43 | 104.24 | 36.40 | 241.67 | 0.6607 | 727.0 | 604.6 | |
| 0.71 | 15.39 | 0.46 | 10.00 | -12.03 | 103.56 | 35.73 | 241.77 | 0.6505 | 788.8 | 666.1 | |
| 0.00 | 1.25 | 0.00 | 0.80 | -10.51 | 103.19 | 35.36 | 243.65 | 0.6372 | 534.0 | 517.1 | |
| 5.78 | -6.00 | 3.76 | -6.00 | -12.21 | 103.40 | 35.56 | 241.41 | 0.6497 | 889.4 | 999999 | |
| 0.36 | 1.96 | 0.23 | 1.28 | -12.96 | 103.25 | 35.42 | 240.28 | 0.6526 | 635.5 | 520.6 | |
| 0.00 | 2.40 | 0.00 | 1.56 | -12.44 | 103.05 | 35.22 | 240.86 | 0.6471 | 761.0 | 709.0 | |
| 0.00 | 1.69 | 0.00 | 1.09 | -11.54 | 102.92 | 35.08 | 242.02 | 0.6400 | 856.0 | 758.0 | |
| 0.00 | 1.78 | 0.00 | 1.14 | -11.12 | 102.86 | 35.03 | 242.57 | 0.6368 | 756.0 | 677.8 | |
| 0.00 | 0.80 | 0.00 | 0.51 | -12.78 | 102.16 | 34.33 | 239.75 | 0.6390 | 681.0 | 600.9 | |
| 0.00 | 1.42 | 0.00 | 0.92 | -13.59 | 102.26 | 34.42 | 238.71 | 0.6453 | 662.0 | 580.6 | |
| 0.00 | 0.98 | 0.00 | 0.63 | -13.39 | 102.07 | 34.24 | 238.85 | 0.6418 | 664.0 | 559.4 | |
| 0.00 | 1.25 | 0.00 | 0.80 | -13.43 | 101.82 | 33.98 | 238.60 | 0.6392 | 730.0 | 587.0 | |
| 0.00 | 1.60 | 0.00 | 1.03 | -13.38 | 101.55 | 33.71 | 238.47 | 0.6358 | 657.0 | 485.2 | |
| 0.00 | 1.16 | 0.00 | 0.73 | -12.61 | 101.13 | 33.30 | 239.22 | 0.6259 | 740.0 | 601.1 | |
| 0.00 | 1.07 | 0.00 | 0.67 | -13.81 | 99.51 | 31.67 | 236.25 | 0.6155 | 685.0 | 632.9 | |
| 0.00 | 3.20 | 0.00 | 2.02 | -14.49 | 99.50 | 31.67 | 235.31 | 0.6204 | 642.0 | 526.8 | |
| 0.00 | 1.25 | 0.00 | 0.78 | -13.83 | 99.29 | 31.45 | 236.04 | 0.6131 | 691.0 | 532.8 | |
| 0.00 | 1.25 | 0.00 | 0.78 | -14.50 | 99.21 | 31.38 | 235.05 | 0.6172 | 799.0 | 659.6 | |
| 0.00 | 1.69 | 0.00 | 1.06 | -14.60 | 98.86 | 31.03 | 234.61 | 0.6141 | 802.0 | 607.1 | |
| 0.00 | 1.69 | 0.00 | 1.08 | -16.77 | 99.08 | 31.25 | 231.92 | 0.6333 | 516.0 | 374.5 | |
| 0.71 | 1.87 | 0.44 | 1.14 | -12.34 | 98.21 | 30.38 | 237.23 | 0.5898 | -621.2 | -504.1 | |
| 0.00 | 1.60 | 0.00 | 1.00 | -14.53 | 98.27 | 30.43 | 234.18 | 0.6069 | 726.0 | 587.5 | |
| 0.00 | 1.33 | 0.00 | 0.84 | -15.97 | 98.43 | 30.59 | 232.38 | 0.6200 | 518.0 | 455.6 | |
| 0.00 | 1.25 | 0.00 | 0.77 | -14.16 | 98.11 | 30.27 | 234.55 | 0.6022 | 633.0 | 473.8 | |
| 5.34 | 7.65 | 3.35 | 4.80 | -15.70 | 98.24 | 30.40 | 232.57 | 0.6157 | 859.0 | 660.6 | |
| 0.00 | 0.89 | 0.00 | 0.55 | -14.68 | 98.07 | 30.24 | 233.81 | 0.6059 | 634.0 | 533.3 | |
| 3.83 | 13.35 | 2.34 | 8.16 | -13.02 | 97.80 | 29.97 | 235.89 | 0.5900 | -754.3 | -680.9 | |
| 0.00 | 2.49 | 0.00 | 1.57 | -16.45 | 98.18 | 30.35 | 231.53 | 0.6211 | 545.0 | 442.1 | |
| 1.60 | 10.59 | 1.01 | 6.65 | -16.24 | 98.04 | 30.20 | 231.67 | 0.6179 | 709.3 | 582.1 | |
| 4.63 | 7.65 | 2.83 | 4.67 | -13.25 | 97.40 | 29.57 | 235.20 | 0.5871 | -781.3 | -469.6 | |
| 0.00 | 2.67 | 0.00 | 1.67 | -15.89 | 97.69 | 29.85 | 231.82 | 0.6113 | 946.0 | 713.2 | |
| 0.00 | 1.33 | 0.00 | 0.83 | -14.93 | 97.43 | 29.59 | 232.88 | 0.6007 | 819.0 | 730.7 | |
| 0.80 | 5.34 | 0.49 | 3.24 | -12.88 | 97.11 | 29.27 | 235.47 | 0.5808 | -826.3 | -747.4 | |
| 0.00 | 1.07 | 0.00 | 0.67 | -16.51 | 97.61 | 29.77 | 230.93 | 0.6155 | 680.0 | 527.6 | |
| 0.00 | 1.51 | 0.00 | 0.94 | -16.07 | 97.50 | 29.66 | 231.40 | 0.6108 | 726.0 | 548.3 | |
| 0.00 | 1.42 | 0.00 | 0.88 | -15.08 | 97.20 | 29.36 | 232.46 | 0.5993 | 746.0 | 572.2 | |
| 0.00 | 0.80 | 0.00 | 0.48 | -12.67 | 96.83 | 29.00 | 235.52 | 0.5759 | -760.0 | -722.6 | |
| 0.00 | 9.34 | 0.00 | 5.73 | -14.72 | 96.79 | 28.95 | 232.56 | 0.5919 | 763.0 | 735.6 | |
| 0.00 | 5.16 | 0.00 | 3.19 | -15.57 | 96.77 | 28.94 | 231.39 | 0.5987 | 446.0 | 407.5 | |
| 0.00 | 1.07 | 0.00 | 0.65 | -13.57 | 96.45 | 28.62 | 233.85 | 0.5787 | -585.0 | -433.9 | |
| 3.38 | 60.87 | 2.07 | 37.27 | -15.16 | 96.49 | 28.66 | 231.68 | 0.5923 | 973.4 | 293.5 | |
| 0.00 | 1.16 | 0.00 | 0.70 | -13.43 | 96.22 | 28.38 | 233.84 | 0.5749 | -637.0 | -475.8 | |
| 6.85 | -45.00 | 4.21 | -45.00 | -15.47 | 96.29 | 28.46 | 231.05 | 0.5927 | 944.1 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.83 | -8.56 | 95.41 | 27.57 | 240.60 | 0.5274 | -690.0 | -513.1 | |
| 0.80 | 5.78 | 0.49 | 3.56 | -16.08 | 96.17 | 28.34 | 230.11 | 0.5966 | 659.2 | 515.1 | |
| 0.00 | 1.33 | 0.00 | 0.78 | -9.71 | 95.22 | 27.39 | 238.55 | 0.5336 | -746.0 | -585.1 | |
| 4.18 | -45.00 | 2.56 | -45.00 | -15.87 | 95.82 | 27.98 | 230.05 | 0.5909 | 877.2 | 999999 | |
| 4.00 | 347.13 | 2.42 | 206.70 | -14.51 | 95.45 | 27.61 | 231.54 | 0.5752 | 698.6 | -357.3 | |
| 3.65 | -52.00 | 2.19 | -52.00 | -14.39 | 94.62 | 26.79 | 230.86 | 0.5650 | -768.0 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.80 | -14.95 | 94.66 | 26.83 | 230.12 | 0.5703 | -697.0 | -566.7 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -15.21 | 94.70 | 26.86 | 229.80 | 0.5730 | -627.0 | -538.5 | |
| 0.00 | 5.25 | 0.00 | 3.18 | -15.89 | 94.65 | 26.82 | 228.82 | 0.5787 | -757.0 | -666.4 | |
| 0.00 | 1.25 | 0.00 | 0.76 | -16.21 | 94.49 | 26.65 | 228.22 | 0.5798 | -506.0 | -486.1 | |
| 22.96 | -52.00 | 13.68 | -52.00 | -14.32 | 93.99 | 26.15 | 230.28 | 0.5573 | -1064.4 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.66 | -17.99 | 94.44 | 26.61 | 225.87 | 0.5957 | -672.0 | -558.9 | |
| 1.25 | -52.00 | 0.74 | -52.00 | -14.86 | 93.81 | 25.98 | 229.33 | 0.5603 | -600.4 | 999999 | |
| 6.41 | -52.00 | 3.85 | -52.00 | -15.84 | 93.77 | 25.93 | 227.95 | 0.5688 | 863.9 | 999999 | |
| 3.74 | -52.00 | 2.22 | -52.00 | -14.33 | 93.50 | 25.67 | 229.75 | 0.5520 | -1104.7 | 999999 | |
| 0.27 | -52.00 | 0.16 | -52.00 | -14.94 | 93.55 | 25.71 | 228.93 | 0.5581 | -642.3 | 999999 | |
| 1.60 | -52.00 | 0.96 | -52.00 | -15.63 | 93.53 | 25.70 | 227.97 | 0.5643 | 132.1 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -13.38 | 93.25 | 25.42 | 230.85 | 0.5406 | -765.0 | -608.6 | |
| 0.00 | 2.14 | 0.00 | 1.23 | -10.58 | 92.94 | 25.11 | 234.81 | 0.5124 | -542.0 | -552.2 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -13.47 | 93.13 | 25.29 | 230.58 | 0.5400 | -830.0 | -696.0 | |
| 0.00 | 1.07 | 0.00 | 0.66 | -18.45 | 93.81 | 25.97 | 224.61 | 0.5938 | -778.0 | -634.8 | |
| 0.00 | 2.22 | 0.00 | 1.28 | -10.80 | 92.82 | 24.99 | 234.33 | 0.5128 | -789.0 | -609.0 | |
| 23.76 | -52.00 | 14.08 | -52.00 | -14.57 | 93.19 | 25.35 | 229.06 | 0.5507 | -1146.0 | 999999 | |
| 0.00 | 1.78 | 0.00 | 1.04 | -12.85 | 92.99 | 25.15 | 231.34 | 0.5328 | -577.0 | -506.1 | |
| 0.00 | 1.25 | 0.00 | 0.72 | -10.47 | 92.66 | 24.83 | 234.68 | 0.5080 | -702.0 | -725.9 | |
| 0.00 | 2.94 | 0.00 | 1.71 | -12.58 | 92.76 | 24.92 | 231.48 | 0.5277 | 638.0 | 541.7 | |
| 0.00 | 1.78 | 0.00 | 1.02 | -10.21 | 92.54 | 24.70 | 234.97 | 0.5043 | -747.0 | -634.3 | |
| 0.00 | 0.98 | 0.00 | 0.61 | -19.31 | 93.67 | 25.83 | 223.40 | 0.6007 | -565.0 | -451.5 | |
| 0.00 | 3.56 | 0.00 | 2.19 | -19.23 | 93.37 | 25.53 | 223.17 | 0.5971 | -624.0 | -523.7 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -11.02 | 92.20 | 24.37 | 233.28 | 0.5072 | -844.0 | -635.8 | |
| 0.00 | 1.42 | 0.00 | 0.82 | -12.50 | 91.42 | 23.59 | 230.05 | 0.5117 | -701.0 | -564.1 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -16.11 | 91.62 | 23.79 | 225.13 | 0.5489 | -833.0 | -652.3 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -15.74 | 91.54 | 23.71 | 225.52 | 0.5445 | -679.0 | -575.8 | |
| 0.00 | 1.42 | 0.00 | 0.86 | -19.39 | 91.49 | 23.66 | 220.84 | 0.5811 | -382.0 | -330.2 | |
| 0.00 | 1.16 | 0.00 | 0.70 | -19.01 | 91.40 | 23.57 | 221.18 | 0.5763 | -855.0 | -671.4 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -13.65 | 90.56 | 22.73 | 227.27 | 0.5131 | -747.0 | -628.9 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -13.48 | 90.44 | 22.61 | 227.37 | 0.5101 | -438.0 | -506.0 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -9.37 | 89.71 | 21.87 | 233.03 | 0.4619 | -808.0 | -604.0 | |
| 0.00 | 1.16 | 0.00 | 0.68 | -16.59 | 89.63 | 21.80 | 222.00 | 0.5339 | -846.0 | -697.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
