Sunspot Group 12158

group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

12158	159.59	851.45	85.60	455.86	15.66	87.71	20.98	294.06	0.3803	570.8	278.4

previous or next observation for the same group / back to the solar disc

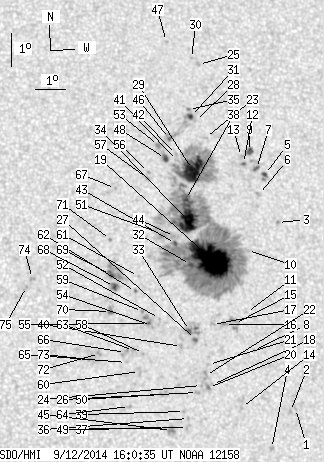

SDO HMI 2014-09-12 16:00:35 UT
No observation available

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

1	0.00	1.51	0.00	0.82	10.53	90.50	23.77	279.76	0.4038	-872.0	-579.8
2	0.00	2.14	0.00	1.15	10.45	90.33	23.60	279.60	0.4010	-808.0	-642.0
3	0.00	1.42	0.00	0.78	16.19	90.49	23.76	293.23	0.4229	926.0	766.8
4	0.00	2.49	0.00	1.34	9.36	89.61	22.88	277.00	0.3882	-926.0	-713.9
5	1.25	5.07	0.68	2.78	17.68	90.25	23.52	296.72	0.4274	751.6	656.5
6	0.00	2.40	0.00	1.31	17.08	89.96	23.23	295.62	0.4199	749.0	632.7
7	1.25	5.69	0.68	3.11	17.87	90.00	23.27	297.36	0.4251	755.1	545.1
8	0.00	1.51	0.00	0.81	12.35	89.26	22.52	284.77	0.3887	-588.0	-544.4
9	2.49	4.27	1.36	2.34	18.41	89.83	23.10	298.66	0.4260	791.5	623.0
10	0.00	1.42	0.00	0.77	15.39	89.37	22.64	292.18	0.4025	-54.0	-37.5
11	0.00	0.98	0.00	0.53	13.51	89.13	22.40	287.76	0.3908	-349.0	-257.3
12	0.53	1.69	0.29	0.92	18.05	89.57	22.84	298.11	0.4202	954.5	806.8
13	0.00	1.78	0.00	0.97	18.27	89.54	22.80	298.62	0.4210	698.0	596.0
14	0.00	0.89	0.00	0.48	10.65	88.71	21.98	280.58	0.3758	-750.0	-636.4
15	0.00	7.56	0.00	4.05	13.20	88.70	21.97	287.22	0.3830	-188.0	-550.5
16	0.00	2.76	0.00	1.47	13.18	88.37	21.63	287.39	0.3778	-770.0	-611.7
17	0.00	1.87	0.00	1.00	13.20	87.97	21.24	287.68	0.3717	-540.0	-379.4
18	0.00	0.89	0.00	0.47	11.39	87.81	21.08	282.91	0.3633	-568.0	-483.6
19	76.86	539.18	41.19	288.72	15.17	88.13	21.40	292.60	0.3831	1513.4	481.7
20	0.00	2.22	0.00	1.18	11.30	87.67	20.94	282.74	0.3609	-821.0	-723.7
21	0.00	1.07	0.00	0.57	12.00	87.73	21.00	284.61	0.3638	-689.0	-571.8
22	0.00	4.00	0.00	2.12	11.67	87.60	20.87	283.78	0.3608	-443.0	-678.7
23	0.00	1.78	0.00	0.97	18.91	88.39	21.65	301.13	0.4096	743.0	524.0
24	0.00	0.89	0.00	0.47	11.37	87.45	20.72	283.04	0.3575	-854.0	-659.9
25	0.00	1.96	0.00	1.07	21.17	88.48	21.75	305.81	0.4278	745.0	661.0
26	0.00	2.49	0.00	1.32	11.17	87.30	20.57	282.53	0.3546	-803.0	-668.7
27	0.62	2.14	0.33	1.13	12.77	87.37	20.63	286.91	0.3608	-871.0	-743.7
28	0.00	0.98	0.00	0.53	19.44	88.12	21.39	302.59	0.4098	-85.0	-65.8
29	34.96	110.58	18.84	59.67	17.95	87.82	21.08	299.55	0.3951	1111.3	336.7
30	0.00	1.07	0.00	0.58	21.37	88.26	21.53	306.45	0.4267	657.0	504.2
31	2.05	8.72	1.11	4.72	19.58	87.96	21.23	303.04	0.4088	-987.2	-409.5
32	2.22	-19.00	1.19	-19.00	15.05	87.42	20.68	292.89	0.3718	1130.7	999999
33	0.98	13.17	0.52	6.99	13.05	87.19	20.46	287.79	0.3592	-893.0	-465.9
34	25.44	-19.00	13.62	-19.00	16.39	87.49	20.76	296.18	0.3806	1215.0	999999
35	0.00	1.42	0.00	0.77	19.79	87.93	21.19	303.55	0.4099	-671.0	-567.9
36	0.00	1.25	0.00	0.66	10.40	86.95	20.22	280.49	0.3472	-728.0	-586.1
37	0.00	2.76	0.00	1.46	10.13	86.90	20.17	279.73	0.3459	-771.0	-626.8
38	1.42	-19.00	0.76	-19.00	17.04	87.47	20.74	297.77	0.3842	1055.0	999999
39	0.00	1.16	0.00	0.61	10.61	86.83	20.10	281.16	0.3458	-853.0	-754.2
40	0.00	2.14	0.00	1.13	12.58	86.89	20.16	286.69	0.3526	-871.0	-709.5
41	0.00	1.33	0.00	0.72	18.24	87.34	20.61	300.73	0.3906	372.0	419.8
42	0.00	1.42	0.00	0.77	18.43	87.33	20.60	301.17	0.3918	359.0	270.0
43	1.25	-19.00	0.66	-19.00	15.71	86.98	20.25	294.95	0.3691	1078.5	999999
44	0.00	5.96	0.00	3.18	15.93	86.97	20.24	295.51	0.3702	799.0	657.4
45	0.00	5.34	0.00	2.81	10.06	86.37	19.64	279.71	0.3373	-1091.0	-875.1
46	0.80	6.49	0.43	3.50	18.93	87.16	20.43	302.50	0.3931	712.4	423.5
47	0.00	1.25	0.00	0.68	21.93	87.48	20.75	308.50	0.4217	710.0	578.2
48	2.40	4.63	1.29	2.48	18.32	86.95	20.21	301.35	0.3857	994.0	760.8
49	0.00	1.07	0.00	0.56	10.16	86.18	19.45	280.07	0.3344	-916.0	-643.3
50	0.00	1.87	0.00	0.98	11.16	86.12	19.39	283.06	0.3359	-989.0	-777.8
51	0.00	10.59	0.00	5.63	16.04	86.52	19.79	296.24	0.3643	578.0	432.1
52	0.00	0.71	0.00	0.38	13.46	86.24	19.51	289.59	0.3462	-576.0	-496.1
53	0.00	2.85	0.00	1.53	18.73	86.76	20.03	302.50	0.3862	829.0	722.9
54	0.00	1.42	0.00	0.75	13.26	85.96	19.23	289.25	0.3410	-516.0	-603.4
55	0.44	4.71	0.23	2.48	13.32	85.86	19.13	289.50	0.3398	-1026.2	-810.4
56	0.00	1.07	0.00	0.57	17.92	86.32	19.59	301.10	0.3742	683.0	593.2
57	0.00	1.69	0.00	0.90	17.74	86.27	19.54	300.72	0.3721	890.0	773.3
58	0.00	0.80	0.00	0.42	12.42	85.63	18.90	287.08	0.3323	-895.0	-747.9
59	0.00	1.51	0.00	0.80	13.69	85.70	18.97	290.69	0.3390	-828.0	-680.5
60	0.00	3.74	0.00	1.96	11.88	85.46	18.73	285.60	0.3276	-864.0	-745.9
61	0.00	0.98	0.00	0.52	14.76	85.66	18.93	293.70	0.3441	569.0	473.9
62	0.00	1.16	0.00	0.61	14.31	85.52	18.79	292.58	0.3395	598.0	559.4
63	0.00	1.87	0.00	0.98	12.52	85.31	18.58	287.62	0.3278	-1050.0	-755.8
64	0.00	1.78	0.00	0.93	10.84	85.06	18.33	282.64	0.3179	-864.0	-733.0
65	0.00	0.89	0.00	0.47	12.17	85.06	18.32	286.74	0.3223	-937.0	-730.8
66	0.00	3.20	0.00	1.68	12.47	85.05	18.31	287.67	0.3234	-819.0	-783.6
67	0.00	0.98	0.00	0.52	17.47	85.17	18.44	301.39	0.3549	817.0	712.3
68	1.87	4.45	0.98	2.33	14.49	84.85	18.12	293.75	0.3304	-1031.3	-880.6
69	2.05	18.68	1.07	9.81	14.86	84.75	18.02	294.90	0.3310	-1090.3	-407.8
70	0.71	4.71	0.37	2.47	13.74	84.65	17.92	291.76	0.3233	-1024.6	-840.6
71	0.00	1.33	0.00	0.70	15.92	84.85	18.11	297.73	0.3393	-762.0	-599.9
72	0.00	2.58	0.00	1.34	12.48	84.20	17.47	288.35	0.3102	-900.0	-788.9
73	0.00	1.51	0.00	0.79	12.31	83.87	17.13	288.09	0.3042	-1062.0	-842.1
74	0.00	2.31	0.00	1.20	14.83	82.20	15.47	297.93	0.2932	-857.0	-712.1
75	0.00	1.25	0.00	0.64	14.59	81.99	15.26	297.48	0.2884	-863.0	-714.1

	Proj. U	- Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	- Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	- Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	- Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	- Heliographic latitude B; positive: North, negative: South
	L	- Heliographic longitude L
	LCM	- Longitudinal distance from the Sun's central meridian
	Pos. angle	- Position angle
	r	- Distance from the centre of Sun's disc in terms of Sun's radius
	MU	- Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	- Mean magnetic field within the penumbra contour averaged the pixel values with sign.
