SDO HMI 2014-09-12 16:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.31 | 166.18 | 16.86 | 89.55 | -15.87 | 66.03 | -0.70 | 178.34 | 0.3952 | 621.6 | 434.7 | |
|
previous
or next observation for the same group /

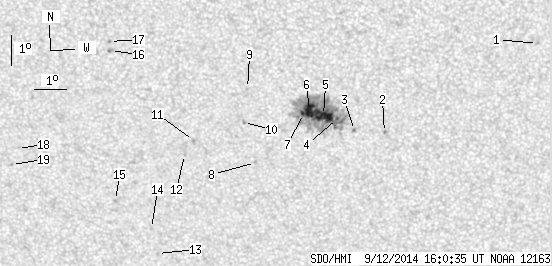

back to the solar disc SDO HMI 2014-09-12 16:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.33 | 0.00 | 0.71 | -13.57 | 73.23 | 6.49 | 197.24 | 0.3725 | 798.0 | 596.3 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -16.42 | 68.48 | 1.75 | 184.19 | 0.4038 | -832.0 | -760.5 | |
| 0.00 | 1.33 | 0.00 | 0.72 | -16.35 | 67.54 | 0.81 | 181.94 | 0.4018 | 773.0 | 686.1 | |
| 0.80 | 147.58 | 0.43 | 79.44 | -15.95 | 67.01 | 0.27 | 180.67 | 0.3953 | 1086.6 | 515.4 | |
| 17.35 | -4.00 | 9.34 | -4.00 | -15.85 | 66.57 | -0.16 | 179.60 | 0.3937 | 1235.5 | 999999 | |
| 10.94 | -4.00 | 5.89 | -4.00 | -15.69 | 66.13 | -0.60 | 178.51 | 0.3911 | 1249.0 | 999999 | |
| 2.22 | -4.00 | 1.20 | -4.00 | -15.79 | 65.94 | -0.79 | 178.05 | 0.3928 | 933.1 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.73 | -17.41 | 64.41 | -2.32 | 174.71 | 0.4202 | 815.0 | 577.1 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -14.97 | 64.20 | -2.54 | 173.54 | 0.3818 | 706.0 | 503.7 | |
| 0.00 | 1.60 | 0.00 | 0.86 | -16.09 | 64.05 | -2.68 | 173.53 | 0.3999 | 782.0 | 731.6 | |
| 0.00 | 1.60 | 0.00 | 0.87 | -16.69 | 62.47 | -4.26 | 170.03 | 0.4130 | -805.0 | -564.0 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -17.16 | 62.17 | -4.56 | 169.57 | 0.4211 | -860.0 | -749.0 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -20.49 | 61.20 | -5.53 | 169.01 | 0.4752 | 779.0 | 671.7 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -19.65 | 61.04 | -5.69 | 168.31 | 0.4629 | 649.0 | 538.6 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -18.72 | 59.92 | -6.81 | 165.57 | 0.4527 | -806.0 | -686.5 | |
| 0.00 | 2.40 | 0.00 | 1.28 | -13.78 | 59.94 | -6.79 | 162.20 | 0.3772 | -1017.0 | -833.1 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -13.49 | 59.92 | -6.81 | 161.90 | 0.3729 | -860.0 | -699.5 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -17.04 | 56.86 | -9.87 | 158.18 | 0.4426 | -453.0 | -451.8 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -17.58 | 56.64 | -10.09 | 158.20 | 0.4517 | -812.0 | -702.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
