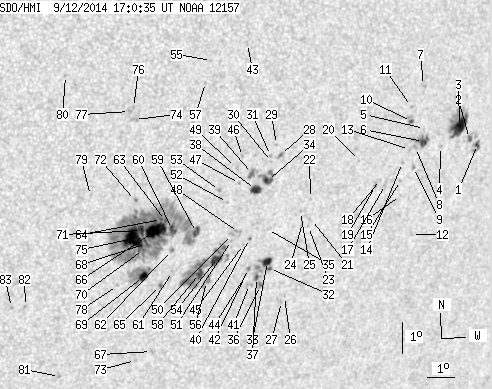

SDO HMI 2014-09-12 17:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 133.76 | 605.26 | 83.71 | 375.02 | -14.30 | 96.20 | 30.02 | 233.86 | 0.6014 | -82.6 | -78.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-12 17:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.13 | 6.23 | 1.47 | 4.29 | -12.49 | 105.73 | 39.55 | 243.55 | 0.6967 | 671.2 | 497.3 | |
| 1.60 | 5.69 | 1.10 | 3.90 | -12.27 | 105.37 | 39.19 | 243.63 | 0.6915 | 840.8 | 523.7 | |
| 19.21 | 38.52 | 13.01 | 26.03 | -11.85 | 104.90 | 38.72 | 243.91 | 0.6840 | 883.0 | 594.7 | |
| 0.00 | 0.89 | 0.00 | 0.60 | -12.43 | 104.25 | 38.07 | 242.73 | 0.6798 | 605.0 | 557.6 | |
| 0.00 | 0.80 | 0.00 | 0.53 | -11.80 | 103.52 | 37.34 | 243.13 | 0.6679 | 537.0 | 384.6 | |
| 5.96 | 11.30 | 3.97 | 7.52 | -12.22 | 103.55 | 37.37 | 242.58 | 0.6706 | 856.4 | 689.4 | |
| 0.00 | 2.13 | 0.00 | 1.40 | -10.42 | 103.28 | 37.10 | 244.88 | 0.6575 | 614.0 | 470.9 | |
| 0.00 | 1.78 | 0.00 | 1.18 | -12.39 | 103.27 | 37.09 | 242.18 | 0.6683 | 770.0 | 711.5 | |
| 0.00 | 1.96 | 0.00 | 1.31 | -13.03 | 103.30 | 37.12 | 241.34 | 0.6723 | 636.0 | 538.7 | |
| 0.98 | 4.18 | 0.64 | 2.75 | -11.54 | 102.98 | 36.80 | 243.15 | 0.6601 | 849.5 | 758.1 | |
| 0.00 | 0.89 | 0.00 | 0.58 | -11.06 | 102.90 | 36.72 | 243.76 | 0.6566 | 694.0 | 604.9 | |
| 0.00 | 1.33 | 0.00 | 0.91 | -15.21 | 103.64 | 37.46 | 238.71 | 0.6891 | 539.0 | 432.2 | |
| 0.00 | 0.98 | 0.00 | 0.65 | -12.43 | 103.04 | 36.86 | 241.97 | 0.6660 | 519.0 | 391.5 | |
| 0.00 | 1.07 | 0.00 | 0.71 | -12.83 | 102.84 | 36.66 | 241.30 | 0.6660 | 616.0 | 529.4 | |
| 0.00 | 1.07 | 0.00 | 0.71 | -13.41 | 102.86 | 36.68 | 240.54 | 0.6696 | 552.0 | 427.9 | |
| 0.00 | 0.62 | 0.00 | 0.42 | -13.90 | 102.95 | 36.77 | 239.95 | 0.6736 | 540.0 | 472.4 | |
| 0.00 | 2.85 | 0.00 | 1.88 | -13.49 | 102.29 | 36.11 | 240.04 | 0.6638 | 655.0 | 470.1 | |
| 0.00 | 0.98 | 0.00 | 0.64 | -13.32 | 102.07 | 35.89 | 240.13 | 0.6602 | 625.0 | 519.3 | |
| 0.00 | 1.69 | 0.00 | 1.11 | -13.49 | 101.91 | 35.73 | 239.78 | 0.6595 | 737.0 | 619.5 | |
| 0.00 | 0.62 | 0.00 | 0.40 | -12.64 | 101.16 | 34.98 | 240.41 | 0.6456 | 696.0 | 555.7 | |
| 0.00 | 0.44 | 0.00 | 0.29 | -14.42 | 99.65 | 33.47 | 236.86 | 0.6401 | 512.0 | 475.8 | |
| 0.00 | 0.89 | 0.00 | 0.57 | -13.73 | 99.49 | 33.32 | 237.68 | 0.6337 | 625.0 | 606.6 | |
| 0.00 | 0.80 | 0.00 | 0.52 | -14.64 | 99.57 | 33.39 | 236.51 | 0.6408 | 532.0 | 429.3 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -14.49 | 99.32 | 33.14 | 236.51 | 0.6370 | 775.0 | 675.3 | |
| 0.00 | 0.98 | 0.00 | 0.62 | -14.13 | 99.19 | 33.01 | 236.90 | 0.6329 | 522.0 | 501.6 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -16.88 | 99.08 | 32.91 | 233.18 | 0.6517 | 573.0 | 517.3 | |
| 0.00 | 1.16 | 0.00 | 0.75 | -17.04 | 99.00 | 32.82 | 232.91 | 0.6520 | 620.0 | 522.4 | |
| 0.53 | 1.87 | 0.33 | 1.16 | -12.23 | 98.17 | 31.99 | 238.73 | 0.6079 | -529.5 | -435.2 | |
| 0.00 | 0.98 | 0.00 | 0.61 | -11.89 | 97.98 | 31.80 | 239.06 | 0.6034 | -533.0 | -418.8 | |
| 0.00 | 0.80 | 0.00 | 0.50 | -12.43 | 97.87 | 31.69 | 238.20 | 0.6058 | -579.0 | -514.0 | |
| 0.00 | 1.51 | 0.00 | 0.94 | -12.23 | 97.80 | 31.63 | 238.43 | 0.6037 | -604.0 | -522.2 | |
| 0.89 | 12.10 | 0.57 | 7.73 | -15.91 | 98.34 | 32.16 | 233.82 | 0.6365 | 521.4 | 536.6 | |
| 5.60 | -32.00 | 3.58 | -32.00 | -15.68 | 98.23 | 32.05 | 234.03 | 0.6335 | 867.3 | 999999 | |
| 4.80 | 13.88 | 2.99 | 8.64 | -13.03 | 97.81 | 31.63 | 237.29 | 0.6094 | -786.8 | -629.7 | |
| 0.00 | 0.80 | 0.00 | 0.51 | -14.63 | 98.05 | 31.87 | 235.29 | 0.6237 | 463.0 | 446.4 | |
| 0.00 | 3.65 | 0.00 | 2.34 | -16.45 | 98.11 | 31.93 | 232.91 | 0.6381 | 594.0 | 450.3 | |
| 1.16 | 8.45 | 0.74 | 5.39 | -16.18 | 97.91 | 31.73 | 233.10 | 0.6338 | 785.3 | 683.5 | |
| 5.87 | 8.45 | 3.65 | 5.26 | -13.29 | 97.41 | 31.23 | 236.59 | 0.6066 | -778.9 | -476.8 | |
| 0.00 | 6.14 | 0.00 | 3.80 | -12.77 | 97.22 | 31.04 | 237.18 | 0.6007 | -917.0 | -758.9 | |
| 0.36 | 1.25 | 0.22 | 0.78 | -14.87 | 97.43 | 31.25 | 234.43 | 0.6187 | 671.0 | 595.1 | |
| 0.00 | 2.22 | 0.00 | 1.42 | -16.39 | 97.69 | 31.51 | 232.63 | 0.6331 | 652.0 | 507.8 | |
| 0.00 | 1.33 | 0.00 | 0.85 | -15.86 | 97.56 | 31.38 | 233.22 | 0.6276 | 888.0 | 792.6 | |
| 0.00 | 1.96 | 0.00 | 1.17 | -8.61 | 96.58 | 30.40 | 242.92 | 0.5641 | -484.0 | -389.0 | |
| 0.00 | 0.80 | 0.00 | 0.51 | -16.08 | 97.48 | 31.30 | 232.86 | 0.6285 | 566.0 | 420.7 | |
| 0.00 | 1.16 | 0.00 | 0.73 | -15.05 | 97.24 | 31.06 | 234.02 | 0.6179 | 713.0 | 562.8 | |
| 0.00 | 1.07 | 0.00 | 0.65 | -12.19 | 96.79 | 30.61 | 237.64 | 0.5914 | -655.0 | -580.9 | |
| 0.00 | 0.98 | 0.00 | 0.60 | -13.06 | 96.79 | 30.62 | 236.40 | 0.5978 | -671.0 | -545.3 | |
| 0.00 | 3.56 | 0.00 | 2.22 | -14.65 | 96.99 | 30.81 | 234.35 | 0.6121 | 891.0 | 746.6 | |
| 0.00 | 0.71 | 0.00 | 0.44 | -12.53 | 96.58 | 30.40 | 236.97 | 0.5914 | -397.0 | -579.9 | |
| 0.00 | 1.78 | 0.00 | 1.11 | -14.70 | 96.74 | 30.56 | 234.07 | 0.6097 | 787.0 | 754.7 | |
| 0.00 | 0.98 | 0.00 | 0.61 | -14.89 | 96.77 | 30.60 | 233.83 | 0.6116 | 722.0 | 636.0 | |
| 0.00 | 0.80 | 0.00 | 0.49 | -13.64 | 96.44 | 30.26 | 235.26 | 0.5982 | -579.0 | -492.7 | |
| 0.00 | 1.33 | 0.00 | 0.82 | -13.23 | 96.10 | 29.92 | 235.54 | 0.5911 | -894.0 | -765.4 | |
| 7.12 | 68.76 | 4.44 | 42.82 | -15.48 | 96.32 | 30.14 | 232.63 | 0.6112 | 862.2 | 406.6 | |
| 0.00 | 0.53 | 0.00 | 0.32 | -9.06 | 95.35 | 29.17 | 241.19 | 0.5515 | -734.0 | -634.8 | |
| 0.00 | 7.20 | 0.00 | 4.51 | -16.18 | 96.08 | 29.90 | 231.47 | 0.6142 | 548.0 | 488.8 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -9.75 | 95.20 | 29.03 | 239.98 | 0.5544 | -576.0 | -505.7 | |
| 4.54 | -54.00 | 2.83 | -54.00 | -15.90 | 95.78 | 29.60 | 231.56 | 0.6087 | 875.6 | 999999 | |
| 3.91 | 308.03 | 2.40 | 186.13 | -14.55 | 95.46 | 29.28 | 233.11 | 0.5942 | 696.7 | -397.4 | |
| 4.80 | -59.00 | 2.92 | -59.00 | -14.39 | 94.58 | 28.40 | 232.48 | 0.5831 | -761.4 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.71 | -15.77 | 94.78 | 28.61 | 230.79 | 0.5969 | -760.0 | -605.8 | |
| 0.00 | 2.22 | 0.00 | 1.36 | -15.08 | 94.65 | 28.47 | 231.60 | 0.5895 | -876.0 | -594.2 | |
| 2.22 | -59.00 | 1.35 | -59.00 | -14.08 | 94.29 | 28.11 | 232.63 | 0.5773 | -893.7 | 999999 | |
| 0.89 | -59.00 | 0.54 | -59.00 | -14.04 | 94.15 | 27.97 | 232.55 | 0.5753 | -964.4 | 999999 | |
| 0.62 | 2.58 | 0.38 | 1.59 | -16.20 | 94.42 | 28.24 | 229.86 | 0.5967 | -758.9 | -605.5 | |
| 20.37 | -59.00 | 12.33 | -59.00 | -14.39 | 93.98 | 27.80 | 231.90 | 0.5763 | -1090.5 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.89 | -18.39 | 94.46 | 28.29 | 227.09 | 0.6162 | -506.0 | -423.7 | |
| 2.58 | -59.00 | 1.56 | -59.00 | -14.79 | 93.72 | 27.54 | 231.07 | 0.5769 | -602.0 | 999999 | |
| 5.51 | 28.29 | 3.37 | 17.24 | -15.87 | 93.77 | 27.59 | 229.65 | 0.5868 | 835.5 | 204.7 | |
| 0.27 | -59.00 | 0.16 | -59.00 | -14.98 | 93.64 | 27.46 | 230.73 | 0.5776 | -541.3 | 999999 | |
| 4.27 | -59.00 | 2.57 | -59.00 | -14.35 | 93.49 | 27.31 | 231.44 | 0.5705 | -1110.3 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.85 | -13.37 | 93.15 | 26.97 | 232.51 | 0.5583 | -966.0 | -834.3 | |
| 0.00 | 1.25 | 0.00 | 0.78 | -18.65 | 93.93 | 27.76 | 226.22 | 0.6133 | -462.0 | -403.1 | |
| 0.00 | 3.38 | 0.00 | 1.98 | -10.77 | 92.84 | 26.66 | 236.14 | 0.5329 | -718.0 | -603.4 | |
| 27.57 | -59.00 | 16.59 | -59.00 | -14.60 | 93.24 | 27.06 | 230.84 | 0.5699 | -1131.2 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -10.38 | 92.77 | 26.59 | 236.68 | 0.5289 | -655.0 | -556.4 | |
| 0.00 | 1.87 | 0.00 | 1.09 | -10.50 | 92.64 | 26.46 | 236.36 | 0.5283 | -904.0 | -728.5 | |
| 0.00 | 1.07 | 0.00 | 0.65 | -16.11 | 92.88 | 26.71 | 228.41 | 0.5795 | -742.0 | -574.4 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -13.11 | 91.57 | 25.39 | 231.20 | 0.5379 | -546.0 | -397.0 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -9.24 | 90.37 | 24.19 | 236.02 | 0.4896 | -711.0 | -574.8 | |
| 0.00 | 0.89 | 0.00 | 0.55 | -19.03 | 91.29 | 25.11 | 222.94 | 0.5911 | -842.0 | -656.6 | |
| 0.00 | 1.16 | 0.00 | 0.69 | -16.62 | 89.75 | 23.58 | 224.19 | 0.5519 | -748.0 | -622.1 | |
| 0.00 | 1.25 | 0.00 | 0.74 | -16.62 | 89.28 | 23.10 | 223.60 | 0.5472 | -710.0 | -611.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
