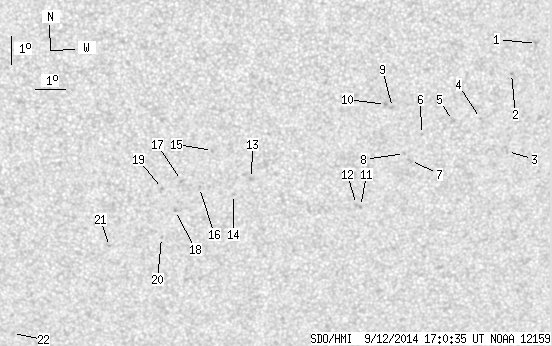

SDO HMI 2014-09-12 17:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 29.88 | 0.00 | 17.43 | -23.39 | 73.85 | 7.67 | 193.82 | 0.5306 | -16.2 | -53.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-12 17:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.49 | 0.00 | 1.43 | -19.56 | 80.37 | 14.19 | 207.32 | 0.5053 | -609.0 | -468.4 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -20.56 | 79.63 | 13.45 | 205.20 | 0.5136 | 798.0 | 681.5 | |
| 0.00 | 1.25 | 0.00 | 0.74 | -23.25 | 79.76 | 13.58 | 203.17 | 0.5504 | 617.0 | 488.4 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -22.07 | 78.74 | 12.56 | 202.49 | 0.5287 | 685.0 | 583.7 | |
| 0.00 | 3.11 | 0.00 | 1.81 | -22.11 | 77.81 | 11.63 | 200.95 | 0.5242 | 37.0 | 82.4 | |
| 0.00 | 0.62 | 0.00 | 0.36 | -22.57 | 76.81 | 10.63 | 198.99 | 0.5256 | 660.0 | 560.6 | |
| 0.00 | 2.13 | 0.00 | 1.25 | -23.47 | 76.52 | 10.34 | 197.93 | 0.5367 | 638.0 | 520.0 | |
| 0.00 | 1.16 | 0.00 | 0.68 | -23.22 | 76.30 | 10.12 | 197.73 | 0.5323 | 771.0 | 623.5 | |
| 0.00 | 1.96 | 0.00 | 1.12 | -21.61 | 75.78 | 9.60 | 197.88 | 0.5072 | 504.0 | 368.4 | |
| 0.00 | 1.33 | 0.00 | 0.76 | -21.50 | 75.55 | 9.37 | 197.54 | 0.5045 | 699.0 | 499.3 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -25.06 | 74.96 | 8.78 | 194.54 | 0.5527 | 715.0 | 620.6 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -24.99 | 74.82 | 8.64 | 194.36 | 0.5511 | 465.0 | 334.9 | |
| 0.00 | 1.69 | 0.00 | 0.98 | -24.00 | 71.26 | 5.08 | 188.87 | 0.5264 | -657.0 | -584.3 | |
| 0.00 | 1.25 | 0.00 | 0.73 | -24.56 | 70.68 | 4.50 | 187.72 | 0.5334 | -415.0 | -313.3 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -23.00 | 69.94 | 3.76 | 186.84 | 0.5089 | -113.0 | -150.3 | |
| 0.00 | 1.60 | 0.00 | 0.93 | -24.30 | 69.54 | 3.36 | 185.84 | 0.5276 | -766.0 | -582.8 | |
| 0.00 | 1.51 | 0.00 | 0.88 | -24.05 | 68.94 | 2.76 | 184.84 | 0.5230 | -795.0 | -762.4 | |
| 0.00 | 1.33 | 0.00 | 0.78 | -25.11 | 68.76 | 2.58 | 184.36 | 0.5385 | -748.0 | -628.4 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -24.33 | 68.32 | 2.14 | 183.71 | 0.5264 | -752.0 | -641.8 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -26.08 | 68.31 | 2.13 | 183.48 | 0.5522 | -610.0 | -541.1 | |
| 0.00 | 0.44 | 0.00 | 0.26 | -26.40 | 66.57 | 0.39 | 180.62 | 0.5560 | -703.0 | -605.4 | |
| 0.00 | 1.42 | 0.00 | 0.88 | -29.63 | 63.20 | -2.97 | 175.70 | 0.6036 | -778.0 | -631.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
