SDO HMI 2014-09-12 17:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.87 | 171.50 | 18.77 | 92.56 | -16.03 | 65.65 | -0.53 | 178.85 | 0.3980 | 488.3 | 350.2 | |
|
previous
or next observation for the same group /

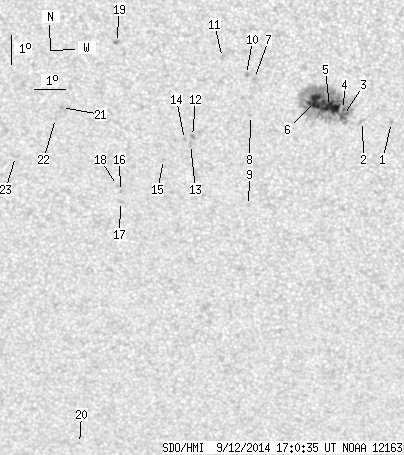

back to the solar disc SDO HMI 2014-09-12 17:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.63 | -16.39 | 68.50 | 2.32 | 185.54 | 0.4041 | -788.0 | -649.4 | |
| 0.00 | 2.76 | 0.00 | 1.49 | -16.35 | 67.59 | 1.41 | 183.38 | 0.4023 | 755.0 | 579.8 | |
| 3.29 | 141.87 | 1.78 | 76.36 | -16.15 | 66.99 | 0.81 | 181.96 | 0.3987 | 824.5 | 509.5 | |
| 0.71 | -3.00 | 0.38 | -3.00 | -15.95 | 66.99 | 0.81 | 181.98 | 0.3955 | 1056.1 | 999999 | |
| 18.06 | -3.00 | 9.72 | -3.00 | -15.85 | 66.55 | 0.37 | 180.91 | 0.3937 | 1230.3 | 999999 | |
| 12.81 | -3.00 | 6.89 | -3.00 | -15.69 | 66.11 | -0.07 | 179.83 | 0.3910 | 1242.8 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -14.94 | 64.21 | -1.97 | 174.96 | 0.3803 | 823.0 | 607.3 | |
| 0.00 | 0.53 | 0.00 | 0.29 | -16.15 | 64.07 | -2.11 | 174.91 | 0.4000 | 824.0 | 662.3 | |
| 0.00 | 1.51 | 0.00 | 0.84 | -19.14 | 63.97 | -2.21 | 175.30 | 0.4474 | 705.0 | 528.8 | |
| 0.00 | 2.13 | 0.00 | 1.14 | -14.81 | 63.96 | -2.22 | 174.30 | 0.3786 | 844.0 | 688.5 | |
| 0.00 | 2.13 | 0.00 | 1.14 | -14.26 | 63.22 | -2.96 | 172.21 | 0.3711 | 592.0 | 368.6 | |
| 0.00 | 1.87 | 0.00 | 1.02 | -16.85 | 62.23 | -3.95 | 170.82 | 0.4147 | -933.0 | -820.3 | |
| 0.00 | 1.96 | 0.00 | 1.07 | -17.12 | 62.16 | -4.02 | 170.77 | 0.4191 | -792.0 | -651.7 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -16.95 | 61.98 | -4.20 | 170.28 | 0.4170 | -975.0 | -734.8 | |
| 0.00 | 0.71 | 0.00 | 0.39 | -17.62 | 61.29 | -4.89 | 169.05 | 0.4294 | -856.0 | -693.0 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -18.71 | 59.88 | -6.30 | 166.62 | 0.4507 | -817.0 | -647.1 | |
| 0.00 | 2.13 | 0.00 | 1.19 | -19.04 | 59.87 | -6.31 | 166.77 | 0.4558 | -677.0 | -544.8 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -18.51 | 59.80 | -6.38 | 166.33 | 0.4480 | -529.0 | -544.4 | |
| 0.00 | 2.49 | 0.00 | 1.33 | -13.80 | 59.92 | -6.26 | 163.54 | 0.3751 | -1128.0 | -881.8 | |
| 0.00 | 0.89 | 0.00 | 0.54 | -27.57 | 58.03 | -8.15 | 167.56 | 0.5854 | 549.0 | 386.0 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -15.95 | 58.12 | -8.06 | 161.03 | 0.4166 | -838.0 | -694.5 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -16.31 | 57.91 | -8.27 | 160.88 | 0.4232 | -640.0 | -464.6 | |
| 0.00 | 2.67 | 0.00 | 1.48 | -17.60 | 56.57 | -9.61 | 159.17 | 0.4493 | -635.0 | -598.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
