SDO HMI 2014-09-12 18:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.82 | 22.41 | 5.98 | 48.65 | 13.76 | 347.54 | -78.09 | 77.50 | 0.9728 | -35.2 | 166.0 | |
|
previous
or next observation for the same group /

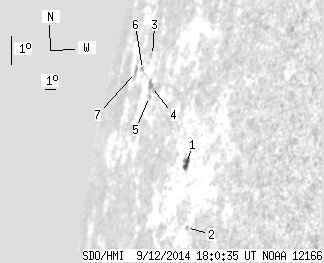

back to the solar disc SDO HMI 2014-09-12 18:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.82 | 6.40 | 5.98 | 10.02 | 12.51 | 353.03 | -72.59 | 79.17 | 0.9498 | -245.8 | -125.7 | |
| 0.00 | 1.25 | 0.00 | 1.84 | 10.68 | 354.20 | -71.43 | 81.19 | 0.9441 | -316.0 | -253.0 | |
| 0.00 | 0.71 | 0.00 | 1.72 | 15.03 | 346.03 | -79.59 | 76.09 | 0.9795 | 32.0 | 12.0 | |
| 0.00 | 6.31 | 0.00 | 14.21 | 14.18 | 347.03 | -78.60 | 77.03 | 0.9763 | 424.0 | 322.5 | |
| 0.00 | 1.69 | 0.00 | 3.77 | 13.88 | 347.09 | -78.54 | 77.34 | 0.9761 | 507.0 | 409.2 | |
| 0.00 | 1.96 | 0.00 | 5.18 | 14.47 | 345.03 | -80.60 | 76.58 | 0.9829 | 300.0 | 277.3 | |
| 0.00 | 4.09 | 0.00 | 11.91 | 14.24 | 343.95 | -81.67 | 76.72 | 0.9862 | 102.0 | 40.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
