SDO HMI 2014-09-12 19:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 125.13 | 611.84 | 79.27 | 382.76 | -14.37 | 95.94 | 30.87 | 234.54 | 0.6114 | -85.4 | -114.1 | |
|
previous
or next observation for the same group /

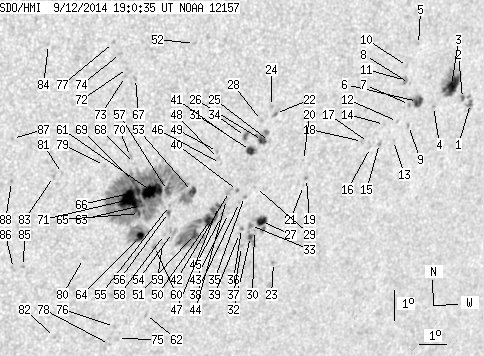

back to the solar disc SDO HMI 2014-09-12 19:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.60 | 6.85 | 1.12 | 4.79 | -12.49 | 105.76 | 40.69 | 244.20 | 0.7093 | 654.7 | 485.1 | |
| 0.98 | 2.22 | 0.68 | 1.55 | -12.30 | 105.40 | 40.33 | 244.24 | 0.7044 | 820.9 | 702.1 | |
| 18.23 | 39.13 | 12.55 | 26.89 | -11.84 | 104.88 | 39.80 | 244.54 | 0.6962 | 876.9 | 535.4 | |
| 0.00 | 1.25 | 0.00 | 0.85 | -12.46 | 104.26 | 39.19 | 243.38 | 0.6925 | 656.0 | 519.9 | |
| 0.00 | 1.33 | 0.00 | 0.89 | -10.42 | 103.34 | 38.26 | 245.58 | 0.6712 | 753.0 | 573.1 | |
| 5.87 | 10.85 | 3.97 | 7.34 | -12.24 | 103.59 | 38.51 | 243.26 | 0.6837 | 841.1 | 698.2 | |
| 0.00 | 1.25 | 0.00 | 0.84 | -12.31 | 103.28 | 38.21 | 242.98 | 0.6807 | 867.0 | 732.1 | |
| 0.00 | 0.89 | 0.00 | 0.60 | -11.64 | 103.17 | 38.10 | 243.82 | 0.6757 | 520.0 | 541.7 | |
| 0.00 | 1.42 | 0.00 | 0.96 | -12.99 | 103.36 | 38.29 | 242.13 | 0.6853 | 655.0 | 512.2 | |
| 0.00 | 0.89 | 0.00 | 0.59 | -11.08 | 103.01 | 37.93 | 244.47 | 0.6709 | 722.0 | 642.1 | |
| 0.00 | 3.82 | 0.00 | 2.55 | -11.53 | 103.00 | 37.92 | 243.86 | 0.6731 | 903.0 | 781.0 | |
| 0.00 | 0.98 | 0.00 | 0.66 | -12.82 | 102.90 | 37.83 | 242.06 | 0.6792 | 582.0 | 492.7 | |
| 0.00 | 1.16 | 0.00 | 0.78 | -13.43 | 102.85 | 37.78 | 241.23 | 0.6821 | 501.0 | 401.3 | |
| 0.00 | 1.25 | 0.00 | 0.83 | -12.88 | 102.40 | 37.33 | 241.67 | 0.6739 | 478.0 | 347.2 | |
| 0.00 | 1.87 | 0.00 | 1.25 | -13.48 | 102.31 | 37.24 | 240.81 | 0.6764 | 644.0 | 569.6 | |
| 0.00 | 0.62 | 0.00 | 0.42 | -13.58 | 101.98 | 36.91 | 240.46 | 0.6733 | 532.0 | 480.1 | |
| 0.00 | 0.89 | 0.00 | 0.59 | -13.41 | 101.87 | 36.80 | 240.61 | 0.6710 | 496.0 | 461.7 | |
| 0.00 | 1.42 | 0.00 | 0.94 | -13.36 | 101.63 | 36.56 | 240.52 | 0.6680 | 649.0 | 478.9 | |
| 0.00 | 1.51 | 0.00 | 0.99 | -14.40 | 99.67 | 34.60 | 237.74 | 0.6526 | 600.0 | 538.8 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -13.80 | 99.45 | 34.38 | 238.38 | 0.6462 | 669.0 | 570.0 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -14.62 | 99.60 | 34.52 | 237.40 | 0.6532 | 487.0 | 455.7 | |
| 0.00 | 3.02 | 0.00 | 1.91 | -12.20 | 98.16 | 33.09 | 239.62 | 0.6208 | -438.0 | -405.1 | |
| 0.00 | 1.33 | 0.00 | 0.88 | -17.08 | 98.93 | 33.86 | 233.69 | 0.6631 | 633.0 | 538.5 | |
| 0.00 | 1.33 | 0.00 | 0.84 | -11.97 | 97.98 | 32.91 | 239.82 | 0.6171 | -539.0 | -419.9 | |
| 0.00 | 1.60 | 0.00 | 1.01 | -13.09 | 98.07 | 33.00 | 238.31 | 0.6257 | -365.0 | -308.7 | |
| 4.00 | 12.54 | 2.53 | 7.91 | -13.04 | 97.80 | 32.73 | 238.17 | 0.6222 | -832.2 | -653.3 | |
| 6.31 | 12.18 | 4.08 | 7.89 | -15.68 | 98.20 | 33.13 | 234.91 | 0.6454 | 823.9 | 498.6 | |
| 0.00 | 1.78 | 0.00 | 1.12 | -12.39 | 97.67 | 32.60 | 238.98 | 0.6163 | -618.0 | -547.5 | |
| 0.00 | 0.80 | 0.00 | 0.51 | -14.55 | 97.78 | 32.71 | 236.08 | 0.6326 | 628.0 | 526.1 | |
| 0.00 | 0.80 | 0.00 | 0.52 | -15.96 | 97.99 | 32.92 | 234.38 | 0.6451 | 607.0 | 525.3 | |
| 4.54 | 6.94 | 2.86 | 4.37 | -13.33 | 97.41 | 32.33 | 237.44 | 0.6197 | -789.1 | -464.9 | |
| 1.69 | 6.85 | 1.09 | 4.44 | -16.15 | 97.88 | 32.80 | 234.04 | 0.6452 | 732.3 | 547.3 | |
| 0.00 | 2.76 | 0.00 | 1.78 | -15.78 | 97.81 | 32.74 | 234.46 | 0.6418 | 871.0 | 727.2 | |
| 1.51 | 4.00 | 0.95 | 2.51 | -12.86 | 97.15 | 32.08 | 237.89 | 0.6135 | -851.5 | -729.4 | |
| 0.00 | 1.25 | 0.00 | 0.79 | -14.81 | 97.42 | 32.35 | 235.43 | 0.6304 | 654.0 | 633.3 | |
| 0.36 | 1.33 | 0.23 | 0.86 | -15.86 | 97.49 | 32.42 | 234.09 | 0.6389 | 844.2 | 774.8 | |
| 0.00 | 1.16 | 0.00 | 0.75 | -16.46 | 97.60 | 32.53 | 233.41 | 0.6445 | 668.0 | 525.4 | |
| 0.00 | 0.98 | 0.00 | 0.62 | -15.00 | 97.27 | 32.19 | 235.05 | 0.6301 | 695.0 | 568.9 | |
| 0.00 | 0.89 | 0.00 | 0.57 | -16.02 | 97.44 | 32.37 | 233.85 | 0.6396 | 600.0 | 443.9 | |
| 0.00 | 1.51 | 0.00 | 0.96 | -14.60 | 97.13 | 32.05 | 235.47 | 0.6256 | 824.0 | 702.7 | |
| 0.00 | 1.42 | 0.00 | 0.89 | -12.96 | 96.77 | 31.69 | 237.44 | 0.6097 | -547.0 | -535.0 | |
| 0.00 | 3.91 | 0.00 | 2.47 | -14.61 | 96.83 | 31.76 | 235.21 | 0.6224 | 755.0 | 751.0 | |
| 0.00 | 0.62 | 0.00 | 0.40 | -15.33 | 96.92 | 31.84 | 234.31 | 0.6287 | 461.0 | 400.0 | |
| 0.00 | 1.07 | 0.00 | 0.67 | -14.86 | 96.76 | 31.69 | 234.81 | 0.6235 | 646.0 | 584.9 | |
| 0.00 | 2.22 | 0.00 | 1.41 | -15.41 | 96.67 | 31.60 | 234.00 | 0.6266 | 447.0 | 496.6 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -13.67 | 96.36 | 31.29 | 236.10 | 0.6102 | -323.0 | -399.7 | |
| 1.42 | 68.93 | 0.90 | 43.44 | -15.07 | 96.50 | 31.43 | 234.31 | 0.6222 | 1023.6 | 399.3 | |
| 0.00 | 2.05 | 0.00 | 1.27 | -13.51 | 96.26 | 31.19 | 236.25 | 0.6078 | -676.0 | -431.6 | |
| 0.00 | 1.16 | 0.00 | 0.72 | -13.28 | 96.19 | 31.12 | 236.52 | 0.6053 | -835.0 | -724.4 | |
| 8.63 | -47.00 | 5.45 | -47.00 | -15.48 | 96.28 | 31.20 | 233.57 | 0.6229 | 819.4 | 999999 | |
| 4.27 | -47.00 | 2.69 | -47.00 | -15.93 | 95.77 | 30.70 | 232.51 | 0.6208 | 836.0 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.75 | -9.76 | 94.95 | 29.87 | 240.67 | 0.5652 | -734.0 | -502.4 | |
| 4.09 | 340.10 | 2.54 | 207.91 | -14.52 | 95.47 | 30.40 | 234.16 | 0.6064 | 668.2 | -345.6 | |
| 0.00 | 6.40 | 0.00 | 4.00 | -15.81 | 94.95 | 29.87 | 231.93 | 0.6110 | -82.0 | -248.9 | |
| 0.00 | 1.16 | 0.00 | 0.72 | -14.92 | 94.70 | 29.63 | 232.91 | 0.6011 | -482.0 | -346.8 | |
| 0.71 | 2.93 | 0.44 | 1.82 | -15.14 | 94.70 | 29.62 | 232.60 | 0.6029 | -714.1 | -446.3 | |
| 3.20 | -53.00 | 1.97 | -53.00 | -14.42 | 94.55 | 29.48 | 233.46 | 0.5955 | -767.7 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.61 | -15.86 | 94.67 | 29.59 | 231.61 | 0.6083 | -652.0 | -616.2 | |
| 0.00 | 1.07 | 0.00 | 0.67 | -16.15 | 94.64 | 29.57 | 231.20 | 0.6105 | -664.0 | -483.2 | |
| 0.00 | 2.76 | 0.00 | 1.72 | -16.23 | 94.37 | 29.29 | 230.83 | 0.6082 | -823.0 | -565.3 | |
| 21.43 | -53.00 | 13.11 | -53.00 | -14.42 | 93.98 | 28.91 | 232.93 | 0.5890 | -1081.3 | 999999 | |
| 0.00 | 1.96 | 0.00 | 1.24 | -18.48 | 94.43 | 29.36 | 228.01 | 0.6279 | -301.0 | -362.1 | |
| 0.27 | -53.00 | 0.16 | -53.00 | -14.85 | 93.69 | 28.61 | 232.04 | 0.5893 | -589.0 | 999999 | |
| 5.78 | -53.00 | 3.57 | -53.00 | -15.87 | 93.81 | 28.73 | 230.78 | 0.5991 | 810.9 | 999999 | |
| 0.27 | -53.00 | 0.16 | -53.00 | -15.11 | 93.65 | 28.58 | 231.66 | 0.5911 | -537.0 | 999999 | |
| 3.11 | -53.00 | 1.89 | -53.00 | -14.38 | 93.48 | 28.41 | 232.49 | 0.5831 | -1141.4 | 999999 | |
| 0.00 | 1.87 | 0.00 | 1.10 | -10.74 | 92.98 | 27.90 | 237.39 | 0.5480 | -735.0 | -531.9 | |
| 0.00 | 1.16 | 0.00 | 0.70 | -13.47 | 93.25 | 28.18 | 233.57 | 0.5730 | -674.0 | -454.4 | |
| 1.69 | -53.00 | 1.02 | -53.00 | -14.05 | 93.29 | 28.22 | 232.78 | 0.5782 | -952.6 | 999999 | |
| 0.00 | 2.58 | 0.00 | 1.55 | -13.23 | 93.08 | 28.01 | 233.74 | 0.5691 | -765.0 | -671.3 | |
| 25.17 | -53.00 | 15.31 | -53.00 | -14.63 | 93.23 | 28.16 | 231.91 | 0.5824 | -1133.4 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.68 | -10.40 | 92.67 | 27.59 | 237.62 | 0.5416 | -751.0 | -677.4 | |
| 0.00 | 1.33 | 0.00 | 0.79 | -10.65 | 92.62 | 27.55 | 237.18 | 0.5429 | -762.0 | -631.8 | |
| 0.00 | 1.69 | 0.00 | 0.99 | -9.91 | 92.38 | 27.30 | 238.12 | 0.5342 | -235.0 | -277.3 | |
| 0.00 | 2.13 | 0.00 | 1.35 | -19.23 | 93.55 | 28.48 | 226.24 | 0.6257 | -458.0 | -428.6 | |
| 0.00 | 1.33 | 0.00 | 0.84 | -18.81 | 93.37 | 28.29 | 226.56 | 0.6202 | -730.0 | -528.9 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -9.55 | 92.11 | 27.03 | 238.45 | 0.5280 | -743.0 | -573.5 | |
| 0.00 | 1.07 | 0.00 | 0.68 | -19.41 | 93.30 | 28.22 | 225.76 | 0.6248 | -513.0 | -422.9 | |
| 0.00 | 1.25 | 0.00 | 0.74 | -13.46 | 92.20 | 27.13 | 232.52 | 0.5609 | -307.0 | -404.4 | |
| 0.00 | 1.16 | 0.00 | 0.70 | -16.47 | 91.87 | 26.80 | 228.02 | 0.5837 | -664.0 | -506.3 | |
| 0.00 | 1.16 | 0.00 | 0.68 | -13.64 | 90.76 | 25.69 | 230.75 | 0.5461 | -635.0 | -460.2 | |
| 0.00 | 0.80 | 0.00 | 0.50 | -19.05 | 91.25 | 26.18 | 224.08 | 0.6017 | -798.0 | -644.2 | |
| 0.00 | 2.31 | 0.00 | 1.36 | -13.72 | 90.46 | 25.39 | 230.31 | 0.5434 | -705.0 | -556.0 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -9.48 | 89.89 | 24.81 | 236.29 | 0.4996 | -702.0 | -504.7 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -16.61 | 89.79 | 24.72 | 225.55 | 0.5635 | -720.0 | -616.2 | |
| 0.00 | 2.13 | 0.00 | 1.27 | -16.65 | 89.45 | 24.38 | 225.09 | 0.5605 | -820.0 | -648.1 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -12.41 | 88.93 | 23.85 | 230.49 | 0.5139 | -696.0 | -538.4 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -13.80 | 89.03 | 23.96 | 228.55 | 0.5283 | -766.0 | -644.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
