SDO HMI 2014-09-12 20:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 120.71 | 608.30 | 77.08 | 383.63 | -14.34 | 96.16 | 31.64 | 235.22 | 0.6197 | -28.6 | -84.8 | |
|
previous
or next observation for the same group /

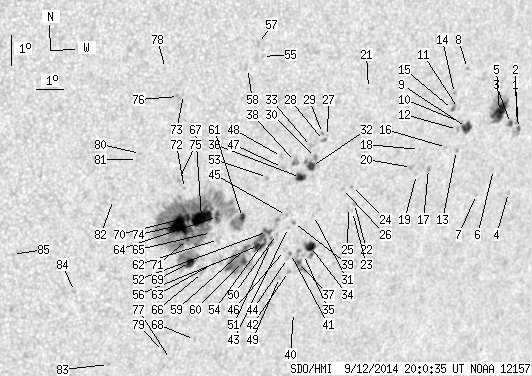

back to the solar disc SDO HMI 2014-09-12 20:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.16 | 7.65 | 0.82 | 5.40 | -12.47 | 105.78 | 41.26 | 244.53 | 0.7155 | 567.8 | 464.1 | |
| 0.00 | 2.31 | 0.00 | 1.63 | -12.24 | 105.65 | 41.13 | 244.76 | 0.7130 | 574.0 | 494.2 | |
| 1.51 | 2.94 | 1.06 | 2.06 | -12.28 | 105.41 | 40.89 | 244.58 | 0.7105 | 778.0 | 647.6 | |
| 0.00 | 1.60 | 0.00 | 1.15 | -14.52 | 105.80 | 41.27 | 241.94 | 0.7260 | 590.0 | 414.7 | |
| 16.99 | 37.80 | 11.79 | 26.19 | -11.85 | 104.89 | 40.36 | 244.84 | 0.7026 | 870.2 | 577.6 | |
| 0.00 | 0.62 | 0.00 | 0.44 | -13.72 | 105.00 | 40.48 | 242.50 | 0.7133 | 374.0 | 317.4 | |
| 0.00 | 0.89 | 0.00 | 0.63 | -14.47 | 104.47 | 39.95 | 241.22 | 0.7116 | 539.0 | 468.1 | |
| 0.00 | 0.98 | 0.00 | 0.66 | -10.37 | 103.36 | 38.84 | 245.97 | 0.6778 | 680.0 | 611.8 | |
| 6.67 | 8.72 | 4.56 | 5.95 | -12.26 | 103.63 | 39.11 | 243.59 | 0.6905 | 823.2 | 605.2 | |
| 0.00 | 0.98 | 0.00 | 0.67 | -12.08 | 103.40 | 38.88 | 243.69 | 0.6870 | 860.0 | 766.8 | |
| 0.00 | 1.07 | 0.00 | 0.72 | -11.62 | 103.20 | 38.68 | 244.19 | 0.6823 | 480.0 | 566.2 | |
| 0.00 | 1.51 | 0.00 | 1.03 | -12.29 | 103.28 | 38.76 | 243.34 | 0.6868 | 826.0 | 713.6 | |
| 0.00 | 1.51 | 0.00 | 1.03 | -12.97 | 103.36 | 38.84 | 242.49 | 0.6913 | 651.0 | 482.2 | |
| 0.00 | 1.25 | 0.00 | 0.84 | -11.12 | 102.96 | 38.44 | 244.72 | 0.6770 | 870.0 | 727.4 | |
| 0.53 | 4.54 | 0.36 | 3.05 | -11.63 | 102.97 | 38.45 | 244.03 | 0.6797 | 868.5 | 707.7 | |
| 0.00 | 0.62 | 0.00 | 0.42 | -12.84 | 102.94 | 38.42 | 242.41 | 0.6859 | 611.0 | 481.6 | |
| 0.00 | 1.96 | 0.00 | 1.32 | -13.46 | 102.34 | 37.82 | 241.21 | 0.6827 | 727.0 | 592.9 | |
| 0.00 | 0.62 | 0.00 | 0.42 | -12.81 | 101.87 | 37.35 | 241.77 | 0.6738 | 592.0 | 571.1 | |
| 0.00 | 1.16 | 0.00 | 0.78 | -13.62 | 101.90 | 37.38 | 240.72 | 0.6787 | 448.0 | 365.1 | |
| 0.00 | 2.05 | 0.00 | 1.37 | -13.37 | 101.66 | 37.14 | 240.88 | 0.6746 | 680.0 | 525.3 | |
| 0.00 | 0.89 | 0.00 | 0.57 | -10.70 | 99.60 | 35.08 | 243.18 | 0.6350 | 745.0 | 603.6 | |
| 0.00 | 1.42 | 0.00 | 0.93 | -14.37 | 99.64 | 35.12 | 238.16 | 0.6583 | 584.0 | 440.6 | |
| 0.00 | 0.80 | 0.00 | 0.53 | -14.63 | 99.61 | 35.09 | 237.80 | 0.6596 | 512.0 | 387.8 | |
| 0.00 | 1.07 | 0.00 | 0.70 | -13.81 | 99.43 | 34.91 | 238.76 | 0.6522 | 525.0 | 526.4 | |
| 0.00 | 0.71 | 0.00 | 0.47 | -14.48 | 99.43 | 34.91 | 237.86 | 0.6567 | 756.0 | 682.8 | |
| 0.00 | 0.71 | 0.00 | 0.46 | -13.85 | 99.09 | 34.57 | 238.46 | 0.6487 | 585.0 | 458.2 | |
| 0.00 | 1.07 | 0.00 | 0.68 | -12.12 | 98.26 | 33.74 | 240.22 | 0.6279 | -363.0 | -307.5 | |
| 0.00 | 2.13 | 0.00 | 1.35 | -12.24 | 98.13 | 33.61 | 239.96 | 0.6271 | -586.0 | -451.5 | |
| 0.00 | 1.25 | 0.00 | 0.79 | -12.01 | 98.06 | 33.54 | 240.23 | 0.6248 | -617.0 | -489.3 | |
| 0.00 | 1.96 | 0.00 | 1.24 | -12.76 | 97.91 | 33.39 | 239.06 | 0.6280 | -637.0 | -558.3 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -14.64 | 98.14 | 33.62 | 236.67 | 0.6434 | 627.0 | 558.0 | |
| 4.36 | 8.81 | 2.77 | 5.59 | -13.04 | 97.80 | 33.28 | 238.59 | 0.6287 | -829.7 | -637.3 | |
| 0.00 | 3.47 | 0.00 | 2.19 | -12.40 | 97.71 | 33.19 | 239.42 | 0.6232 | -714.0 | -516.7 | |
| 6.94 | 14.14 | 4.52 | 9.21 | -15.66 | 98.21 | 33.69 | 235.38 | 0.6512 | 801.9 | 449.2 | |
| 0.00 | 1.60 | 0.00 | 1.04 | -15.90 | 97.99 | 33.47 | 234.89 | 0.6506 | 497.0 | 474.4 | |
| 5.34 | 7.56 | 3.38 | 4.80 | -13.37 | 97.44 | 32.92 | 237.86 | 0.6268 | -752.8 | -455.0 | |
| 1.78 | 12.01 | 1.16 | 7.82 | -16.15 | 97.85 | 33.33 | 234.45 | 0.6509 | 712.2 | 590.1 | |
| 0.00 | 4.89 | 0.00 | 3.08 | -12.84 | 97.18 | 32.66 | 238.39 | 0.6201 | -902.0 | -738.1 | |
| 0.36 | 1.25 | 0.23 | 0.80 | -14.82 | 97.42 | 32.90 | 235.87 | 0.6366 | 717.2 | 589.0 | |
| 0.00 | 0.89 | 0.00 | 0.59 | -17.81 | 97.99 | 33.47 | 232.47 | 0.6645 | 494.0 | 349.0 | |
| 0.00 | 1.33 | 0.00 | 0.86 | -15.83 | 97.49 | 32.97 | 234.58 | 0.6447 | 908.0 | 763.7 | |
| 0.00 | 1.42 | 0.00 | 0.93 | -16.42 | 97.52 | 33.00 | 233.84 | 0.6494 | 507.0 | 484.9 | |
| 0.00 | 1.07 | 0.00 | 0.68 | -14.97 | 97.26 | 32.74 | 235.53 | 0.6359 | 371.0 | 423.6 | |
| 0.00 | 0.89 | 0.00 | 0.58 | -15.99 | 97.40 | 32.88 | 234.31 | 0.6449 | 569.0 | 470.7 | |
| 0.00 | 1.07 | 0.00 | 0.68 | -14.57 | 97.12 | 32.60 | 235.96 | 0.6315 | 881.0 | 729.8 | |
| 0.00 | 0.89 | 0.00 | 0.57 | -15.72 | 97.24 | 32.72 | 234.53 | 0.6412 | 474.0 | 419.7 | |
| 0.00 | 2.05 | 0.00 | 1.28 | -13.00 | 96.73 | 32.20 | 237.80 | 0.6159 | -627.0 | -562.1 | |
| 0.00 | 2.31 | 0.00 | 1.45 | -12.64 | 96.64 | 32.12 | 238.24 | 0.6124 | -867.0 | -587.0 | |
| 0.00 | 1.96 | 0.00 | 1.27 | -16.60 | 97.22 | 32.70 | 233.37 | 0.6474 | 670.0 | 525.3 | |
| 0.00 | 1.33 | 0.00 | 0.85 | -15.17 | 96.85 | 32.33 | 234.93 | 0.6328 | 661.0 | 575.4 | |
| 0.00 | 2.40 | 0.00 | 1.53 | -15.45 | 96.67 | 32.15 | 234.42 | 0.6330 | 572.0 | 409.8 | |
| 2.13 | 72.75 | 1.36 | 46.14 | -15.04 | 96.49 | 31.97 | 234.80 | 0.6280 | 988.9 | 470.3 | |
| 0.00 | 1.33 | 0.00 | 0.83 | -13.28 | 96.22 | 31.70 | 236.99 | 0.6121 | -854.0 | -730.7 | |
| 0.27 | -52.00 | 0.17 | -52.00 | -15.30 | 96.46 | 31.94 | 234.43 | 0.6296 | 897.0 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.86 | -9.40 | 95.56 | 31.04 | 242.18 | 0.5774 | -226.0 | -256.0 | |
| 6.05 | -52.00 | 3.84 | -52.00 | -15.48 | 96.24 | 31.71 | 234.00 | 0.6285 | 788.5 | 999999 | |
| 0.00 | 2.22 | 0.00 | 1.34 | -8.98 | 95.38 | 30.86 | 242.69 | 0.5724 | -738.0 | -597.1 | |
| 0.00 | 0.80 | 0.00 | 0.48 | -9.74 | 95.06 | 30.54 | 241.25 | 0.5734 | -585.0 | -609.3 | |
| 1.16 | -52.00 | 0.73 | -52.00 | -15.54 | 95.77 | 31.25 | 233.51 | 0.6238 | 687.8 | 999999 | |
| 2.58 | -52.00 | 1.64 | -52.00 | -15.97 | 95.77 | 31.25 | 232.95 | 0.6271 | 830.2 | 999999 | |
| 3.29 | 334.59 | 2.06 | 205.65 | -14.52 | 95.49 | 30.97 | 234.66 | 0.6130 | 657.6 | -348.9 | |
| 0.00 | 3.65 | 0.00 | 2.27 | -15.18 | 94.72 | 30.20 | 233.08 | 0.6096 | -711.0 | -519.8 | |
| 0.00 | 6.23 | 0.00 | 3.91 | -15.87 | 94.84 | 30.32 | 232.25 | 0.6163 | -415.0 | -349.0 | |
| 3.20 | -61.00 | 1.98 | -61.00 | -14.42 | 94.57 | 30.05 | 233.97 | 0.6019 | -760.4 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.66 | -14.93 | 94.43 | 29.91 | 233.15 | 0.6044 | 25.0 | -61.2 | |
| 0.00 | 2.58 | 0.00 | 1.61 | -16.23 | 94.31 | 29.79 | 231.30 | 0.6135 | -795.0 | -581.7 | |
| 23.12 | -61.00 | 14.23 | -61.00 | -14.42 | 94.00 | 29.48 | 233.45 | 0.5954 | -1054.1 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.74 | -18.45 | 94.42 | 29.90 | 228.56 | 0.6331 | -438.0 | -384.0 | |
| 6.05 | -61.00 | 3.76 | -61.00 | -15.87 | 93.79 | 29.26 | 231.28 | 0.6049 | 808.0 | 999999 | |
| 3.74 | -61.00 | 2.29 | -61.00 | -14.38 | 93.49 | 28.97 | 233.03 | 0.5895 | -1124.0 | 999999 | |
| 1.60 | -61.00 | 0.99 | -61.00 | -15.10 | 93.60 | 29.08 | 232.13 | 0.5965 | -574.7 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.59 | -13.43 | 93.26 | 28.73 | 234.15 | 0.5791 | -734.0 | -595.2 | |
| 0.00 | 0.98 | 0.00 | 0.58 | -10.42 | 92.88 | 28.35 | 238.31 | 0.5511 | -696.0 | -550.3 | |
| 21.88 | -61.00 | 13.38 | -61.00 | -14.63 | 93.21 | 28.68 | 232.42 | 0.5882 | -1146.5 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.81 | -13.16 | 93.01 | 28.49 | 234.30 | 0.5741 | -815.0 | -693.8 | |
| 0.00 | 2.40 | 0.00 | 1.42 | -10.47 | 92.71 | 28.18 | 238.07 | 0.5494 | -788.0 | -664.1 | |
| 0.00 | 0.89 | 0.00 | 0.57 | -19.07 | 93.66 | 29.14 | 227.07 | 0.6308 | -538.0 | -413.6 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -9.55 | 92.17 | 27.65 | 239.03 | 0.5358 | -676.0 | -538.3 | |
| 0.00 | 1.60 | 0.00 | 1.01 | -18.78 | 93.35 | 28.83 | 227.13 | 0.6252 | -531.0 | -452.3 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -12.21 | 91.57 | 27.05 | 234.29 | 0.5494 | -790.0 | -652.3 | |
| 0.00 | 1.25 | 0.00 | 0.74 | -12.39 | 91.48 | 26.96 | 233.93 | 0.5500 | -470.0 | -428.1 | |
| 0.00 | 0.98 | 0.00 | 0.58 | -13.64 | 90.79 | 26.27 | 231.38 | 0.5527 | -683.0 | -474.5 | |
| 0.00 | 0.89 | 0.00 | 0.55 | -19.09 | 91.42 | 26.90 | 224.79 | 0.6090 | -688.0 | -584.5 | |
| 0.00 | 1.42 | 0.00 | 0.86 | -16.57 | 89.82 | 25.30 | 226.25 | 0.5692 | -691.0 | -494.2 | |
| 0.00 | 1.60 | 0.00 | 0.94 | -15.23 | 87.52 | 22.99 | 225.34 | 0.5320 | -48.0 | -104.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
