SDO HMI 2014-09-12 20:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 26.96 | 0.00 | 15.91 | -23.90 | 73.02 | 8.50 | 195.03 | 0.5439 | 124.1 | 54.0 | |
|
previous
or next observation for the same group /

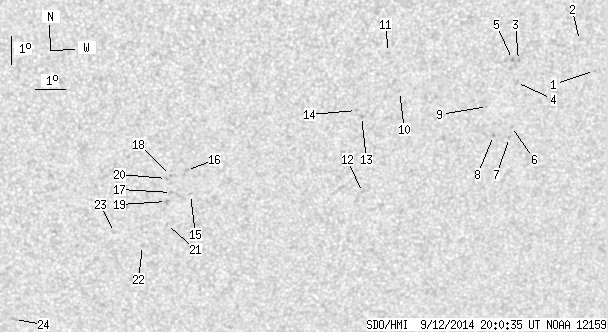

back to the solar disc SDO HMI 2014-09-12 20:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.63 | -21.08 | 82.32 | 17.80 | 211.32 | 0.5508 | 525.0 | 511.8 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -20.04 | 81.69 | 17.17 | 211.48 | 0.5332 | 602.0 | 439.0 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -20.64 | 79.71 | 15.19 | 207.88 | 0.5264 | 807.0 | 671.7 | |
| 0.00 | 1.60 | 0.00 | 0.94 | -21.39 | 79.72 | 15.20 | 207.20 | 0.5362 | 707.0 | 595.4 | |
| 0.00 | 1.25 | 0.00 | 0.72 | -20.60 | 79.50 | 14.98 | 207.60 | 0.5244 | 858.0 | 759.2 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -22.91 | 79.72 | 15.20 | 205.86 | 0.5558 | 594.0 | 567.8 | |
| 0.00 | 1.33 | 0.00 | 0.80 | -23.30 | 79.70 | 15.17 | 205.50 | 0.5606 | 600.0 | 423.1 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -23.21 | 79.14 | 14.62 | 204.76 | 0.5560 | 810.0 | 700.5 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -22.19 | 78.83 | 14.31 | 205.14 | 0.5408 | 564.0 | 547.6 | |
| 0.00 | 0.44 | 0.00 | 0.26 | -21.58 | 75.84 | 11.32 | 200.83 | 0.5152 | 714.0 | 632.8 | |
| 0.00 | 1.25 | 0.00 | 0.71 | -20.23 | 75.38 | 10.86 | 201.05 | 0.4939 | 679.0 | 637.2 | |
| 0.00 | 0.62 | 0.00 | 0.37 | -25.09 | 74.89 | 10.37 | 197.01 | 0.5594 | 630.0 | 537.1 | |
| 0.00 | 1.51 | 0.00 | 0.88 | -22.41 | 74.64 | 10.12 | 198.25 | 0.5210 | 757.0 | 617.1 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -22.20 | 74.46 | 9.94 | 198.08 | 0.5171 | 884.0 | 601.9 | |
| 0.00 | 0.62 | 0.00 | 0.37 | -25.05 | 69.10 | 4.58 | 187.72 | 0.5408 | -706.0 | -502.3 | |
| 0.00 | 1.60 | 0.00 | 0.93 | -24.19 | 68.94 | 4.42 | 187.68 | 0.5279 | -746.0 | -629.6 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -24.97 | 68.47 | 3.95 | 186.68 | 0.5385 | -812.0 | -636.5 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -24.37 | 68.42 | 3.90 | 186.74 | 0.5295 | -806.0 | -697.1 | |
| 0.00 | 2.31 | 0.00 | 1.36 | -25.29 | 68.31 | 3.79 | 186.34 | 0.5429 | -693.0 | -590.3 | |
| 0.00 | 1.25 | 0.00 | 0.73 | -24.47 | 68.29 | 3.77 | 186.49 | 0.5308 | -734.0 | -623.1 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -26.12 | 68.34 | 3.82 | 186.20 | 0.5550 | -576.0 | -435.5 | |
| 0.00 | 1.25 | 0.00 | 0.75 | -26.88 | 67.55 | 3.03 | 184.80 | 0.5648 | -394.0 | -295.4 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -26.40 | 66.59 | 2.07 | 183.34 | 0.5569 | -633.0 | -575.0 | |
| 0.00 | 2.40 | 0.00 | 1.49 | -29.61 | 63.18 | -1.34 | 178.06 | 0.6022 | -653.0 | -482.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
