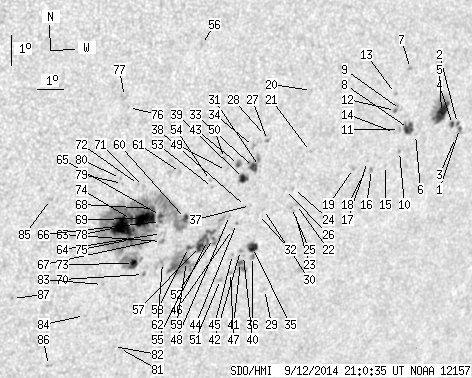

SDO HMI 2014-09-12 21:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 116.42 | 597.77 | 74.77 | 378.88 | -14.35 | 96.04 | 32.08 | 235.60 | 0.6247 | -57.0 | -69.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-12 21:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.07 | 8.45 | 0.76 | 6.01 | -12.45 | 105.76 | 41.79 | 244.84 | 0.7213 | 564.4 | 468.3 | |
| 0.71 | -1.00 | 0.51 | -1.00 | -12.28 | 105.64 | 41.68 | 245.00 | 0.7192 | 534.5 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.57 | -12.73 | 105.65 | 41.68 | 244.43 | 0.7214 | 482.0 | 416.0 | |
| 1.60 | -1.00 | 1.13 | -1.00 | -12.30 | 105.44 | 41.47 | 244.87 | 0.7170 | 692.2 | 999999 | |
| 15.74 | 35.84 | 11.02 | 25.06 | -11.87 | 104.91 | 40.94 | 245.13 | 0.7091 | 842.7 | 615.5 | |
| 0.00 | 0.71 | 0.00 | 0.49 | -12.49 | 103.96 | 39.99 | 243.80 | 0.7017 | 345.0 | 316.8 | |
| 0.00 | 1.60 | 0.00 | 1.08 | -10.35 | 103.40 | 39.43 | 246.33 | 0.6846 | 705.0 | 575.1 | |
| 6.76 | 11.21 | 4.66 | 7.72 | -12.27 | 103.64 | 39.67 | 243.90 | 0.6969 | 825.6 | 604.1 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -11.63 | 103.21 | 39.24 | 244.50 | 0.6888 | 577.0 | 621.7 | |
| 0.00 | 0.98 | 0.00 | 0.67 | -12.98 | 103.41 | 39.44 | 242.83 | 0.6981 | 540.0 | 448.9 | |
| 0.00 | 1.96 | 0.00 | 1.34 | -12.27 | 103.28 | 39.31 | 243.69 | 0.6929 | 688.0 | 628.0 | |
| 0.53 | 3.02 | 0.36 | 2.05 | -11.64 | 103.01 | 39.04 | 244.36 | 0.6866 | 857.5 | 718.9 | |
| 0.00 | 1.16 | 0.00 | 0.78 | -11.10 | 102.92 | 38.95 | 245.04 | 0.6828 | 811.0 | 701.5 | |
| 0.00 | 0.89 | 0.00 | 0.61 | -12.35 | 103.09 | 39.12 | 243.48 | 0.6912 | 754.0 | 648.0 | |
| 0.00 | 0.80 | 0.00 | 0.55 | -13.39 | 102.93 | 38.96 | 242.01 | 0.6950 | 444.0 | 370.9 | |
| 0.00 | 2.05 | 0.00 | 1.39 | -13.47 | 102.38 | 38.42 | 241.57 | 0.6895 | 690.0 | 564.5 | |
| 0.00 | 0.71 | 0.00 | 0.48 | -13.20 | 102.17 | 38.21 | 241.80 | 0.6856 | 697.0 | 598.0 | |
| 0.00 | 0.71 | 0.00 | 0.48 | -13.49 | 102.15 | 38.18 | 241.41 | 0.6869 | 618.0 | 568.5 | |
| 0.00 | 1.78 | 0.00 | 1.20 | -13.38 | 101.66 | 37.69 | 241.23 | 0.6808 | 648.0 | 488.6 | |
| 0.00 | 0.71 | 0.00 | 0.46 | -10.74 | 99.62 | 35.65 | 243.50 | 0.6421 | 762.0 | 666.5 | |
| 0.00 | 0.98 | 0.00 | 0.64 | -12.69 | 99.87 | 35.90 | 240.96 | 0.6566 | 700.0 | 563.4 | |
| 0.00 | 1.16 | 0.00 | 0.76 | -14.38 | 99.62 | 35.66 | 238.54 | 0.6643 | 621.0 | 524.3 | |
| 0.00 | 0.36 | 0.00 | 0.24 | -14.60 | 99.59 | 35.62 | 238.22 | 0.6653 | 534.0 | 465.0 | |
| 0.00 | 1.16 | 0.00 | 0.76 | -13.84 | 99.41 | 35.45 | 239.10 | 0.6586 | 680.0 | 469.5 | |
| 0.00 | 0.89 | 0.00 | 0.59 | -14.46 | 99.45 | 35.48 | 238.30 | 0.6629 | 712.0 | 643.2 | |
| 0.00 | 1.87 | 0.00 | 1.22 | -13.85 | 99.11 | 35.14 | 238.87 | 0.6552 | 612.0 | 424.8 | |
| 0.00 | 2.13 | 0.00 | 1.36 | -12.21 | 98.17 | 34.20 | 240.43 | 0.6339 | -561.0 | -416.8 | |
| 0.00 | 1.07 | 0.00 | 0.68 | -12.05 | 98.07 | 34.10 | 240.59 | 0.6317 | -549.0 | -445.2 | |
| 0.00 | 1.69 | 0.00 | 1.13 | -17.09 | 98.93 | 34.97 | 234.53 | 0.6749 | 568.0 | 441.5 | |
| 0.00 | 0.80 | 0.00 | 0.52 | -14.44 | 98.38 | 34.41 | 237.54 | 0.6509 | 608.0 | 459.7 | |
| 0.00 | 1.16 | 0.00 | 0.74 | -13.03 | 97.99 | 34.02 | 239.17 | 0.6372 | -267.0 | -271.4 | |
| 0.00 | 0.36 | 0.00 | 0.23 | -14.59 | 98.22 | 34.25 | 237.22 | 0.6501 | 617.0 | 494.2 | |
| 4.36 | 12.90 | 2.79 | 8.24 | -13.05 | 97.77 | 33.80 | 238.98 | 0.6347 | -817.1 | -634.5 | |
| 0.00 | 2.67 | 0.00 | 1.70 | -12.37 | 97.67 | 33.70 | 239.85 | 0.6291 | -786.0 | -580.4 | |
| 6.58 | 8.81 | 4.31 | 5.77 | -15.66 | 98.18 | 34.22 | 235.79 | 0.6570 | 805.5 | 612.3 | |
| 0.00 | 2.40 | 0.00 | 1.58 | -15.96 | 98.24 | 34.27 | 235.45 | 0.6597 | 526.0 | 336.4 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -14.27 | 97.86 | 33.89 | 237.37 | 0.6439 | 563.0 | 589.7 | |
| 0.00 | 1.07 | 0.00 | 0.69 | -14.29 | 97.67 | 33.71 | 237.21 | 0.6420 | 708.0 | 612.0 | |
| 4.98 | 6.94 | 3.18 | 4.43 | -13.37 | 97.45 | 33.48 | 238.28 | 0.6332 | -745.0 | -494.4 | |
| 0.00 | 0.80 | 0.00 | 0.52 | -15.90 | 97.89 | 33.92 | 235.25 | 0.6555 | 603.0 | 546.3 | |
| 1.42 | 8.09 | 0.93 | 5.31 | -16.12 | 97.82 | 33.85 | 234.91 | 0.6563 | 734.4 | 528.5 | |
| 0.00 | 1.78 | 0.00 | 1.16 | -15.72 | 97.74 | 33.77 | 235.36 | 0.6527 | 822.0 | 753.3 | |
| 1.60 | 4.18 | 1.02 | 2.65 | -12.91 | 97.19 | 33.22 | 238.73 | 0.6271 | -856.7 | -727.1 | |
| 0.00 | 1.25 | 0.00 | 0.80 | -14.82 | 97.43 | 33.46 | 236.30 | 0.6429 | 633.0 | 536.8 | |
| 0.00 | 0.80 | 0.00 | 0.52 | -15.83 | 97.46 | 33.49 | 235.00 | 0.6504 | 837.0 | 763.6 | |
| 0.00 | 0.89 | 0.00 | 0.57 | -15.01 | 97.31 | 33.34 | 235.96 | 0.6429 | 580.0 | 466.2 | |
| 0.00 | 1.16 | 0.00 | 0.76 | -16.42 | 97.50 | 33.53 | 234.26 | 0.6550 | 610.0 | 486.9 | |
| 0.00 | 1.07 | 0.00 | 0.68 | -14.54 | 97.12 | 33.15 | 236.44 | 0.6375 | 800.0 | 720.3 | |
| 0.00 | 1.33 | 0.00 | 0.84 | -13.07 | 96.77 | 32.80 | 238.18 | 0.6233 | -628.0 | -498.9 | |
| 0.00 | 1.51 | 0.00 | 0.95 | -12.68 | 96.64 | 32.67 | 238.63 | 0.6191 | -828.0 | -622.1 | |
| 0.00 | 1.78 | 0.00 | 1.16 | -16.63 | 97.16 | 33.19 | 233.73 | 0.6529 | 558.0 | 469.1 | |
| 0.53 | 82.27 | 0.34 | 52.52 | -15.25 | 96.64 | 32.68 | 235.10 | 0.6373 | 727.0 | 468.1 | |
| 0.00 | 0.98 | 0.00 | 0.62 | -13.58 | 96.33 | 32.37 | 237.12 | 0.6219 | -691.0 | -570.5 | |
| 0.00 | 1.07 | 0.00 | 0.67 | -13.35 | 96.23 | 32.26 | 237.35 | 0.6190 | -834.0 | -683.6 | |
| 0.27 | -52.00 | 0.17 | -52.00 | -15.30 | 96.43 | 32.46 | 234.86 | 0.6353 | 975.3 | 999999 | |
| 0.00 | 2.49 | 0.00 | 1.51 | -8.98 | 95.36 | 31.40 | 243.10 | 0.5792 | -641.0 | -530.8 | |
| 4.54 | -52.00 | 2.90 | -52.00 | -15.48 | 96.16 | 32.20 | 234.41 | 0.6337 | 785.5 | 999999 | |
| 0.89 | -52.00 | 0.57 | -52.00 | -15.48 | 95.76 | 31.79 | 234.06 | 0.6293 | 828.8 | 999999 | |
| 2.13 | -52.00 | 1.36 | -52.00 | -15.94 | 95.76 | 31.79 | 233.46 | 0.6328 | 829.6 | 999999 | |
| 3.11 | 329.45 | 1.96 | 203.72 | -14.52 | 95.49 | 31.52 | 235.12 | 0.6191 | 604.4 | -322.0 | |
| 0.00 | 0.98 | 0.00 | 0.61 | -13.01 | 95.08 | 31.11 | 236.88 | 0.6034 | -521.0 | -462.8 | |
| 0.00 | 9.34 | 0.00 | 5.90 | -15.91 | 94.87 | 30.91 | 232.73 | 0.6230 | -164.0 | -315.7 | |
| 0.00 | 2.76 | 0.00 | 1.73 | -15.21 | 94.72 | 30.75 | 233.52 | 0.6159 | -737.0 | -578.1 | |
| 0.00 | 1.16 | 0.00 | 0.72 | -14.95 | 94.68 | 30.71 | 233.84 | 0.6134 | -467.0 | -340.5 | |
| 1.87 | -60.00 | 1.16 | -60.00 | -14.36 | 94.55 | 30.58 | 234.54 | 0.6074 | -763.6 | 999999 | |
| 0.71 | -60.00 | 0.44 | -60.00 | -14.56 | 94.58 | 30.61 | 234.29 | 0.6093 | -692.6 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.50 | -15.17 | 94.50 | 30.53 | 233.39 | 0.6130 | -549.0 | -397.6 | |
| 1.25 | -60.00 | 0.77 | -60.00 | -14.11 | 94.23 | 30.26 | 234.59 | 0.6018 | -835.0 | 999999 | |
| 24.37 | -60.00 | 15.08 | -60.00 | -14.42 | 93.98 | 30.02 | 233.95 | 0.6015 | -1044.3 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.90 | -16.26 | 94.24 | 30.27 | 231.70 | 0.6189 | -646.0 | -594.1 | |
| 0.00 | 1.96 | 0.00 | 1.20 | -13.37 | 93.80 | 29.83 | 235.24 | 0.5913 | -585.0 | -531.3 | |
| 0.00 | 0.62 | 0.00 | 0.38 | -13.30 | 93.61 | 29.64 | 235.18 | 0.5885 | -747.0 | -596.3 | |
| 4.18 | -60.00 | 2.61 | -60.00 | -15.87 | 93.81 | 29.84 | 231.82 | 0.6112 | 834.5 | 999999 | |
| 1.96 | -60.00 | 1.20 | -60.00 | -14.42 | 93.52 | 29.55 | 233.52 | 0.5962 | -1141.5 | 999999 | |
| 1.69 | -60.00 | 1.05 | -60.00 | -15.07 | 93.58 | 29.61 | 232.68 | 0.6022 | -617.7 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.58 | -10.80 | 92.96 | 28.99 | 238.29 | 0.5618 | -641.0 | -597.5 | |
| 0.00 | 4.27 | 0.00 | 2.54 | -10.44 | 92.78 | 28.81 | 238.68 | 0.5569 | -569.0 | -607.8 | |
| 23.57 | -60.00 | 14.49 | -60.00 | -14.63 | 93.22 | 29.26 | 232.96 | 0.5946 | -1150.8 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.43 | -13.23 | 93.03 | 29.06 | 234.75 | 0.5813 | -556.0 | -452.8 | |
| 0.00 | 0.71 | 0.00 | 0.43 | -13.06 | 92.94 | 28.97 | 234.90 | 0.5789 | -593.0 | -560.8 | |
| 0.00 | 0.71 | 0.00 | 0.45 | -18.67 | 93.80 | 29.83 | 228.21 | 0.6343 | -639.0 | -510.8 | |
| 0.00 | 1.25 | 0.00 | 0.79 | -18.59 | 93.57 | 29.60 | 228.09 | 0.6313 | -210.0 | -320.6 | |
| 0.00 | 0.98 | 0.00 | 0.61 | -16.49 | 92.79 | 28.83 | 230.04 | 0.6054 | -463.0 | -471.9 | |
| 0.00 | 0.71 | 0.00 | 0.44 | -17.48 | 92.31 | 28.34 | 228.28 | 0.6089 | -452.0 | -407.8 | |
| 0.00 | 2.05 | 0.00 | 1.22 | -13.59 | 90.55 | 26.58 | 231.77 | 0.5558 | -774.0 | -625.0 | |
| 0.00 | 1.96 | 0.00 | 1.22 | -19.08 | 91.29 | 27.33 | 225.25 | 0.6131 | -717.0 | -617.6 | |
| 0.00 | 1.16 | 0.00 | 0.70 | -16.75 | 89.64 | 25.67 | 226.43 | 0.5748 | -665.0 | -583.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
