SDO HMI 2014-09-12 21:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.13 | 17.34 | 10.86 | 34.02 | 13.77 | 347.39 | -76.58 | 77.59 | 0.9665 | -3.0 | 193.3 | |
|
previous
or next observation for the same group /

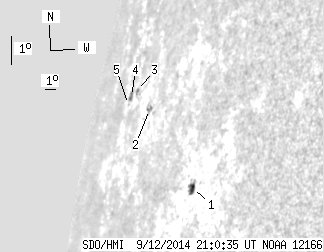

back to the solar disc SDO HMI 2014-09-12 21:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.18 | 6.49 | 5.99 | 9.32 | 12.48 | 353.19 | -70.78 | 79.32 | 0.9397 | -240.1 | -97.1 | |
| 0.00 | 4.71 | 0.00 | 9.54 | 14.18 | 346.88 | -77.09 | 77.14 | 0.9704 | 590.0 | 415.8 | |
| 0.44 | 2.13 | 1.05 | 5.05 | 14.50 | 344.61 | -79.36 | 76.65 | 0.9789 | 308.4 | 204.9 | |
| 1.51 | 3.74 | 3.82 | 9.43 | 14.23 | 343.93 | -80.04 | 76.87 | 0.9812 | 102.8 | -13.2 | |
| 0.00 | 0.27 | 0.00 | 0.68 | 13.96 | 343.77 | -80.20 | 77.13 | 0.9818 | 93.0 | 129.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
