SDO HMI 2014-09-12 22:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.07 | 21.09 | 0.89 | 16.27 | -20.26 | 105.93 | 42.52 | 235.73 | 0.7685 | 195.6 | 236.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-12 22:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

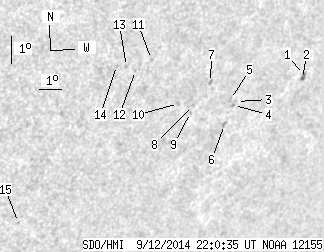

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.27 | 3.38 | 0.22 | 2.82 | -19.89 | 110.24 | 46.83 | 238.60 | 0.8057 | 582.7 | 414.5 | |
| 0.80 | -1.00 | 0.67 | -1.00 | -20.03 | 110.25 | 46.83 | 238.45 | 0.8063 | 450.2 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.56 | -20.53 | 107.40 | 43.98 | 236.36 | 0.7834 | 319.0 | 296.9 | |
| 0.00 | 1.42 | 0.00 | 1.13 | -20.65 | 107.31 | 43.89 | 236.16 | 0.7833 | 518.0 | 482.7 | |
| 0.00 | 1.87 | 0.00 | 1.47 | -20.43 | 107.09 | 43.68 | 236.29 | 0.7802 | 626.0 | 504.2 | |
| 0.00 | 2.22 | 0.00 | 1.77 | -21.28 | 107.14 | 43.72 | 235.36 | 0.7850 | 586.0 | 414.3 | |
| 0.00 | 1.87 | 0.00 | 1.43 | -19.76 | 105.98 | 42.56 | 236.41 | 0.7664 | 712.0 | 594.6 | |
| 0.00 | 1.51 | 0.00 | 1.16 | -20.49 | 105.48 | 42.06 | 235.28 | 0.7658 | 680.0 | 495.8 | |
| 0.00 | 0.89 | 0.00 | 0.68 | -20.72 | 105.43 | 42.01 | 234.99 | 0.7666 | 527.0 | 456.7 | |
| 0.00 | 1.87 | 0.00 | 1.41 | -20.36 | 104.79 | 41.37 | 235.01 | 0.7587 | 663.0 | 546.6 | |
| 0.00 | 0.98 | 0.00 | 0.71 | -18.74 | 103.15 | 39.74 | 235.86 | 0.7338 | -384.0 | -313.4 | |
| 0.00 | 0.89 | 0.00 | 0.64 | -19.06 | 102.58 | 39.17 | 235.11 | 0.7301 | -544.0 | -445.8 | |
| 0.00 | 1.25 | 0.00 | 0.89 | -18.89 | 102.16 | 38.75 | 235.03 | 0.7250 | -641.0 | -544.4 | |
| 0.00 | 1.25 | 0.00 | 0.89 | -18.82 | 101.74 | 38.32 | 234.83 | 0.7203 | -565.0 | -570.4 | |
| 0.00 | 0.98 | 0.00 | 0.71 | -23.97 | 99.27 | 35.85 | 227.16 | 0.7322 | -597.0 | -497.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
