group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
12158	150.67	794.87	82.77	435.74	15.78	87.77	24.35	291.79	0.4301	428.5	304.3

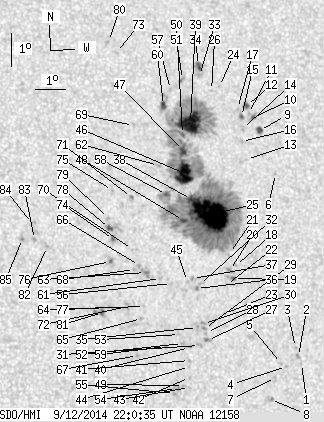

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2014-09-12 22:00:35 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0.00	0.98	0.00	0.55	10.38	90.79	27.37	278.63	0.4593	-667.0	-567.0
2	0.00	2.58	0.00	1.44	10.60	90.70	27.29	279.12	0.4583	-818.0	-687.3
3	0.00	1.25	0.00	0.69	10.87	90.63	27.21	279.74	0.4575	-846.0	-628.1
4	0.00	1.07	0.00	0.59	10.32	90.26	26.85	278.58	0.4512	-756.0	-562.7
5	0.00	0.98	0.00	0.54	10.42	90.10	26.68	278.83	0.4488	-754.0	-615.5
6	0.00	1.25	0.00	0.70	16.18	90.59	27.18	291.03	0.4719	697.0	520.1
7	0.00	1.16	0.00	0.64	10.01	89.86	26.44	277.96	0.4446	-730.0	-563.2
8	0.00	2.49	0.00	1.37	9.36	89.63	26.21	276.51	0.4405	-881.0	-708.9
9	2.49	4.09	1.40	2.30	17.52	90.24	26.82	293.97	0.4728	797.3	587.9
10	0.80	3.91	0.45	2.20	17.93	90.09	26.67	294.89	0.4728	702.0	578.0
11	0.00	0.98	0.00	0.55	18.06	89.93	26.52	295.26	0.4713	606.0	567.7
12	1.60	4.09	0.90	2.30	18.31	89.90	26.49	295.78	0.4722	767.5	595.2
13	0.00	0.62	0.00	0.35	16.66	89.64	26.23	292.58	0.4604	651.0	553.3
14	0.00	2.94	0.00	1.64	17.61	89.65	26.23	294.54	0.4651	737.0	613.7
15	0.80	2.22	0.45	1.24	17.98	89.67	26.26	295.28	0.4673	955.8	822.1
16	0.00	2.05	0.00	1.14	17.22	89.55	26.14	293.80	0.4618	457.0	528.5
17	0.00	1.25	0.00	0.70	18.23	89.57	26.16	295.86	0.4672	583.0	522.6
18	0.00	0.89	0.00	0.49	13.46	88.84	25.42	286.07	0.4363	-393.0	-337.1
19	0.62	3.47	0.34	1.90	13.07	88.73	25.31	285.24	0.4334	-663.1	-567.3
20	0.00	2.31	0.00	1.27	13.32	88.62	25.20	285.85	0.4325	-788.0	-559.7
21	0.00	1.51	0.00	0.83	13.84	88.68	25.26	286.99	0.4351	-69.0	4.7
22	0.00	1.33	0.00	0.73	12.91	88.47	25.05	284.96	0.4290	-653.0	-472.3
23	0.00	0.98	0.00	0.53	12.03	88.31	24.89	282.99	0.4243	-635.0	-523.3
24	0.00	0.89	0.00	0.50	18.94	89.05	25.64	297.66	0.4639	625.0	442.3
25	66.98	639.01	36.77	350.82	15.05	88.21	24.79	289.97	0.4326	1457.0	472.8
26	0.00	1.07	0.00	0.59	18.83	88.75	25.33	297.68	0.4592	582.0	423.0
27	0.00	3.11	0.00	1.69	11.25	87.66	24.24	281.35	0.4125	-849.0	-709.7
28	0.00	0.62	0.00	0.34	11.49	87.65	24.23	281.94	0.4128	-650.0	-578.1
29	0.00	1.51	0.00	0.82	11.62	87.59	24.17	282.25	0.4122	-909.0	-819.6
30	0.00	2.05	0.00	1.11	11.77	87.57	24.15	282.63	0.4123	-794.0	-651.7
31	0.00	2.67	0.00	1.45	11.11	87.38	23.96	281.10	0.4078	-754.0	-630.3
32	0.00	1.16	0.00	0.63	12.95	87.55	24.14	285.47	0.4152	-500.0	-329.0
33	0.00	2.31	0.00	1.29	19.32	88.41	24.99	298.93	0.4574	-338.0	-361.4
34	2.31	5.78	1.29	3.22	19.62	88.42	25.01	299.53	0.4595	-862.9	-523.2
35	0.00	1.07	0.00	0.58	11.66	87.36	23.94	282.44	0.4087	-891.0	-786.7
36	0.00	1.78	0.00	0.97	12.84	87.44	24.02	285.24	0.4131	-734.0	-638.6
37	0.00	1.42	0.00	0.77	13.15	87.34	23.92	286.03	0.4125	-725.0	-602.2
38	0.27	-25.00	0.15	-25.00	15.54	87.58	24.16	291.46	0.4255	1063.0	999999
39	33.09	-25.00	18.25	-25.00	17.89	87.87	24.45	296.40	0.4416	1068.9	999999
40	0.00	2.22	0.00	1.20	11.07	87.04	23.62	281.10	0.4024	-759.0	-649.1
41	0.00	1.33	0.00	0.72	10.68	87.00	23.59	280.13	0.4011	-716.0	-583.7
42	0.00	0.98	0.00	0.53	10.16	86.96	23.54	278.87	0.3996	-680.0	-615.5
43	0.00	1.07	0.00	0.58	9.86	86.94	23.52	278.12	0.3988	-649.0	-522.4
44	0.00	0.89	0.00	0.48	10.50	86.99	23.57	279.69	0.4006	-641.0	-466.9
45	0.00	1.33	0.00	0.72	13.07	87.16	23.74	285.92	0.4096	-678.0	-527.8
46	24.37	-25.00	13.34	-25.00	16.35	87.44	24.03	293.36	0.4274	1154.9	999999
47	5.69	-25.00	3.12	-25.00	17.05	87.50	24.09	294.87	0.4319	1005.6	999999
48	2.85	-25.00	1.55	-25.00	14.92	87.23	23.81	290.26	0.4176	993.3	999999
49	0.00	1.07	0.00	0.58	9.93	86.74	23.33	278.33	0.3959	-770.0	-625.3
50	0.98	-25.00	0.54	-25.00	17.54	87.54	24.12	295.90	0.4350	1119.0	999999
51	0.00	2.76	0.00	1.53	19.22	87.79	24.38	299.25	0.4485	669.0	501.8
52	0.00	1.16	0.00	0.62	11.20	86.81	23.40	281.50	0.3992	-830.0	-766.5
53	0.00	0.80	0.00	0.43	11.48	86.74	23.32	282.21	0.3986	-821.0	-563.4
54	0.00	3.65	0.00	1.96	9.85	86.50	23.09	278.18	0.3920	-813.0	-741.7
55	0.00	1.51	0.00	0.81	9.71	86.42	23.01	277.82	0.3905	-929.0	-697.2
56	0.00	1.25	0.00	0.67	13.03	86.61	23.20	286.11	0.4011	-605.0	-530.9
57	0.00	1.60	0.00	0.88	18.94	87.33	23.91	299.05	0.4404	693.0	460.8
58	1.42	-25.00	0.77	-25.00	15.74	86.75	23.33	292.47	0.4143	899.1	999999
59	0.00	1.51	0.00	0.81	11.14	86.24	22.82	281.53	0.3901	-812.0	-706.6
60	2.76	9.16	1.51	5.03	18.46	87.01	23.60	298.31	0.4331	935.5	603.6
61	0.00	1.51	0.00	0.82	13.20	86.26	22.84	286.71	0.3963	-657.0	-525.6
62	0.00	2.31	0.00	1.26	16.63	86.59	23.17	294.64	0.4165	801.0	547.1
63	0.00	4.98	0.00	2.68	13.41	85.78	22.36	287.49	0.3897	-906.0	-712.5
64	0.00	0.62	0.00	0.33	12.38	85.65	22.23	284.96	0.3841	-803.0	-564.0
65	0.00	1.33	0.00	0.71	12.02	85.51	22.10	284.10	0.3810	-924.0	-801.7
66	0.00	1.42	0.00	0.76	13.63	85.60	22.18	288.15	0.3878	-818.0	-708.6
67	0.00	1.07	0.00	0.57	10.91	85.29	21.87	281.28	0.3746	-893.0	-755.9
68	0.00	1.16	0.00	0.62	13.52	85.42	22.00	287.98	0.3846	-835.0	-634.8
69	0.00	1.07	0.00	0.58	17.90	85.90	22.48	298.07	0.4141	629.0	505.8
70	0.00	0.80	0.00	0.43	14.12	85.41	22.00	289.51	0.3870	741.0	524.2
71	0.00	2.05	0.00	1.10	15.70	85.55	22.14	293.28	0.3966	-542.0	-452.0
72	0.00	2.85	0.00	1.52	12.41	85.08	21.67	285.31	0.3755	-690.0	-786.7
73	0.00	1.78	0.00	0.97	20.17	85.64	22.22	303.22	0.4261	810.0	682.8
74	0.62	2.76	0.33	1.48	14.46	84.81	21.40	290.78	0.3794	-968.9	-776.9
75	0.00	0.80	0.00	0.43	15.95	84.94	21.52	294.37	0.3889	-692.0	-596.7
76	0.44	1.96	0.24	1.04	13.79	84.65	21.23	289.20	0.3740	-1036.6	-821.7
77	0.00	2.22	0.00	1.18	12.40	84.52	21.10	285.61	0.3667	-797.0	-709.0
78	1.69	6.23	0.90	3.33	14.80	84.71	21.30	291.71	0.3796	-936.6	-299.4
79	0.00	1.87	0.00	1.00	15.10	84.71	21.30	292.48	0.3811	-932.0	-733.2
80	0.00	0.80	0.00	0.44	20.52	85.41	22.00	304.19	0.4258	843.0	699.9
81	0.89	6.58	0.47	3.49	12.26	84.24	20.82	285.39	0.3619	-1071.0	-841.8
82	0.00	1.33	0.00	0.70	14.34	82.61	19.19	292.26	0.3456	-816.0	-696.5
83	0.00	1.78	0.00	0.94	14.57	82.20	18.78	293.28	0.3407	-834.0	-719.4
84	0.00	2.49	0.00	1.31	15.06	82.18	18.76	294.64	0.3432	-732.0	-597.4
85	0.00	1.96	0.00	1.03	14.62	81.81	18.39	293.79	0.3351	-989.0	-760.0

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
