SDO HMI 2014-09-12 23:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 124.89 | 592.56 | 81.06 | 380.50 | -14.36 | 96.03 | 33.16 | 236.47 | 0.6368 | -84.2 | -86.0 | |
|
previous
or next observation for the same group /

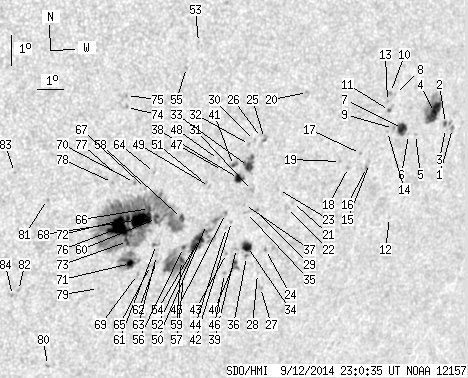

back to the solar disc SDO HMI 2014-09-12 23:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.67 | 0.00 | 1.94 | -12.49 | 105.80 | 42.94 | 245.39 | 0.7338 | 514.0 | 396.5 | |
| 0.98 | 3.83 | 0.71 | 2.76 | -12.30 | 105.47 | 42.60 | 245.46 | 0.7294 | 727.5 | 542.1 | |
| 0.00 | 1.87 | 0.00 | 1.35 | -12.46 | 105.50 | 42.63 | 245.27 | 0.7305 | 315.0 | 443.5 | |
| 15.03 | 35.23 | 10.72 | 25.07 | -11.90 | 104.93 | 42.06 | 245.69 | 0.7217 | 795.2 | 588.6 | |
| 0.00 | 0.98 | 0.00 | 0.69 | -12.54 | 104.26 | 41.40 | 244.51 | 0.7174 | 436.0 | 429.3 | |
| 0.00 | 0.62 | 0.00 | 0.44 | -12.52 | 103.97 | 41.10 | 244.38 | 0.7141 | 441.0 | 364.0 | |
| 7.56 | 10.41 | 5.30 | 7.29 | -12.30 | 103.68 | 40.82 | 244.50 | 0.7099 | 747.8 | 516.7 | |
| 0.00 | 0.89 | 0.00 | 0.61 | -11.15 | 103.19 | 40.33 | 245.74 | 0.6987 | 483.0 | 475.5 | |
| 0.00 | 1.51 | 0.00 | 1.05 | -12.27 | 103.31 | 40.44 | 244.34 | 0.7056 | 585.0 | 562.1 | |
| 0.00 | 1.60 | 0.00 | 1.10 | -11.10 | 102.98 | 40.12 | 245.69 | 0.6961 | 727.0 | 654.2 | |
| 0.62 | 3.20 | 0.43 | 2.21 | -11.67 | 103.04 | 40.17 | 244.97 | 0.6996 | 828.9 | 700.8 | |
| 0.00 | 0.71 | 0.00 | 0.51 | -15.16 | 103.75 | 40.89 | 240.91 | 0.7253 | 527.0 | 385.6 | |
| 0.00 | 0.71 | 0.00 | 0.49 | -11.38 | 102.91 | 40.04 | 245.28 | 0.6966 | 655.0 | 648.0 | |
| 0.00 | 0.62 | 0.00 | 0.43 | -12.34 | 103.08 | 40.21 | 244.11 | 0.7034 | 548.0 | 539.1 | |
| 0.00 | 1.25 | 0.00 | 0.86 | -13.32 | 102.54 | 39.67 | 242.53 | 0.7025 | 536.0 | 425.6 | |
| 0.00 | 1.51 | 0.00 | 1.05 | -13.44 | 102.44 | 39.57 | 242.32 | 0.7020 | 662.0 | 599.4 | |
| 0.00 | 0.89 | 0.00 | 0.61 | -12.96 | 102.11 | 39.24 | 242.73 | 0.6958 | 731.0 | 642.9 | |
| 0.00 | 1.51 | 0.00 | 1.04 | -13.38 | 101.70 | 38.84 | 241.95 | 0.6936 | 569.0 | 482.5 | |
| 0.00 | 1.16 | 0.00 | 0.79 | -13.16 | 101.34 | 38.48 | 242.02 | 0.6884 | 656.0 | 435.8 | |
| 0.00 | 1.33 | 0.00 | 0.87 | -10.83 | 99.67 | 36.81 | 244.12 | 0.6564 | 699.0 | 565.5 | |
| 0.00 | 1.25 | 0.00 | 0.84 | -14.34 | 99.68 | 36.81 | 239.39 | 0.6768 | 612.0 | 477.2 | |
| 0.00 | 2.85 | 0.00 | 1.91 | -14.49 | 99.51 | 36.65 | 239.08 | 0.6759 | 572.0 | 464.0 | |
| 0.00 | 0.80 | 0.00 | 0.53 | -13.87 | 99.05 | 36.18 | 239.58 | 0.6670 | 621.0 | 538.2 | |
| 0.00 | 1.25 | 0.00 | 0.84 | -15.80 | 98.92 | 36.05 | 236.97 | 0.6778 | -667.0 | -584.6 | |
| 0.00 | 3.20 | 0.00 | 2.08 | -12.17 | 98.23 | 35.36 | 241.31 | 0.6473 | -377.0 | -386.6 | |
| 0.00 | 0.80 | 0.00 | 0.52 | -12.13 | 98.11 | 35.24 | 241.28 | 0.6456 | -303.0 | -298.6 | |
| 0.00 | 2.13 | 0.00 | 1.45 | -17.05 | 98.99 | 36.13 | 235.44 | 0.6867 | 607.0 | 520.0 | |
| 0.00 | 0.62 | 0.00 | 0.42 | -16.57 | 98.77 | 35.90 | 235.88 | 0.6812 | 198.0 | 217.6 | |
| 0.00 | 1.33 | 0.00 | 0.88 | -14.49 | 98.31 | 35.45 | 238.24 | 0.6627 | 694.0 | 591.7 | |
| 0.00 | 1.51 | 0.00 | 0.98 | -12.21 | 97.86 | 34.99 | 241.00 | 0.6431 | -397.0 | -396.4 | |
| 0.00 | 2.49 | 0.00 | 1.63 | -13.82 | 98.04 | 35.18 | 238.93 | 0.6554 | -451.0 | -261.5 | |
| 0.00 | 1.42 | 0.00 | 0.92 | -12.32 | 97.68 | 34.82 | 240.72 | 0.6418 | -659.0 | -597.1 | |
| 5.60 | 14.59 | 3.63 | 9.45 | -13.03 | 97.76 | 34.89 | 239.80 | 0.6471 | -777.6 | -593.3 | |
| 6.94 | 9.87 | 4.61 | 6.56 | -15.65 | 98.19 | 35.33 | 236.64 | 0.6689 | 755.6 | 453.8 | |
| 0.00 | 2.13 | 0.00 | 1.40 | -14.52 | 97.94 | 35.07 | 237.92 | 0.6588 | 522.0 | 433.7 | |
| 0.00 | 1.69 | 0.00 | 1.13 | -15.97 | 98.22 | 35.35 | 236.24 | 0.6714 | 499.0 | 369.6 | |
| 0.00 | 0.98 | 0.00 | 0.64 | -14.26 | 97.81 | 34.95 | 238.19 | 0.6557 | 662.0 | 632.4 | |
| 4.89 | 6.94 | 3.17 | 4.49 | -13.39 | 97.44 | 34.57 | 239.07 | 0.6458 | -697.9 | -450.0 | |
| 0.00 | 2.67 | 0.00 | 1.76 | -15.68 | 97.77 | 34.91 | 236.29 | 0.6647 | 838.0 | 627.9 | |
| 1.51 | 7.12 | 1.00 | 4.73 | -16.14 | 97.79 | 34.92 | 235.71 | 0.6679 | 666.1 | 472.0 | |
| 0.71 | 3.65 | 0.46 | 2.35 | -12.95 | 97.18 | 34.32 | 239.48 | 0.6400 | -792.9 | -725.0 | |
| 0.00 | 1.16 | 0.00 | 0.76 | -14.77 | 97.41 | 34.55 | 237.20 | 0.6546 | 533.0 | 433.3 | |
| 0.00 | 0.80 | 0.00 | 0.53 | -15.81 | 97.42 | 34.55 | 235.84 | 0.6618 | 723.0 | 650.2 | |
| 0.00 | 0.98 | 0.00 | 0.64 | -14.96 | 97.26 | 34.39 | 236.84 | 0.6541 | 532.0 | 460.8 | |
| 0.00 | 1.87 | 0.00 | 1.21 | -14.49 | 97.14 | 34.27 | 237.36 | 0.6497 | 900.0 | 738.5 | |
| 0.00 | 1.60 | 0.00 | 1.06 | -16.47 | 97.47 | 34.61 | 235.04 | 0.6669 | 585.0 | 475.3 | |
| 0.00 | 0.80 | 0.00 | 0.51 | -13.09 | 96.79 | 33.92 | 239.01 | 0.6364 | -612.0 | -419.2 | |
| 0.00 | 1.25 | 0.00 | 0.79 | -12.72 | 96.58 | 33.72 | 239.36 | 0.6316 | -656.0 | -607.1 | |
| 0.00 | 1.42 | 0.00 | 0.91 | -13.57 | 96.38 | 33.51 | 238.04 | 0.6349 | -516.0 | -422.1 | |
| 0.00 | 0.89 | 0.00 | 0.58 | -14.80 | 96.47 | 33.61 | 236.45 | 0.6444 | 717.0 | 731.6 | |
| 0.00 | 1.96 | 0.00 | 1.25 | -13.46 | 96.21 | 33.35 | 238.06 | 0.6323 | -470.0 | -462.0 | |
| 6.94 | 79.17 | 4.49 | 51.16 | -15.24 | 96.29 | 33.42 | 235.72 | 0.6455 | 888.4 | 406.2 | |
| 0.00 | 0.80 | 0.00 | 0.49 | -8.93 | 95.38 | 32.51 | 244.00 | 0.5930 | -689.0 | -502.3 | |
| 6.05 | -52.00 | 3.91 | -52.00 | -15.46 | 96.18 | 33.31 | 235.34 | 0.6458 | 700.8 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.71 | -9.69 | 95.02 | 32.15 | 242.58 | 0.5932 | -636.0 | -557.1 | |
| 0.71 | -52.00 | 0.46 | -52.00 | -15.49 | 95.73 | 32.87 | 234.94 | 0.6412 | 645.6 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.52 | -16.52 | 95.93 | 33.06 | 233.76 | 0.6508 | 437.0 | 357.8 | |
| 2.05 | 332.61 | 1.30 | 208.09 | -14.53 | 95.49 | 32.63 | 236.02 | 0.6317 | 589.9 | -320.5 | |
| 1.96 | -52.00 | 1.26 | -52.00 | -15.92 | 95.74 | 32.87 | 234.39 | 0.6443 | 806.5 | 999999 | |
| 3.02 | -58.00 | 1.91 | -58.00 | -14.47 | 94.56 | 31.70 | 235.34 | 0.6208 | -728.9 | 999999 | |
| 0.00 | 2.85 | 0.00 | 1.81 | -15.32 | 94.70 | 31.84 | 234.31 | 0.6287 | -752.0 | -597.7 | |
| 0.00 | 1.16 | 0.00 | 0.74 | -15.88 | 94.80 | 31.94 | 233.65 | 0.6339 | -445.0 | -274.5 | |
| 0.00 | 0.98 | 0.00 | 0.62 | -15.68 | 94.76 | 31.90 | 233.88 | 0.6321 | -637.0 | -559.2 | |
| 0.00 | 0.53 | 0.00 | 0.33 | -12.97 | 94.26 | 31.40 | 237.18 | 0.6064 | -579.0 | -522.2 | |
| 0.00 | 2.67 | 0.00 | 1.70 | -16.00 | 94.60 | 31.73 | 233.33 | 0.6326 | -741.0 | -608.6 | |
| 0.89 | -58.00 | 0.56 | -58.00 | -14.12 | 94.25 | 31.39 | 235.55 | 0.6147 | -772.4 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.72 | -13.46 | 94.01 | 31.14 | 236.27 | 0.6070 | -686.0 | -611.0 | |
| 23.84 | -58.00 | 14.94 | -58.00 | -14.46 | 93.98 | 31.11 | 234.86 | 0.6141 | -973.7 | 999999 | |
| 0.00 | 1.87 | 0.00 | 1.19 | -16.26 | 94.17 | 31.30 | 232.61 | 0.6300 | -465.0 | -472.0 | |
| 0.00 | 1.42 | 0.00 | 0.88 | -13.24 | 93.58 | 30.71 | 236.21 | 0.6004 | -767.0 | -694.2 | |
| 3.65 | -58.00 | 2.31 | -58.00 | -15.88 | 93.84 | 30.98 | 232.83 | 0.6235 | 705.0 | 999999 | |
| 2.67 | -58.00 | 1.66 | -58.00 | -14.39 | 93.49 | 30.63 | 234.52 | 0.6082 | -1098.1 | 999999 | |
| 2.40 | -58.00 | 1.51 | -58.00 | -15.15 | 93.61 | 30.75 | 233.60 | 0.6153 | -517.6 | 999999 | |
| 0.00 | 1.51 | 0.00 | 0.91 | -10.81 | 92.99 | 30.12 | 239.26 | 0.5757 | -570.0 | -512.5 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -10.43 | 92.95 | 30.08 | 239.81 | 0.5725 | -677.0 | -581.1 | |
| 26.87 | -58.00 | 16.72 | -58.00 | -14.67 | 93.24 | 30.38 | 233.93 | 0.6075 | -1068.7 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.55 | -12.97 | 92.93 | 30.07 | 236.02 | 0.5909 | -752.0 | -551.7 | |
| 0.00 | 1.16 | 0.00 | 0.71 | -13.19 | 92.78 | 29.92 | 235.58 | 0.5908 | -776.0 | -607.0 | |
| 0.00 | 0.71 | 0.00 | 0.45 | -16.63 | 92.80 | 29.94 | 230.90 | 0.6184 | -569.0 | -463.4 | |
| 0.00 | 1.51 | 0.00 | 0.96 | -19.09 | 91.39 | 28.52 | 226.44 | 0.6250 | -710.0 | -589.4 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -13.59 | 90.53 | 27.66 | 232.88 | 0.5681 | -720.0 | -670.3 | |
| 0.00 | 0.89 | 0.00 | 0.54 | -16.51 | 89.91 | 27.05 | 228.22 | 0.5868 | -509.0 | -434.7 | |
| 0.00 | 0.98 | 0.00 | 0.58 | -12.64 | 89.27 | 26.40 | 232.97 | 0.5456 | -595.0 | -493.2 | |
| 0.00 | 1.07 | 0.00 | 0.65 | -16.66 | 89.72 | 26.86 | 227.82 | 0.5862 | -726.0 | -607.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
