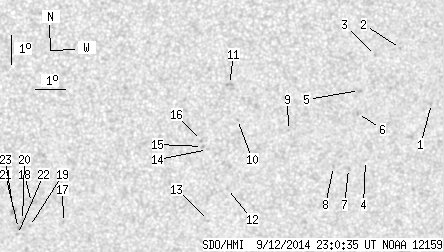

SDO HMI 2014-09-12 23:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 30.26 | 0.00 | 17.80 | -22.82 | 74.61 | 11.74 | 200.62 | 0.5404 | 138.0 | 71.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-12 23:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.33 | 0.00 | 0.80 | -21.18 | 82.21 | 19.35 | 213.35 | 0.5641 | 714.0 | 579.2 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -19.26 | 80.92 | 18.06 | 213.61 | 0.5308 | -603.0 | -463.3 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -19.46 | 80.10 | 17.24 | 212.19 | 0.5267 | -530.0 | -488.0 | |
| 0.00 | 0.89 | 0.00 | 0.54 | -23.06 | 80.20 | 17.34 | 208.77 | 0.5718 | 663.0 | 551.1 | |
| 0.00 | 2.49 | 0.00 | 1.46 | -20.63 | 79.70 | 16.83 | 210.37 | 0.5381 | 699.0 | 631.8 | |
| 0.00 | 1.25 | 0.00 | 0.74 | -21.42 | 79.72 | 16.86 | 209.63 | 0.5481 | 837.0 | 701.9 | |
| 0.00 | 1.25 | 0.00 | 0.75 | -23.32 | 79.65 | 16.79 | 207.77 | 0.5713 | 711.0 | 601.2 | |
| 0.00 | 0.98 | 0.00 | 0.59 | -23.23 | 79.12 | 16.26 | 207.11 | 0.5667 | 776.0 | 657.9 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -21.92 | 77.45 | 14.58 | 205.79 | 0.5390 | 664.0 | 522.7 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -21.48 | 75.70 | 12.84 | 203.41 | 0.5225 | 472.0 | 431.8 | |
| 0.00 | 2.40 | 0.00 | 1.38 | -20.27 | 75.33 | 12.47 | 203.80 | 0.5038 | 786.0 | 700.4 | |
| 0.00 | 0.98 | 0.00 | 0.58 | -23.88 | 75.59 | 12.73 | 201.40 | 0.5542 | 719.0 | 604.8 | |
| 0.00 | 0.71 | 0.00 | 0.43 | -24.99 | 75.06 | 12.19 | 199.83 | 0.5665 | 511.0 | 446.8 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -22.49 | 74.79 | 11.93 | 201.15 | 0.5311 | 499.0 | 388.2 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -22.38 | 74.61 | 11.75 | 200.95 | 0.5287 | 577.0 | 549.8 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -22.17 | 74.56 | 11.70 | 201.02 | 0.5255 | 774.0 | 649.5 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -24.94 | 70.15 | 7.29 | 192.21 | 0.5462 | -656.0 | -531.6 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -24.21 | 69.05 | 6.18 | 190.67 | 0.5324 | -849.0 | -728.1 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -25.07 | 69.02 | 6.16 | 190.31 | 0.5447 | -728.0 | -589.4 | |
| 0.00 | 2.22 | 0.00 | 1.31 | -24.85 | 68.78 | 5.91 | 189.99 | 0.5409 | -744.0 | -611.2 | |
| 0.00 | 1.69 | 0.00 | 1.00 | -25.13 | 68.66 | 5.79 | 189.69 | 0.5448 | -754.0 | -692.5 | |
| 0.00 | 1.25 | 0.00 | 0.74 | -25.35 | 68.63 | 5.77 | 189.58 | 0.5478 | -531.0 | -430.3 | |
| 0.00 | 3.20 | 0.00 | 1.88 | -24.52 | 68.46 | 5.60 | 189.58 | 0.5354 | -833.0 | -722.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
