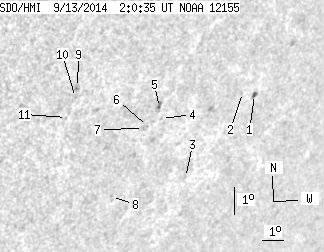

SDO HMI 2014-09-13 02:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.42 | 15.65 | 1.24 | 12.52 | -20.09 | 105.79 | 44.58 | 237.12 | 0.7860 | 231.2 | 187.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-13 02:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.42 | 2.76 | 1.24 | 2.41 | -19.86 | 110.30 | 49.09 | 239.74 | 0.8250 | 387.4 | 260.0 | |
| 0.00 | 0.53 | 0.00 | 0.46 | -19.73 | 109.66 | 48.45 | 239.58 | 0.8190 | 434.0 | 447.2 | |
| 0.00 | 0.62 | 0.00 | 0.53 | -22.44 | 108.06 | 46.85 | 235.80 | 0.8175 | 410.0 | 348.9 | |
| 0.00 | 0.71 | 0.00 | 0.57 | -20.24 | 106.05 | 44.84 | 237.15 | 0.7897 | 459.0 | 395.6 | |
| 0.00 | 3.38 | 0.00 | 2.69 | -19.85 | 105.82 | 44.61 | 237.47 | 0.7857 | 718.0 | 518.0 | |
| 0.00 | 0.71 | 0.00 | 0.57 | -20.46 | 105.50 | 44.29 | 236.60 | 0.7858 | 530.0 | 472.2 | |
| 0.00 | 1.51 | 0.00 | 1.20 | -20.51 | 105.34 | 44.12 | 236.45 | 0.7846 | 547.0 | 449.9 | |
| 0.00 | 1.16 | 0.00 | 0.93 | -22.77 | 104.75 | 43.54 | 233.60 | 0.7913 | 613.0 | 493.8 | |
| 0.00 | 2.67 | 0.00 | 1.97 | -18.83 | 101.91 | 40.70 | 236.36 | 0.7436 | -692.0 | -494.6 | |
| 0.00 | 0.80 | 0.00 | 0.59 | -19.16 | 101.92 | 40.71 | 235.98 | 0.7456 | -415.0 | -407.3 | |
| 0.00 | 0.80 | 0.00 | 0.60 | -19.82 | 101.74 | 40.53 | 235.10 | 0.7477 | -486.0 | -419.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
