SDO HMI 2014-09-13 02:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 34.52 | 0.00 | 20.52 | -23.40 | 73.86 | 12.64 | 201.53 | 0.5530 | -24.1 | -35.5 | |
|
previous
or next observation for the same group /

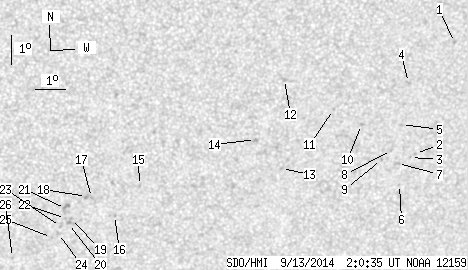

back to the solar disc SDO HMI 2014-09-13 02:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.33 | 0.00 | 0.79 | -19.31 | 81.04 | 19.83 | 216.04 | 0.5462 | -658.0 | -491.1 | |
| 0.00 | 1.25 | 0.00 | 0.76 | -23.07 | 80.21 | 19.00 | 211.00 | 0.5837 | 486.0 | 435.2 | |
| 0.00 | 0.80 | 0.00 | 0.49 | -23.21 | 80.06 | 18.85 | 210.67 | 0.5842 | 568.0 | 423.3 | |
| 0.00 | 1.60 | 0.00 | 0.95 | -20.60 | 79.64 | 18.43 | 212.69 | 0.5499 | 774.0 | 648.6 | |
| 0.00 | 1.51 | 0.00 | 0.91 | -22.04 | 79.59 | 18.37 | 211.16 | 0.5668 | 566.0 | 432.1 | |
| 0.00 | 0.71 | 0.00 | 0.44 | -24.14 | 79.82 | 18.60 | 209.49 | 0.5936 | 460.0 | 410.9 | |
| 0.00 | 2.14 | 0.00 | 1.30 | -23.40 | 79.64 | 18.42 | 209.93 | 0.5834 | 704.0 | 597.9 | |
| 0.00 | 0.71 | 0.00 | 0.43 | -22.93 | 79.36 | 18.15 | 210.00 | 0.5759 | 692.0 | 619.4 | |
| 0.00 | 0.98 | 0.00 | 0.59 | -23.23 | 79.06 | 17.85 | 209.31 | 0.5774 | 744.0 | 643.6 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -21.98 | 78.21 | 17.00 | 209.30 | 0.5561 | 496.0 | 483.4 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -21.42 | 77.20 | 15.98 | 208.35 | 0.5420 | 665.0 | 531.9 | |
| 0.00 | 2.22 | 0.00 | 1.28 | -20.33 | 75.44 | 14.23 | 206.65 | 0.5159 | 771.0 | 670.2 | |
| 0.00 | 1.33 | 0.00 | 0.80 | -23.41 | 75.66 | 14.45 | 204.33 | 0.5577 | 686.0 | 459.2 | |
| 0.00 | 1.96 | 0.00 | 1.15 | -22.37 | 74.67 | 13.46 | 203.67 | 0.5381 | 787.0 | 622.5 | |
| 0.00 | 1.07 | 0.00 | 0.63 | -23.87 | 70.91 | 9.70 | 196.66 | 0.5397 | -563.0 | -557.2 | |
| 0.00 | 0.98 | 0.00 | 0.58 | -24.92 | 70.15 | 8.94 | 194.87 | 0.5514 | -589.0 | -509.9 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -24.26 | 69.34 | 8.12 | 193.88 | 0.5391 | -860.0 | -747.5 | |
| 0.00 | 1.60 | 0.00 | 0.94 | -24.22 | 69.17 | 7.95 | 193.62 | 0.5380 | -837.0 | -770.0 | |
| 0.00 | 0.98 | 0.00 | 0.58 | -24.99 | 68.71 | 7.50 | 192.52 | 0.5475 | -817.0 | -714.2 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -25.17 | 68.62 | 7.41 | 192.30 | 0.5497 | -800.0 | -713.4 | |
| 0.00 | 4.36 | 0.00 | 2.57 | -24.63 | 68.49 | 7.28 | 192.32 | 0.5417 | -694.0 | -707.2 | |
| 0.00 | 0.62 | 0.00 | 0.37 | -24.99 | 68.51 | 7.30 | 192.20 | 0.5468 | -740.0 | -647.1 | |
| 0.00 | 0.98 | 0.00 | 0.58 | -25.27 | 68.36 | 7.14 | 191.84 | 0.5504 | -656.0 | -570.0 | |
| 0.00 | 1.69 | 0.00 | 1.00 | -25.52 | 68.31 | 7.09 | 191.65 | 0.5538 | -698.0 | -498.6 | |
| 0.00 | 1.07 | 0.00 | 0.63 | -25.66 | 68.08 | 6.86 | 191.23 | 0.5551 | -591.0 | -491.7 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -26.36 | 66.80 | 5.58 | 188.96 | 0.5619 | -522.0 | -551.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
