SDO HMI 2014-09-13 03:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.81 | 22.08 | 5.91 | 34.77 | 13.77 | 347.90 | -72.77 | 77.84 | 0.9482 | -21.7 | 176.0 | |
|
previous
or next observation for the same group /

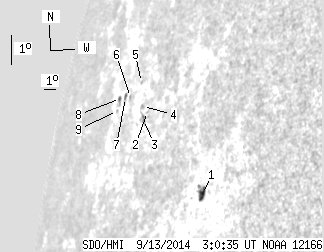

back to the solar disc SDO HMI 2014-09-13 03:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.81 | 8.72 | 5.91 | 10.75 | 12.48 | 353.50 | -67.16 | 79.51 | 0.9168 | -384.6 | -177.2 | |
| 0.00 | 0.53 | 0.00 | 0.87 | 14.30 | 347.14 | -73.53 | 77.24 | 0.9541 | 348.0 | 377.0 | |
| 0.00 | 3.03 | 0.00 | 5.00 | 14.03 | 346.92 | -73.74 | 77.51 | 0.9552 | 542.0 | 478.7 | |
| 0.00 | 2.23 | 0.00 | 3.75 | 14.38 | 346.50 | -74.17 | 77.12 | 0.9573 | 326.0 | 337.4 | |
| 0.00 | 1.25 | 0.00 | 2.18 | 15.04 | 345.74 | -74.92 | 76.39 | 0.9607 | -215.0 | -115.3 | |
| 0.00 | 1.25 | 0.00 | 2.30 | 14.48 | 344.94 | -75.73 | 76.93 | 0.9645 | 324.0 | 340.9 | |
| 0.00 | 2.58 | 0.00 | 4.95 | 14.41 | 344.36 | -76.31 | 76.96 | 0.9671 | 313.0 | 184.1 | |
| 0.00 | 1.78 | 0.00 | 3.55 | 14.31 | 343.78 | -76.88 | 77.03 | 0.9695 | 96.0 | 75.6 | |
| 0.00 | 0.71 | 0.00 | 1.42 | 13.93 | 343.77 | -76.89 | 77.41 | 0.9697 | 237.0 | 167.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
