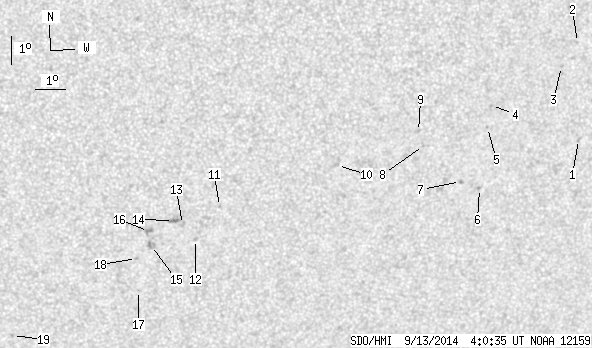

SDO HMI 2014-09-13 04:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 37.14 | 0.00 | 22.13 | -23.71 | 72.59 | 12.48 | 201.06 | 0.5574 | -15.3 | -259.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-13 04:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.87 | 0.00 | 1.16 | -21.92 | 82.89 | 22.78 | 216.92 | 0.6001 | 529.0 | 456.0 | |
| 0.00 | 1.16 | 0.00 | 0.69 | -18.60 | 82.35 | 22.23 | 220.03 | 0.5597 | 601.0 | 451.7 | |
| 0.00 | 1.25 | 0.00 | 0.75 | -19.38 | 81.91 | 21.79 | 218.55 | 0.5641 | 735.0 | 538.1 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -20.59 | 79.67 | 19.55 | 214.26 | 0.5587 | 753.0 | 677.1 | |
| 0.00 | 0.98 | 0.00 | 0.59 | -21.34 | 79.63 | 19.52 | 213.42 | 0.5672 | 699.0 | 483.2 | |
| 0.00 | 1.07 | 0.00 | 0.66 | -23.46 | 79.66 | 19.55 | 211.35 | 0.5921 | 649.0 | 592.8 | |
| 0.00 | 1.78 | 0.00 | 1.08 | -23.18 | 78.96 | 18.84 | 210.70 | 0.5838 | 762.0 | 601.1 | |
| 0.00 | 0.80 | 0.00 | 0.48 | -21.87 | 77.51 | 17.39 | 209.97 | 0.5574 | 649.0 | 502.1 | |
| 0.00 | 2.05 | 0.00 | 1.21 | -21.37 | 77.28 | 17.16 | 210.12 | 0.5497 | 86.0 | 174.6 | |
| 0.00 | 1.42 | 0.00 | 0.84 | -22.45 | 74.66 | 14.55 | 205.28 | 0.5457 | 753.0 | 586.8 | |
| 0.00 | 1.16 | 0.00 | 0.68 | -23.76 | 70.82 | 10.70 | 198.33 | 0.5425 | -706.0 | -617.0 | |
| 0.00 | 2.05 | 0.00 | 1.22 | -24.91 | 70.10 | 9.99 | 196.52 | 0.5554 | -648.0 | -559.1 | |
| 0.00 | 2.67 | 0.00 | 1.58 | -24.37 | 69.62 | 9.51 | 196.06 | 0.5458 | -554.0 | -589.1 | |
| 0.00 | 4.63 | 0.00 | 2.73 | -24.22 | 69.31 | 9.19 | 195.64 | 0.5425 | -971.0 | -819.1 | |
| 0.00 | 5.61 | 0.00 | 3.33 | -25.09 | 68.63 | 8.51 | 194.11 | 0.5522 | -698.0 | -688.0 | |
| 0.00 | 4.72 | 0.00 | 2.78 | -24.59 | 68.50 | 8.38 | 194.14 | 0.5447 | -906.0 | -702.5 | |
| 0.00 | 0.71 | 0.00 | 0.43 | -26.71 | 68.30 | 8.19 | 192.86 | 0.5738 | -682.0 | -594.4 | |
| 0.00 | 1.25 | 0.00 | 0.74 | -25.55 | 68.16 | 8.04 | 193.14 | 0.5570 | -680.0 | -561.9 | |
| 0.00 | 1.25 | 0.00 | 0.76 | -28.30 | 64.08 | 3.96 | 185.98 | 0.5863 | -662.0 | -483.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
