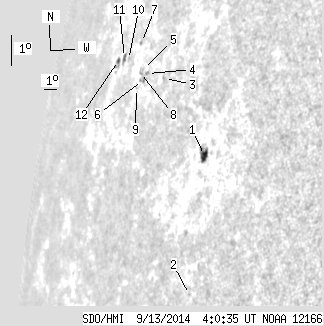

SDO HMI 2014-09-13 04:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.30 | 29.71 | 10.25 | 46.36 | 13.79 | 347.54 | -72.57 | 77.83 | 0.9473 | 22.7 | 173.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-13 04:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.16 | 9.52 | 6.21 | 11.48 | 12.48 | 353.51 | -66.60 | 79.54 | 0.9130 | -394.4 | -174.4 | |
| 0.00 | 0.62 | 0.00 | 0.74 | 8.28 | 354.11 | -66.01 | 84.18 | 0.9105 | -232.0 | -202.3 | |
| 0.00 | 1.78 | 0.00 | 2.60 | 14.33 | 348.87 | -71.25 | 77.33 | 0.9418 | 92.0 | 173.6 | |
| 0.00 | 1.60 | 0.00 | 2.54 | 14.28 | 347.16 | -72.96 | 77.29 | 0.9512 | 479.0 | 434.9 | |
| 0.00 | 0.71 | 0.00 | 1.15 | 14.35 | 346.66 | -73.45 | 77.20 | 0.9537 | 359.0 | 388.4 | |
| 0.00 | 2.31 | 0.00 | 3.73 | 14.02 | 346.83 | -73.29 | 77.55 | 0.9530 | 494.0 | 461.8 | |
| 0.00 | 1.42 | 0.00 | 2.43 | 15.08 | 345.76 | -74.36 | 76.38 | 0.9580 | -37.0 | -61.7 | |
| 0.00 | 1.42 | 0.00 | 2.34 | 14.22 | 346.43 | -73.68 | 77.31 | 0.9549 | 427.0 | 358.4 | |
| 0.00 | 0.27 | 0.00 | 0.44 | 13.72 | 346.41 | -73.70 | 77.83 | 0.9552 | 88.0 | 109.3 | |
| 0.00 | 1.96 | 0.00 | 3.54 | 14.44 | 344.81 | -75.30 | 77.00 | 0.9626 | 468.0 | 315.3 | |
| 1.16 | 3.65 | 2.15 | 6.77 | 14.44 | 344.30 | -75.81 | 76.96 | 0.9649 | 261.1 | 181.3 | |
| 0.98 | 4.45 | 1.89 | 8.60 | 14.27 | 343.68 | -76.43 | 77.10 | 0.9677 | 98.5 | 134.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
