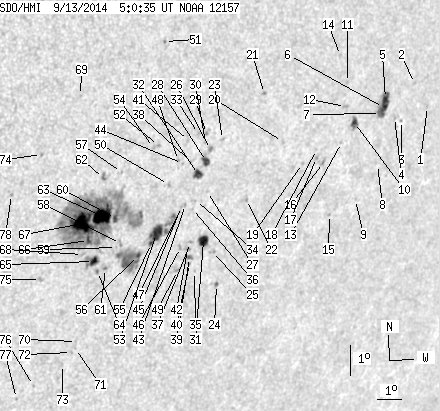

SDO HMI 2014-09-13 05:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 105.31 | 521.28 | 71.38 | 347.75 | -14.55 | 95.67 | 36.11 | 238.47 | 0.6705 | -108.6 | -163.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-13 05:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.77 | -12.12 | 106.93 | 47.36 | 247.93 | 0.7784 | 337.0 | 223.8 | |
| 0.00 | 1.34 | 0.00 | 1.03 | -11.32 | 106.16 | 46.59 | 248.58 | 0.7675 | -99.0 | -127.8 | |
| 0.00 | 1.16 | 0.00 | 0.89 | -12.46 | 105.83 | 46.26 | 247.03 | 0.7685 | 338.0 | 324.4 | |
| 0.00 | 2.05 | 0.00 | 1.57 | -12.33 | 105.49 | 45.92 | 247.03 | 0.7645 | 479.0 | 455.1 | |
| 5.96 | 21.01 | 4.50 | 15.85 | -11.68 | 104.94 | 45.38 | 247.59 | 0.7562 | 753.3 | 572.6 | |
| 4.54 | -5.00 | 3.43 | -5.00 | -11.96 | 104.92 | 45.35 | 247.23 | 0.7571 | 787.0 | 999999 | |
| 3.83 | -5.00 | 2.89 | -5.00 | -12.14 | 104.82 | 45.26 | 246.96 | 0.7568 | 701.6 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.41 | -13.79 | 105.08 | 45.51 | 245.06 | 0.7663 | 226.0 | 205.0 | |
| 0.00 | 1.34 | 0.00 | 1.02 | -14.85 | 104.37 | 44.81 | 243.43 | 0.7639 | 527.0 | 434.1 | |
| 4.01 | 7.57 | 2.97 | 5.61 | -12.32 | 103.73 | 44.16 | 246.21 | 0.7461 | 776.1 | 543.0 | |
| 0.00 | 1.16 | 0.00 | 0.84 | -11.00 | 103.17 | 43.60 | 247.61 | 0.7344 | 715.0 | 564.6 | |
| 0.00 | 2.31 | 0.00 | 1.69 | -11.77 | 103.23 | 43.66 | 246.67 | 0.7384 | 881.0 | 699.6 | |
| 0.00 | 1.34 | 0.00 | 0.99 | -12.92 | 103.30 | 43.73 | 245.25 | 0.7442 | 509.0 | 373.1 | |
| 0.00 | 1.42 | 0.00 | 1.02 | -10.11 | 102.71 | 43.14 | 248.54 | 0.7257 | 68.0 | 111.4 | |
| 0.00 | 1.16 | 0.00 | 0.87 | -15.24 | 103.34 | 43.77 | 242.43 | 0.7552 | 457.0 | 379.5 | |
| 0.00 | 1.96 | 0.00 | 1.44 | -13.50 | 102.65 | 43.09 | 244.20 | 0.7401 | 513.0 | 488.0 | |
| 0.00 | 1.42 | 0.00 | 1.04 | -13.31 | 102.31 | 42.75 | 244.26 | 0.7356 | 617.0 | 567.3 | |
| 0.00 | 0.53 | 0.00 | 0.39 | -13.05 | 102.26 | 42.69 | 244.56 | 0.7338 | 765.0 | 686.5 | |
| 0.00 | 1.07 | 0.00 | 0.77 | -13.45 | 101.75 | 42.19 | 243.79 | 0.7303 | 504.0 | 409.8 | |
| 0.00 | 1.42 | 0.00 | 1.01 | -12.66 | 100.76 | 41.19 | 244.25 | 0.7157 | 665.0 | 559.4 | |
| 0.00 | 1.42 | 0.00 | 0.98 | -11.05 | 99.73 | 40.17 | 245.79 | 0.6964 | 724.0 | 625.4 | |
| 0.00 | 1.51 | 0.00 | 1.07 | -14.43 | 99.65 | 40.08 | 241.36 | 0.7127 | 650.0 | 516.4 | |
| 0.00 | 1.87 | 0.00 | 1.27 | -12.39 | 98.28 | 38.71 | 243.18 | 0.6868 | -425.0 | -303.4 | |
| 0.71 | 2.05 | 0.51 | 1.46 | -17.14 | 99.06 | 39.49 | 237.63 | 0.7218 | 651.6 | 518.0 | |
| 0.00 | 2.40 | 0.00 | 1.69 | -16.03 | 98.62 | 39.05 | 238.72 | 0.7109 | -60.0 | -144.5 | |
| 0.00 | 2.49 | 0.00 | 1.69 | -12.67 | 97.85 | 38.29 | 242.55 | 0.6835 | -640.0 | -555.7 | |
| 0.00 | 1.07 | 0.00 | 0.73 | -14.03 | 97.99 | 38.42 | 240.86 | 0.6926 | -418.0 | -304.2 | |
| 4.18 | 7.30 | 2.83 | 4.94 | -13.05 | 97.76 | 38.20 | 241.99 | 0.6846 | -765.3 | -627.7 | |
| 0.00 | 1.34 | 0.00 | 0.90 | -12.14 | 97.61 | 38.04 | 243.10 | 0.6778 | -700.0 | -596.3 | |
| 0.00 | 0.89 | 0.00 | 0.60 | -12.43 | 97.61 | 38.05 | 242.72 | 0.6795 | -752.0 | -609.6 | |
| 7.57 | 12.46 | 5.26 | 8.67 | -15.63 | 98.17 | 38.60 | 238.93 | 0.7038 | 686.8 | 216.9 | |
| 4.72 | 6.85 | 3.19 | 4.64 | -13.44 | 97.52 | 37.95 | 241.32 | 0.6841 | -705.6 | -462.2 | |
| 0.00 | 1.60 | 0.00 | 1.07 | -12.12 | 97.29 | 37.72 | 242.94 | 0.6740 | -613.0 | -521.2 | |
| 0.00 | 0.71 | 0.00 | 0.49 | -14.28 | 97.56 | 38.00 | 240.25 | 0.6894 | 591.0 | 548.4 | |
| 0.00 | 0.62 | 0.00 | 0.44 | -16.63 | 98.04 | 38.47 | 237.59 | 0.7083 | 451.0 | 391.7 | |
| 0.00 | 0.71 | 0.00 | 0.49 | -14.54 | 97.50 | 37.93 | 239.88 | 0.6902 | 404.0 | 338.1 | |
| 0.00 | 1.78 | 0.00 | 1.23 | -15.65 | 97.65 | 38.08 | 238.56 | 0.6984 | 766.0 | 652.2 | |
| 0.00 | 0.89 | 0.00 | 0.60 | -13.00 | 97.12 | 37.56 | 241.66 | 0.6771 | -577.0 | -514.1 | |
| 0.80 | 2.76 | 0.56 | 1.91 | -16.15 | 97.72 | 38.15 | 237.99 | 0.7022 | 630.4 | 389.4 | |
| 0.00 | 0.98 | 0.00 | 0.68 | -16.35 | 97.77 | 38.20 | 237.77 | 0.7038 | 505.0 | 418.7 | |
| 0.00 | 1.42 | 0.00 | 0.95 | -12.31 | 96.93 | 37.36 | 242.45 | 0.6710 | -530.0 | -417.1 | |
| 0.00 | 2.23 | 0.00 | 1.54 | -15.87 | 97.58 | 38.01 | 238.24 | 0.6990 | 662.0 | 567.1 | |
| 0.00 | 0.98 | 0.00 | 0.66 | -14.38 | 97.19 | 37.62 | 239.88 | 0.6859 | 777.0 | 631.4 | |
| 0.00 | 0.98 | 0.00 | 0.65 | -13.03 | 96.82 | 37.25 | 241.41 | 0.6739 | -493.0 | -493.3 | |
| 0.00 | 0.89 | 0.00 | 0.60 | -14.43 | 97.04 | 37.47 | 239.72 | 0.6846 | 790.0 | 719.9 | |
| 0.00 | 1.87 | 0.00 | 1.28 | -15.78 | 97.28 | 37.71 | 238.15 | 0.6953 | 711.0 | 619.6 | |
| 0.00 | 1.16 | 0.00 | 0.78 | -14.59 | 96.99 | 37.43 | 239.48 | 0.6850 | 735.0 | 644.8 | |
| 0.00 | 0.80 | 0.00 | 0.53 | -12.92 | 96.64 | 37.08 | 241.44 | 0.6713 | -781.0 | -712.2 | |
| 0.00 | 2.23 | 0.00 | 1.54 | -16.54 | 97.33 | 37.76 | 237.24 | 0.7005 | 642.0 | 473.9 | |
| 0.00 | 1.69 | 0.00 | 1.13 | -13.67 | 96.39 | 36.82 | 240.28 | 0.6728 | -626.0 | -527.5 | |
| 0.00 | 1.25 | 0.00 | 0.80 | -9.07 | 95.55 | 35.99 | 246.11 | 0.6369 | -759.0 | -649.5 | |
| 0.00 | 1.16 | 0.00 | 0.76 | -12.38 | 95.78 | 36.21 | 241.61 | 0.6582 | -651.0 | -578.3 | |
| 12.64 | 34.54 | 8.52 | 23.32 | -15.24 | 96.22 | 36.65 | 238.12 | 0.6806 | 821.9 | 634.5 | |
| 0.00 | 1.69 | 0.00 | 1.11 | -12.43 | 95.60 | 36.03 | 241.42 | 0.6564 | -614.0 | -491.5 | |
| 1.51 | -53.00 | 1.02 | -53.00 | -15.56 | 96.09 | 36.52 | 237.62 | 0.6812 | 517.8 | 999999 | |
| 1.78 | 39.17 | 1.20 | 26.26 | -15.91 | 95.66 | 36.09 | 236.86 | 0.6788 | 769.7 | 138.9 | |
| 0.00 | 0.45 | 0.00 | 0.29 | -13.14 | 94.49 | 34.92 | 239.68 | 0.6481 | -334.0 | -433.8 | |
| 0.00 | 2.31 | 0.00 | 1.54 | -15.46 | 94.87 | 35.30 | 236.87 | 0.6674 | -560.0 | -533.1 | |
| 0.00 | 0.71 | 0.00 | 0.47 | -15.58 | 94.74 | 35.17 | 236.62 | 0.6668 | -653.0 | -580.8 | |
| 2.49 | 292.77 | 1.64 | 190.18 | -14.62 | 94.52 | 34.95 | 237.71 | 0.6580 | -674.2 | -391.7 | |
| 0.00 | 1.42 | 0.00 | 0.95 | -16.24 | 94.45 | 34.88 | 235.55 | 0.6681 | -766.0 | -658.8 | |
| 0.45 | 3.56 | 0.29 | 2.29 | -13.28 | 93.84 | 34.27 | 239.01 | 0.6416 | -839.0 | -641.7 | |
| 21.01 | -60.00 | 13.68 | -60.00 | -14.52 | 94.01 | 34.44 | 237.47 | 0.6517 | -1026.3 | 999999 | |
| 0.00 | 1.69 | 0.00 | 1.12 | -16.32 | 94.16 | 34.59 | 235.23 | 0.6656 | -828.0 | -701.6 | |
| 4.72 | 12.82 | 3.11 | 8.43 | -15.98 | 93.94 | 34.37 | 235.50 | 0.6608 | 700.0 | 390.1 | |
| 2.40 | -60.00 | 1.57 | -60.00 | -15.27 | 93.61 | 34.04 | 236.18 | 0.6524 | -480.7 | 999999 | |
| 21.99 | -60.00 | 14.21 | -60.00 | -14.69 | 93.28 | 33.72 | 236.68 | 0.6448 | -1138.7 | 999999 | |
| 0.00 | 1.69 | 0.00 | 1.10 | -15.71 | 93.47 | 33.90 | 235.48 | 0.6539 | -249.0 | -250.5 | |
| 0.00 | 0.36 | 0.00 | 0.22 | -10.55 | 92.60 | 33.03 | 241.96 | 0.6094 | -640.0 | -682.5 | |
| 0.00 | 0.36 | 0.00 | 0.24 | -18.61 | 93.84 | 34.28 | 232.12 | 0.6785 | -598.0 | -531.0 | |
| 0.00 | 0.80 | 0.00 | 0.54 | -18.84 | 93.86 | 34.29 | 231.85 | 0.6804 | -525.0 | -420.3 | |
| 0.00 | 1.07 | 0.00 | 0.72 | -18.96 | 93.73 | 34.17 | 231.60 | 0.6800 | -608.0 | -468.2 | |
| 0.00 | 0.89 | 0.00 | 0.60 | -19.35 | 93.48 | 33.91 | 230.93 | 0.6803 | -623.0 | -506.9 | |
| 0.00 | 1.51 | 0.00 | 0.94 | -12.34 | 91.40 | 31.83 | 238.44 | 0.6069 | -647.0 | -552.8 | |
| 0.00 | 2.31 | 0.00 | 1.49 | -16.42 | 92.02 | 32.46 | 233.39 | 0.6435 | -791.0 | -578.6 | |
| 0.00 | 0.89 | 0.00 | 0.60 | -19.98 | 92.51 | 32.94 | 229.38 | 0.6756 | -471.0 | -464.2 | |
| 0.00 | 0.89 | 0.00 | 0.59 | -20.38 | 91.95 | 32.38 | 228.44 | 0.6733 | -447.0 | -395.0 | |
| 0.00 | 1.25 | 0.00 | 0.77 | -13.55 | 90.48 | 30.91 | 235.95 | 0.6050 | -681.0 | -586.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
