SDO HMI 2014-09-13 05:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 30.81 | 0.00 | 18.46 | -23.47 | 73.96 | 14.39 | 203.93 | 0.5647 | -11.5 | -132.8 | |
|
previous
or next observation for the same group /

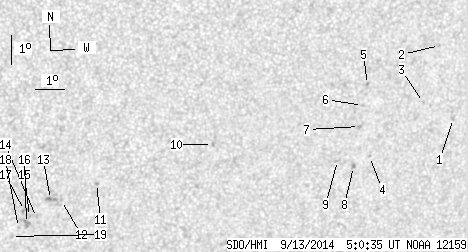

back to the solar disc SDO HMI 2014-09-13 05:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.23 | 0.00 | 1.38 | -21.95 | 82.88 | 23.31 | 217.52 | 0.6049 | 627.0 | 438.7 | |
| 0.00 | 0.80 | 0.00 | 0.48 | -19.41 | 81.98 | 22.42 | 219.29 | 0.5701 | 723.0 | 562.0 | |
| 0.00 | 1.16 | 0.00 | 0.71 | -21.34 | 81.72 | 22.15 | 216.79 | 0.5886 | 610.0 | 430.7 | |
| 0.00 | 0.89 | 0.00 | 0.55 | -23.12 | 80.11 | 20.54 | 212.95 | 0.5956 | 615.0 | 468.3 | |
| 0.00 | 1.42 | 0.00 | 0.85 | -20.62 | 79.67 | 20.10 | 214.97 | 0.5635 | 775.0 | 605.2 | |
| 0.00 | 0.89 | 0.00 | 0.54 | -21.33 | 79.60 | 20.03 | 214.11 | 0.5711 | 640.0 | 521.4 | |
| 0.00 | 1.51 | 0.00 | 0.92 | -22.05 | 79.60 | 20.03 | 213.36 | 0.5795 | 731.0 | 607.0 | |
| 0.00 | 1.78 | 0.00 | 1.10 | -23.45 | 79.60 | 20.03 | 211.99 | 0.5956 | 760.0 | 648.8 | |
| 0.00 | 1.69 | 0.00 | 1.03 | -23.21 | 79.01 | 19.44 | 211.45 | 0.5884 | 569.0 | 565.1 | |
| 0.00 | 1.42 | 0.00 | 0.84 | -22.47 | 74.62 | 15.05 | 206.03 | 0.5491 | 688.0 | 589.6 | |
| 0.00 | 1.42 | 0.00 | 0.84 | -23.71 | 70.83 | 11.27 | 199.26 | 0.5444 | -714.0 | -590.3 | |
| 0.00 | 1.16 | 0.00 | 0.68 | -24.28 | 69.70 | 10.14 | 197.12 | 0.5472 | -769.0 | -561.5 | |
| 0.00 | 4.01 | 0.00 | 2.36 | -24.23 | 69.33 | 9.76 | 196.55 | 0.5450 | -986.0 | -806.2 | |
| 0.00 | 0.45 | 0.00 | 0.26 | -24.86 | 68.91 | 9.34 | 195.53 | 0.5520 | -777.0 | -691.2 | |
| 0.00 | 0.98 | 0.00 | 0.58 | -24.82 | 68.67 | 9.10 | 195.17 | 0.5506 | -887.0 | -724.7 | |
| 0.00 | 4.01 | 0.00 | 2.38 | -25.07 | 68.58 | 9.02 | 194.91 | 0.5537 | -818.0 | -710.7 | |
| 0.00 | 3.03 | 0.00 | 1.79 | -24.60 | 68.48 | 8.92 | 194.99 | 0.5468 | -909.0 | -746.6 | |
| 0.00 | 0.80 | 0.00 | 0.48 | -25.21 | 68.32 | 8.76 | 194.44 | 0.5547 | -546.0 | -489.1 | |
| 0.00 | 1.16 | 0.00 | 0.69 | -25.52 | 68.11 | 8.54 | 193.95 | 0.5584 | -551.0 | -562.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
