SDO HMI 2014-09-13 06:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.61 | 145.11 | 17.14 | 78.65 | -15.76 | 65.97 | 6.95 | 196.61 | 0.4089 | 710.9 | 412.0 | |
|
previous
or next observation for the same group /

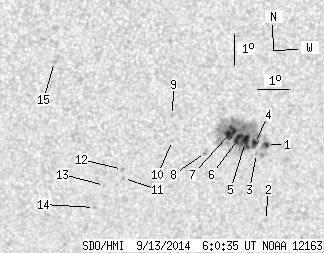

back to the solar disc SDO HMI 2014-09-13 06:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.05 | 132.10 | 1.11 | 71.61 | -15.93 | 67.01 | 7.99 | 198.82 | 0.4161 | 890.0 | 468.2 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -18.46 | 67.09 | 8.07 | 197.12 | 0.4542 | 639.0 | 509.2 | |
| 0.00 | 0.98 | 0.00 | 0.53 | -16.22 | 66.71 | 7.69 | 197.93 | 0.4190 | 715.0 | 589.7 | |
| 3.83 | -1.00 | 2.08 | -1.00 | -15.89 | 66.63 | 7.61 | 198.02 | 0.4136 | 966.8 | 999999 | |
| 9.08 | -1.00 | 4.93 | -1.00 | -15.82 | 66.34 | 7.32 | 197.43 | 0.4112 | 1068.0 | 999999 | |
| 6.41 | -1.00 | 3.48 | -1.00 | -15.72 | 66.12 | 7.10 | 197.00 | 0.4085 | 1162.5 | 999999 | |
| 10.24 | -1.00 | 5.54 | -1.00 | -15.52 | 65.86 | 6.84 | 196.56 | 0.4043 | 1291.5 | 999999 | |
| 0.00 | 2.14 | 0.00 | 1.16 | -16.16 | 65.09 | 6.07 | 194.37 | 0.4109 | 838.0 | 729.2 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -14.94 | 64.02 | 5.00 | 192.60 | 0.3878 | 810.0 | 568.7 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -15.75 | 64.04 | 5.02 | 192.18 | 0.4007 | 653.0 | 481.0 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -16.99 | 62.52 | 3.50 | 188.10 | 0.4159 | -729.0 | -583.8 | |
| 0.00 | 1.51 | 0.00 | 0.82 | -16.69 | 62.48 | 3.46 | 188.12 | 0.4111 | -929.0 | -692.6 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -17.22 | 61.92 | 2.90 | 186.67 | 0.4183 | -748.0 | -609.3 | |
| 0.00 | 1.34 | 0.00 | 0.73 | -17.95 | 61.62 | 2.60 | 185.79 | 0.4293 | -756.0 | -568.5 | |
| 0.00 | 1.87 | 0.00 | 0.99 | -13.16 | 60.32 | 1.30 | 183.63 | 0.3505 | -663.0 | -619.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
