group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
12158	132.07	686.51	76.95	399.46	15.60	87.95	31.12	288.12	0.5265	518.2	295.0

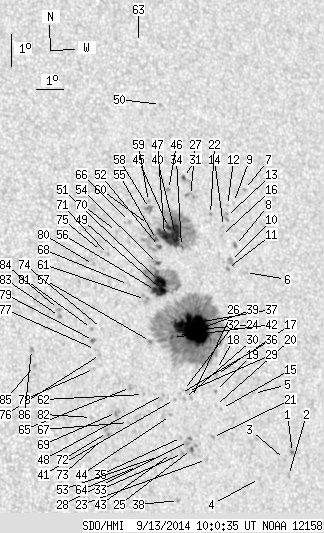

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2014-09-13 10:00:35 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0.44	1.42	0.27	0.85	10.92	91.34	34.51	278.82	0.5651	-727.4	-661.3
2	0.00	2.14	0.00	1.28	10.24	91.10	34.27	277.63	0.5612	-396.0	-396.0
3	0.00	1.07	0.00	0.64	10.73	91.01	34.19	278.51	0.5603	-667.0	-555.9
4	0.00	0.80	0.00	0.47	10.22	90.03	33.20	277.68	0.5458	-616.0	-582.1
5	0.00	1.33	0.00	0.79	12.80	90.15	33.33	282.36	0.5506	-534.0	-407.1
6	0.00	1.78	0.00	1.07	16.48	90.50	33.67	288.82	0.5638	398.0	287.6
7	0.00	1.42	0.00	0.86	19.01	91.01	34.18	292.95	0.5790	-734.0	-649.8
8	0.00	2.05	0.00	1.23	17.32	90.29	33.46	290.36	0.5636	741.0	637.6
9	0.00	0.27	0.00	0.16	18.64	90.50	33.67	292.54	0.5710	493.0	504.0
10	0.00	4.63	0.00	2.76	16.85	90.01	33.18	289.64	0.5582	802.0	609.0
11	0.00	1.78	0.00	1.06	16.65	89.85	33.02	289.34	0.5555	757.0	612.4
12	0.00	1.16	0.00	0.69	18.56	90.26	33.43	292.51	0.5674	536.0	440.2
13	0.00	4.27	0.00	2.56	18.23	90.14	33.31	291.99	0.5647	513.0	602.8
14	0.00	1.25	0.00	0.74	17.93	89.96	33.14	291.55	0.5613	902.0	705.5
15	0.00	0.89	0.00	0.52	12.42	88.92	32.09	281.92	0.5324	-466.0	-383.7
16	0.00	0.80	0.00	0.48	17.66	89.83	33.00	291.14	0.5586	715.0	563.7
17	0.00	2.05	0.00	1.20	13.46	88.89	32.06	283.87	0.5338	-410.0	-368.7
18	0.00	0.27	0.00	0.16	13.61	88.91	32.08	284.14	0.5345	-255.0	-250.0
19	0.00	1.16	0.00	0.68	12.95	88.78	31.95	282.94	0.5312	-549.0	-435.4
20	0.00	0.89	0.00	0.52	12.53	88.72	31.89	282.16	0.5296	-420.0	-351.0
21	0.00	1.51	0.00	0.88	11.57	88.48	31.65	280.39	0.5247	-532.0	-500.6
22	0.00	1.16	0.00	0.69	18.33	89.56	32.73	292.42	0.5573	-580.0	-495.8
23	0.00	1.25	0.00	0.72	10.92	88.18	31.35	279.19	0.5196	-456.0	-452.4
24	56.87	357.95	33.17	208.30	14.87	88.38	31.55	286.64	0.5299	1395.7	448.0
25	0.89	4.98	0.51	2.87	11.26	87.68	30.85	279.92	0.5127	-854.9	-671.5
26	0.00	1.33	0.00	0.77	12.83	87.89	31.06	282.91	0.5181	-499.0	-362.9
27	0.00	4.36	0.00	2.59	18.96	88.94	32.11	293.80	0.5515	392.0	505.7
28	0.00	4.00	0.00	2.31	11.51	87.61	30.78	280.41	0.5119	-927.0	-839.6
29	0.00	1.60	0.00	0.93	13.02	87.77	30.94	283.31	0.5168	-503.0	-388.2
30	0.00	1.33	0.00	0.77	12.81	87.63	30.80	282.95	0.5144	-636.0	-460.1
31	0.98	3.65	0.58	2.16	19.53	88.80	31.97	294.86	0.5521	-799.6	-727.9
32	0.00	0.98	0.00	0.56	13.06	87.63	30.80	283.42	0.5149	-595.0	-455.2
33	0.00	1.60	0.00	0.92	11.16	87.35	30.52	279.77	0.5076	-850.0	-734.3
34	0.44	124.77	0.26	73.08	17.43	88.29	31.46	291.37	0.5368	628.6	299.0
35	0.00	1.33	0.00	0.77	11.64	87.37	30.54	280.72	0.5086	-794.0	-603.4
36	0.00	0.80	0.00	0.46	12.97	87.51	30.68	283.29	0.5130	-656.0	-495.3
37	10.06	-24.00	5.83	-24.00	15.03	87.78	30.96	287.14	0.5219	1293.8	999999
38	0.00	1.78	0.00	1.02	9.75	87.05	30.22	277.02	0.5019	-811.0	-614.2
39	1.78	-24.00	1.03	-24.00	14.70	87.66	30.83	286.57	0.5192	1296.9	999999
40	20.38	-34.00	11.94	-34.00	17.81	88.14	31.31	292.13	0.5362	915.6	999999
41	0.00	0.89	0.00	0.51	12.81	87.27	30.44	283.02	0.5091	-656.0	-571.5
42	1.60	-24.00	0.93	-24.00	14.68	87.47	30.64	286.59	0.5165	1218.2	999999
43	0.00	0.89	0.00	0.51	11.18	86.96	30.13	279.89	0.5019	-603.0	-571.3
44	0.00	1.07	0.00	0.61	12.33	87.07	30.24	282.14	0.5052	-779.0	-605.3
45	3.03	-34.00	1.77	-34.00	18.04	87.92	31.09	292.65	0.5342	862.0	999999
46	0.00	1.33	0.00	0.79	19.20	88.16	31.33	294.61	0.5422	558.0	419.7
47	10.77	-34.00	6.28	-34.00	17.80	87.73	30.90	292.31	0.5306	1065.4	999999
48	0.00	1.25	0.00	0.71	12.98	86.90	30.07	283.47	0.5041	-605.0	-504.3
49	6.23	77.69	3.61	45.01	16.13	87.35	30.52	289.39	0.5192	1115.6	359.8
50	0.00	1.51	0.00	0.90	21.83	88.47	31.64	298.98	0.5588	640.0	506.8
51	11.12	-49.00	6.44	-49.00	16.41	87.29	30.46	289.94	0.5193	1099.6	999999
52	1.07	-34.00	0.62	-34.00	17.48	87.48	30.65	291.84	0.5260	980.0	999999
53	0.00	0.98	0.00	0.56	11.12	86.49	29.66	279.84	0.4948	-696.0	-599.5
54	0.89	4.45	0.52	2.58	16.96	87.31	30.48	290.97	0.5217	926.6	706.3
55	0.80	-34.00	0.47	-34.00	17.70	87.41	30.58	292.28	0.5259	1153.9	999999
56	4.72	-49.00	2.72	-49.00	16.15	87.10	30.27	289.53	0.5157	1160.8	999999
57	0.00	1.51	0.00	0.87	14.61	86.67	29.84	286.74	0.5048	751.0	619.2
58	0.00	3.92	0.00	2.28	18.66	87.34	30.51	294.07	0.5289	870.0	781.7
59	0.00	1.25	0.00	0.73	18.88	87.35	30.52	294.46	0.5300	546.0	481.6
60	0.00	2.14	0.00	1.24	18.17	87.21	30.38	293.25	0.5251	806.0	643.7
61	0.00	4.89	0.00	2.81	15.90	86.69	29.86	289.22	0.5092	657.0	731.7
62	0.00	1.07	0.00	0.61	13.03	86.19	29.36	283.75	0.4938	-624.0	-497.2
63	0.00	0.62	0.00	0.37	23.81	88.14	31.31	302.46	0.5656	446.0	318.6
64	0.00	0.98	0.00	0.55	10.87	85.72	28.89	279.45	0.4830	-722.0	-605.5
65	0.00	2.40	0.00	1.36	13.26	85.76	28.93	284.37	0.4881	-916.0	-603.8
66	0.00	1.60	0.00	0.93	18.31	86.54	29.71	293.86	0.5165	830.0	736.3
67	0.00	1.51	0.00	0.85	12.21	85.56	28.73	282.27	0.4827	-857.0	-581.9
68	0.00	1.42	0.00	0.82	16.39	86.16	29.33	290.41	0.5034	435.0	533.9
69	0.00	3.38	0.00	1.90	12.54	85.18	28.35	283.05	0.4777	-930.0	-850.0
70	0.00	1.07	0.00	0.61	18.03	86.01	29.18	293.62	0.5081	602.0	545.3
71	0.00	1.33	0.00	0.76	17.35	85.60	28.77	292.54	0.4994	885.0	699.5
72	0.00	2.76	0.00	1.55	11.95	84.79	27.96	281.93	0.4708	-746.0	-836.6
73	0.00	0.98	0.00	0.55	11.81	84.67	27.84	281.66	0.4687	-646.0	-453.1
74	0.00	0.80	0.00	0.45	15.11	84.99	28.16	288.42	0.4822	-356.0	-263.2
75	0.00	0.89	0.00	0.51	17.45	85.36	28.54	292.88	0.4966	768.0	678.0
76	0.00	0.89	0.00	0.50	14.33	84.84	28.01	286.87	0.4775	-464.0	-380.0
77	0.00	0.80	0.00	0.45	14.49	84.69	27.86	287.27	0.4757	-864.0	-633.4
78	0.00	1.07	0.00	0.60	13.91	84.58	27.75	286.12	0.4723	-783.0	-607.9
79	0.00	2.49	0.00	1.40	14.76	84.66	27.83	287.85	0.4762	-861.0	-718.6
80	0.00	1.16	0.00	0.66	17.07	85.01	28.18	292.33	0.4900	515.0	470.2
81	0.00	1.16	0.00	0.65	15.13	84.64	27.81	288.62	0.4772	-735.0	-635.5
82	0.00	1.25	0.00	0.70	12.44	84.29	27.46	283.11	0.4642	-773.0	-564.8
83	0.00	1.78	0.00	0.99	15.56	83.57	26.74	290.03	0.4633	-766.0	-678.7
84	0.00	1.60	0.00	0.90	15.77	83.57	26.74	290.48	0.4641	-876.0	-698.0
85	0.00	1.25	0.00	0.69	14.12	82.51	25.68	287.47	0.4424	-906.0	-699.5
86	0.00	2.67	0.00	1.47	14.61	82.47	25.64	288.57	0.4436	-797.0	-656.5

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
