SDO HMI 2014-09-13 11:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.19 | 38.88 | 9.48 | 50.37 | 13.62 | 347.81 | -68.47 | 78.21 | 0.9232 | -6.8 | 174.1 | |
|
previous
or next observation for the same group /

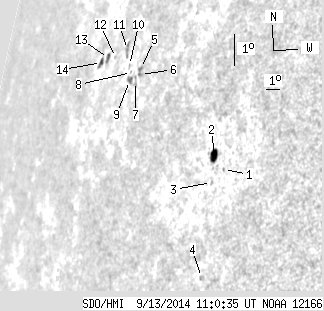

back to the solar disc SDO HMI 2014-09-13 11:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.82 | 12.13 | 354.57 | -61.71 | 80.10 | 0.8759 | -530.0 | -487.6 | |
| 6.41 | 8.63 | 6.69 | 9.01 | 12.48 | 353.83 | -62.45 | 79.68 | 0.8818 | -401.7 | -269.3 | |
| 0.00 | 1.42 | 0.00 | 1.48 | 11.66 | 353.96 | -62.32 | 80.61 | 0.8810 | -346.0 | -266.9 | |
| 0.00 | 2.31 | 0.00 | 2.39 | 8.79 | 354.28 | -62.00 | 83.90 | 0.8795 | -426.0 | -350.9 | |
| 0.00 | 1.69 | 0.00 | 2.24 | 14.42 | 347.13 | -69.15 | 77.32 | 0.9293 | 230.0 | 298.0 | |
| 0.00 | 1.60 | 0.00 | 2.12 | 14.24 | 347.25 | -69.03 | 77.51 | 0.9286 | 580.0 | 482.8 | |
| 0.00 | 3.03 | 0.00 | 4.04 | 13.99 | 346.97 | -69.31 | 77.77 | 0.9304 | 550.0 | 487.3 | |
| 0.00 | 0.27 | 0.00 | 0.37 | 14.21 | 346.46 | -69.82 | 77.51 | 0.9335 | 299.0 | 316.3 | |
| 0.00 | 4.27 | 0.00 | 5.83 | 13.96 | 346.45 | -69.83 | 77.78 | 0.9336 | 385.0 | 345.8 | |
| 0.00 | 0.98 | 0.00 | 1.36 | 14.39 | 346.15 | -70.13 | 77.30 | 0.9353 | 323.0 | 291.5 | |
| 0.00 | 5.78 | 0.00 | 8.18 | 14.83 | 345.64 | -70.64 | 76.81 | 0.9383 | 351.0 | 150.1 | |
| 0.00 | 0.27 | 0.00 | 0.39 | 14.48 | 344.74 | -71.54 | 77.15 | 0.9435 | 312.0 | 365.7 | |
| 0.00 | 3.56 | 0.00 | 5.43 | 14.37 | 344.11 | -72.17 | 77.23 | 0.9470 | 313.0 | 272.2 | |
| 1.78 | 4.27 | 2.79 | 6.71 | 14.18 | 343.53 | -72.75 | 77.40 | 0.9501 | 179.1 | 85.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
