SDO HMI 2014-09-13 12:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 93.51 | 433.06 | 66.14 | 302.79 | -14.69 | 95.19 | 39.46 | 240.58 | 0.7074 | -189.8 | -175.7 | |
|
previous
or next observation for the same group /

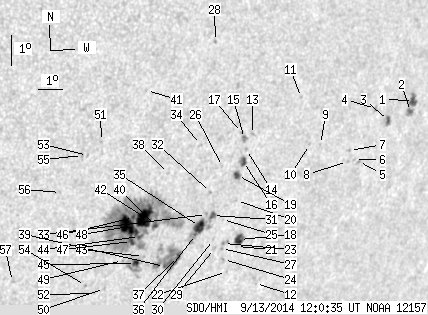

back to the solar disc SDO HMI 2014-09-13 12:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.16 | 8.45 | 4.20 | 6.88 | -11.81 | 104.96 | 49.23 | 249.09 | 0.7958 | 669.6 | 471.2 | |
| 1.96 | 4.80 | 1.60 | 3.92 | -12.15 | 104.90 | 49.17 | 248.66 | 0.7964 | 609.5 | 492.2 | |
| 2.14 | 4.45 | 1.71 | 3.56 | -12.34 | 103.92 | 48.18 | 248.03 | 0.7874 | 747.7 | 615.2 | |
| 0.00 | 2.14 | 0.00 | 1.68 | -11.89 | 103.21 | 47.48 | 248.27 | 0.7786 | 729.0 | 550.1 | |
| 0.00 | 1.25 | 0.00 | 0.98 | -13.54 | 102.83 | 47.10 | 246.12 | 0.7812 | 531.0 | 510.6 | |
| 0.00 | 1.07 | 0.00 | 0.84 | -13.45 | 102.63 | 46.90 | 246.13 | 0.7788 | 553.0 | 479.5 | |
| 0.00 | 0.89 | 0.00 | 0.69 | -13.14 | 102.32 | 46.59 | 246.37 | 0.7745 | 693.0 | 635.4 | |
| 0.00 | 1.16 | 0.00 | 0.90 | -13.49 | 102.32 | 46.59 | 245.95 | 0.7759 | 523.0 | 441.5 | |
| 0.00 | 0.89 | 0.00 | 0.67 | -12.82 | 100.95 | 45.22 | 246.13 | 0.7592 | 676.0 | 566.6 | |
| 0.00 | 1.42 | 0.00 | 1.07 | -12.77 | 100.46 | 44.73 | 245.95 | 0.7538 | 643.0 | 577.3 | |
| 0.00 | 1.16 | 0.00 | 0.85 | -11.22 | 99.79 | 44.05 | 247.57 | 0.7402 | 648.0 | 474.7 | |
| 0.00 | 0.53 | 0.00 | 0.41 | -17.15 | 99.23 | 43.50 | 240.02 | 0.7617 | 605.0 | 550.3 | |
| 0.00 | 1.69 | 0.00 | 1.21 | -12.22 | 97.90 | 42.17 | 245.36 | 0.7242 | -424.0 | -321.8 | |
| 0.00 | 1.25 | 0.00 | 0.89 | -12.68 | 97.75 | 42.02 | 244.69 | 0.7247 | -617.0 | -526.8 | |
| 0.00 | 3.38 | 0.00 | 2.41 | -12.32 | 97.59 | 41.86 | 245.07 | 0.7212 | -652.0 | -603.2 | |
| 3.20 | 6.23 | 2.30 | 4.47 | -13.06 | 97.70 | 41.97 | 244.18 | 0.7260 | -702.5 | -573.4 | |
| 0.00 | 1.16 | 0.00 | 0.82 | -12.11 | 97.43 | 41.69 | 245.25 | 0.7185 | -568.0 | -493.2 | |
| 6.14 | 8.81 | 4.53 | 6.49 | -15.61 | 98.12 | 42.39 | 241.25 | 0.7429 | 645.1 | 337.5 | |
| 3.02 | 5.07 | 2.17 | 3.64 | -13.50 | 97.54 | 41.81 | 243.55 | 0.7264 | -627.7 | -429.4 | |
| 0.00 | 0.80 | 0.00 | 0.58 | -14.31 | 97.68 | 41.95 | 242.60 | 0.7319 | 660.0 | 555.6 | |
| 0.00 | 1.51 | 0.00 | 1.12 | -15.83 | 98.05 | 42.32 | 240.94 | 0.7433 | 104.0 | 136.2 | |
| 0.00 | 0.36 | 0.00 | 0.26 | -16.63 | 97.84 | 42.10 | 239.85 | 0.7453 | 416.0 | 415.5 | |
| 0.00 | 1.25 | 0.00 | 0.91 | -15.68 | 97.46 | 41.73 | 240.78 | 0.7366 | 674.0 | 503.9 | |
| 0.00 | 1.60 | 0.00 | 1.18 | -16.21 | 97.60 | 41.87 | 240.21 | 0.7407 | 606.0 | 443.8 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -14.88 | 97.23 | 41.49 | 241.63 | 0.7300 | 446.0 | 463.7 | |
| 0.00 | 0.44 | 0.00 | 0.32 | -13.15 | 96.84 | 41.11 | 243.61 | 0.7171 | -545.0 | -494.2 | |
| 0.00 | 1.25 | 0.00 | 0.91 | -15.84 | 97.42 | 41.69 | 240.57 | 0.7369 | 390.0 | 345.1 | |
| 0.00 | 1.16 | 0.00 | 0.79 | -9.11 | 95.88 | 40.15 | 248.42 | 0.6869 | -634.0 | -556.5 | |
| 0.00 | 2.05 | 0.00 | 1.49 | -15.81 | 97.12 | 41.39 | 240.42 | 0.7337 | 386.0 | 260.4 | |
| 0.00 | 0.89 | 0.00 | 0.64 | -15.51 | 97.00 | 41.27 | 240.73 | 0.7309 | 427.0 | 323.4 | |
| 2.40 | 30.34 | 1.72 | 21.65 | -14.71 | 96.77 | 41.04 | 241.58 | 0.7243 | 804.6 | 521.4 | |
| 0.00 | 0.89 | 0.00 | 0.63 | -13.95 | 96.52 | 40.79 | 242.40 | 0.7177 | -547.0 | -443.6 | |
| 0.00 | 1.33 | 0.00 | 0.95 | -14.66 | 96.51 | 40.78 | 241.50 | 0.7213 | 836.0 | 716.9 | |
| 0.00 | 1.33 | 0.00 | 0.93 | -12.35 | 95.79 | 40.06 | 244.04 | 0.7016 | -523.0 | -463.5 | |
| 9.16 | -31.00 | 6.53 | -31.00 | -15.03 | 96.30 | 40.57 | 240.92 | 0.7211 | 809.7 | 999999 | |
| 0.71 | -31.00 | 0.51 | -31.00 | -15.28 | 96.20 | 40.47 | 240.54 | 0.7213 | 613.8 | 999999 | |
| 1.78 | 46.18 | 1.26 | 32.60 | -15.95 | 95.66 | 39.92 | 239.38 | 0.7193 | 626.2 | -10.6 | |
| 0.00 | 0.89 | 0.00 | 0.61 | -13.18 | 94.66 | 38.93 | 242.29 | 0.6934 | -495.0 | -401.7 | |
| 0.89 | -37.00 | 0.63 | -37.00 | -16.23 | 95.15 | 39.42 | 238.72 | 0.7157 | -427.4 | 999999 | |
| 2.76 | 252.94 | 1.91 | 172.94 | -14.84 | 94.47 | 38.74 | 240.03 | 0.7006 | -603.1 | -372.6 | |
| 0.00 | 0.62 | 0.00 | 0.41 | -10.44 | 93.34 | 37.61 | 245.18 | 0.6636 | -563.0 | -484.3 | |
| 22.42 | -40.00 | 15.37 | -40.00 | -14.54 | 93.97 | 38.24 | 240.10 | 0.6934 | -941.2 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.80 | -15.83 | 94.21 | 38.47 | 238.62 | 0.7035 | -19.0 | -86.1 | |
| 1.87 | -40.00 | 1.29 | -40.00 | -15.15 | 93.90 | 38.17 | 239.27 | 0.6962 | -393.6 | 999999 | |
| 3.11 | 20.02 | 2.16 | 13.88 | -16.03 | 93.93 | 38.20 | 238.18 | 0.7018 | 666.5 | 64.8 | |
| 1.25 | -40.00 | 0.85 | -40.00 | -14.50 | 93.53 | 37.79 | 239.86 | 0.6884 | -1049.2 | 999999 | |
| 2.67 | -40.00 | 1.83 | -40.00 | -15.29 | 93.61 | 37.88 | 238.90 | 0.6939 | -481.8 | 999999 | |
| 22.87 | -40.00 | 15.57 | -40.00 | -14.78 | 93.38 | 37.65 | 239.40 | 0.6885 | -1024.6 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.61 | -15.89 | 93.38 | 37.65 | 237.99 | 0.6951 | -208.0 | -264.5 | |
| 0.00 | 1.25 | 0.00 | 0.86 | -16.76 | 92.86 | 37.13 | 236.54 | 0.6951 | -621.0 | -529.1 | |
| 0.00 | 1.07 | 0.00 | 0.70 | -11.93 | 91.83 | 36.10 | 242.16 | 0.6542 | -716.0 | -601.3 | |
| 0.00 | 0.98 | 0.00 | 0.67 | -16.89 | 92.50 | 36.77 | 236.12 | 0.6922 | -505.0 | -359.5 | |
| 0.00 | 1.25 | 0.00 | 0.81 | -12.34 | 91.36 | 35.63 | 241.28 | 0.6511 | -509.0 | -462.0 | |
| 0.00 | 0.89 | 0.00 | 0.60 | -16.60 | 92.08 | 36.35 | 236.19 | 0.6859 | -584.0 | -494.0 | |
| 0.00 | 1.78 | 0.00 | 1.16 | -12.33 | 91.16 | 35.43 | 241.17 | 0.6488 | -753.0 | -689.8 | |
| 0.00 | 0.71 | 0.00 | 0.46 | -13.46 | 90.51 | 34.78 | 239.16 | 0.6484 | -667.0 | -558.1 | |
| 0.00 | 1.16 | 0.00 | 0.75 | -16.25 | 89.20 | 33.47 | 234.46 | 0.6529 | -453.0 | -451.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
