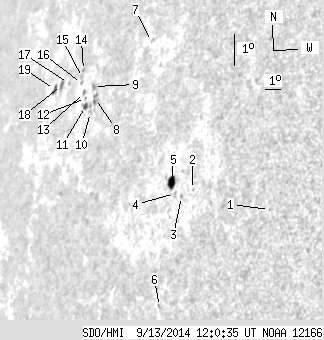

SDO HMI 2014-09-13 12:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.97 | 44.40 | 11.68 | 56.12 | 13.79 | 347.84 | -67.90 | 78.04 | 0.9193 | 4.1 | 183.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-13 12:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.70 | 12.27 | 359.81 | -55.92 | 80.05 | 0.8239 | 244.0 | 225.3 | |
| 0.00 | 0.53 | 0.00 | 0.53 | 12.40 | 355.22 | -60.51 | 79.82 | 0.8658 | -505.0 | -467.2 | |
| 0.00 | 1.25 | 0.00 | 1.25 | 12.12 | 354.62 | -61.11 | 80.13 | 0.8709 | -480.0 | -439.0 | |
| 0.00 | 0.62 | 0.00 | 0.63 | 12.16 | 354.15 | -61.58 | 80.07 | 0.8748 | -487.0 | -454.7 | |
| 6.41 | 8.90 | 6.56 | 9.12 | 12.47 | 353.83 | -61.90 | 79.71 | 0.8774 | -380.5 | -266.1 | |
| 0.00 | 1.51 | 0.00 | 1.53 | 8.72 | 354.35 | -61.39 | 84.01 | 0.8744 | -373.0 | -309.7 | |
| 0.00 | 0.44 | 0.00 | 0.51 | 16.45 | 350.33 | -65.40 | 75.17 | 0.9038 | -192.0 | -190.2 | |
| 0.00 | 5.43 | 0.00 | 7.02 | 14.32 | 347.19 | -68.54 | 77.44 | 0.9255 | 550.0 | 413.4 | |
| 0.00 | 2.67 | 0.00 | 3.50 | 14.65 | 346.80 | -68.94 | 77.08 | 0.9279 | 116.0 | 73.1 | |
| 0.00 | 1.60 | 0.00 | 2.09 | 13.87 | 347.05 | -68.68 | 77.93 | 0.9265 | 505.0 | 454.9 | |
| 1.60 | 4.27 | 2.13 | 5.66 | 13.99 | 346.53 | -69.20 | 77.77 | 0.9298 | 442.4 | 431.7 | |
| 0.00 | 0.71 | 0.00 | 0.95 | 14.22 | 346.37 | -69.36 | 77.51 | 0.9307 | 312.0 | 297.1 | |
| 0.00 | 1.78 | 0.00 | 2.41 | 14.39 | 346.17 | -69.56 | 77.33 | 0.9319 | 315.0 | 262.3 | |
| 0.00 | 1.16 | 0.00 | 1.60 | 15.01 | 345.63 | -70.10 | 76.64 | 0.9350 | -106.0 | -71.2 | |
| 0.00 | 2.85 | 0.00 | 3.93 | 14.80 | 345.70 | -70.04 | 76.87 | 0.9347 | 389.0 | 328.7 | |
| 0.00 | 1.25 | 0.00 | 1.71 | 14.62 | 345.73 | -70.00 | 77.07 | 0.9345 | 195.0 | 205.9 | |
| 0.00 | 0.80 | 0.00 | 1.16 | 14.48 | 344.60 | -71.13 | 77.16 | 0.9412 | 332.0 | 315.2 | |
| 0.00 | 3.83 | 0.00 | 5.69 | 14.35 | 344.00 | -71.73 | 77.27 | 0.9445 | 389.0 | 283.7 | |
| 1.96 | 4.00 | 2.99 | 6.13 | 14.16 | 343.44 | -72.29 | 77.45 | 0.9477 | 155.0 | 85.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
