SDO HMI 2014-09-13 14:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 28.74 | 0.00 | 17.64 | -24.35 | 71.74 | 17.11 | 207.09 | 0.5909 | -185.8 | -183.7 | |
|
previous
or next observation for the same group /

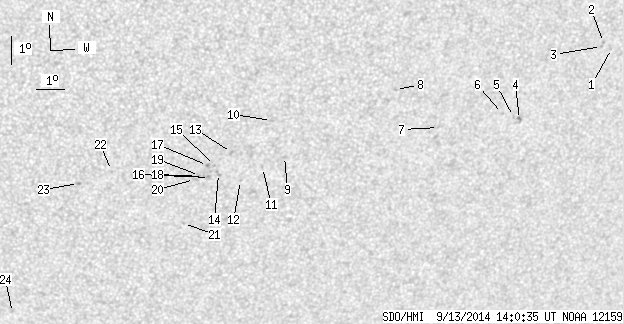

back to the solar disc SDO HMI 2014-09-13 14:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.36 | 0.00 | 0.23 | -21.29 | 82.31 | 27.68 | 223.01 | 0.6367 | 543.0 | 456.8 | |
| 0.00 | 1.16 | 0.00 | 0.74 | -21.07 | 81.97 | 27.34 | 222.93 | 0.6315 | 722.0 | 524.4 | |
| 0.00 | 0.89 | 0.00 | 0.57 | -21.20 | 81.92 | 27.29 | 222.73 | 0.6323 | 684.0 | 577.5 | |
| 0.00 | 2.31 | 0.00 | 1.48 | -23.57 | 79.42 | 24.79 | 217.48 | 0.6338 | 678.0 | 543.8 | |
| 0.00 | 0.71 | 0.00 | 0.45 | -23.45 | 79.18 | 24.55 | 217.34 | 0.6306 | 664.0 | 619.0 | |
| 0.00 | 0.80 | 0.00 | 0.51 | -23.32 | 78.75 | 24.12 | 217.00 | 0.6258 | 651.0 | 547.9 | |
| 0.00 | 0.89 | 0.00 | 0.56 | -23.69 | 76.53 | 21.90 | 214.06 | 0.6122 | 520.0 | 387.8 | |
| 0.00 | 1.51 | 0.00 | 0.92 | -22.28 | 74.79 | 20.16 | 213.32 | 0.5828 | 733.0 | 574.3 | |
| 0.00 | 1.42 | 0.00 | 0.87 | -24.47 | 71.26 | 16.63 | 206.58 | 0.5841 | -54.0 | -131.4 | |
| 0.00 | 1.25 | 0.00 | 0.75 | -23.18 | 70.64 | 16.01 | 206.83 | 0.5641 | -548.0 | -476.1 | |
| 0.00 | 0.53 | 0.00 | 0.33 | -24.83 | 70.54 | 15.91 | 205.31 | 0.5843 | -670.0 | -540.7 | |
| 0.00 | 0.89 | 0.00 | 0.54 | -25.27 | 69.84 | 15.21 | 203.99 | 0.5856 | -479.0 | -410.6 | |
| 0.00 | 2.13 | 0.00 | 1.29 | -24.26 | 69.41 | 14.77 | 204.16 | 0.5702 | -795.0 | -626.5 | |
| 0.00 | 2.67 | 0.00 | 1.62 | -24.99 | 69.05 | 14.42 | 203.09 | 0.5776 | -545.0 | -553.9 | |
| 0.00 | 0.53 | 0.00 | 0.32 | -24.70 | 68.88 | 14.24 | 203.06 | 0.5729 | -758.0 | -685.7 | |
| 0.00 | 2.05 | 0.00 | 1.24 | -25.12 | 68.75 | 14.12 | 202.57 | 0.5777 | -534.0 | -493.1 | |
| 0.00 | 1.16 | 0.00 | 0.70 | -24.69 | 68.63 | 14.00 | 202.72 | 0.5714 | -838.0 | -656.7 | |
| 0.00 | 0.80 | 0.00 | 0.48 | -25.08 | 68.54 | 13.91 | 202.30 | 0.5760 | -701.0 | -616.1 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -25.04 | 68.40 | 13.77 | 202.13 | 0.5747 | -775.0 | -705.4 | |
| 0.00 | 2.05 | 0.00 | 1.24 | -25.18 | 68.24 | 13.61 | 201.80 | 0.5757 | -625.0 | -505.0 | |
| 0.00 | 0.98 | 0.00 | 0.60 | -26.75 | 68.05 | 13.42 | 200.45 | 0.5953 | -645.0 | -455.8 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -24.77 | 65.38 | 10.75 | 197.79 | 0.5563 | -485.0 | -335.2 | |
| 0.00 | 1.33 | 0.00 | 0.79 | -25.20 | 64.30 | 9.67 | 195.87 | 0.5578 | -635.0 | -497.9 | |
| 0.00 | 0.89 | 0.00 | 0.56 | -29.91 | 62.39 | 7.76 | 191.00 | 0.6160 | -568.0 | -330.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
