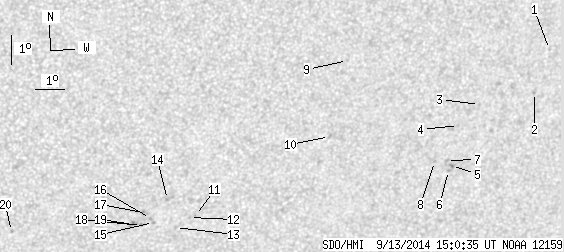

SDO HMI 2014-09-13 15:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 26.79 | 0.00 | 16.54 | -23.76 | 73.35 | 19.27 | 210.40 | 0.5984 | -22.1 | -80.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-13 15:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.45 | -19.72 | 82.17 | 28.09 | 225.27 | 0.6262 | 581.0 | 470.2 | |
| 0.00 | 1.16 | 0.00 | 0.74 | -21.16 | 81.91 | 27.83 | 223.32 | 0.6369 | 541.0 | 555.1 | |
| 0.00 | 0.89 | 0.00 | 0.56 | -21.45 | 79.97 | 25.89 | 220.97 | 0.6221 | 584.0 | 521.8 | |
| 0.00 | 1.07 | 0.00 | 0.67 | -22.14 | 79.34 | 25.26 | 219.53 | 0.6234 | 291.0 | 304.2 | |
| 0.00 | 2.05 | 0.00 | 1.31 | -23.53 | 79.37 | 25.29 | 218.06 | 0.6375 | 655.0 | 527.7 | |
| 0.00 | 1.07 | 0.00 | 0.69 | -23.70 | 79.29 | 25.21 | 217.81 | 0.6386 | 401.0 | 432.4 | |
| 0.00 | 1.69 | 0.00 | 1.08 | -23.34 | 79.15 | 25.07 | 218.02 | 0.6338 | 283.0 | 382.9 | |
| 0.00 | 0.89 | 0.00 | 0.57 | -23.35 | 78.71 | 24.63 | 217.54 | 0.6303 | 529.0 | 506.3 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -19.69 | 75.04 | 20.96 | 217.15 | 0.5600 | 635.0 | 510.3 | |
| 0.00 | 1.42 | 0.00 | 0.87 | -22.27 | 74.80 | 20.72 | 214.03 | 0.5871 | 690.0 | 545.6 | |
| 0.00 | 0.98 | 0.00 | 0.60 | -24.85 | 70.51 | 16.43 | 206.01 | 0.5877 | -621.0 | -551.9 | |
| 0.00 | 0.98 | 0.00 | 0.60 | -24.91 | 70.32 | 16.24 | 205.68 | 0.5873 | -529.0 | -467.4 | |
| 0.00 | 1.60 | 0.00 | 0.98 | -25.25 | 69.88 | 15.80 | 204.81 | 0.5889 | -497.0 | -327.1 | |
| 0.00 | 1.78 | 0.00 | 1.07 | -24.24 | 69.47 | 15.39 | 205.05 | 0.5737 | -589.0 | -647.2 | |
| 0.00 | 1.07 | 0.00 | 0.65 | -25.04 | 69.09 | 15.01 | 203.88 | 0.5817 | -479.0 | -487.1 | |
| 0.00 | 1.07 | 0.00 | 0.65 | -24.90 | 68.97 | 14.89 | 203.82 | 0.5791 | -405.0 | -495.2 | |
| 0.00 | 1.42 | 0.00 | 0.86 | -24.67 | 68.66 | 14.58 | 203.57 | 0.5745 | -682.0 | -615.0 | |
| 0.00 | 1.69 | 0.00 | 1.03 | -25.14 | 68.69 | 14.61 | 203.25 | 0.5806 | -656.0 | -532.7 | |
| 0.00 | 3.20 | 0.00 | 1.94 | -25.09 | 68.40 | 14.32 | 202.88 | 0.5784 | -838.0 | -664.6 | |
| 0.00 | 1.16 | 0.00 | 0.69 | -25.21 | 64.25 | 10.17 | 196.65 | 0.5600 | -337.0 | -371.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
