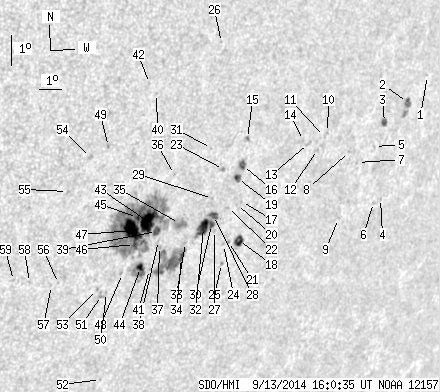

SDO HMI 2014-09-13 16:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 92.30 | 418.34 | 67.23 | 302.39 | -14.78 | 95.16 | 41.63 | 241.75 | 0.7307 | -183.0 | -196.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-13 16:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.53 | 0.00 | 0.46 | -11.06 | 105.73 | 52.20 | 251.07 | 0.8220 | 408.0 | 355.5 | |
| 2.67 | 10.31 | 2.28 | 8.82 | -11.83 | 104.92 | 51.40 | 249.88 | 0.8167 | 667.4 | 544.0 | |
| 2.49 | 4.36 | 2.09 | 3.65 | -12.37 | 103.93 | 50.41 | 248.89 | 0.8091 | 720.7 | 506.9 | |
| 0.00 | 1.07 | 0.00 | 0.92 | -14.85 | 104.47 | 50.94 | 246.22 | 0.8224 | 386.0 | 297.4 | |
| 0.00 | 1.24 | 0.00 | 1.04 | -13.10 | 103.65 | 50.12 | 247.91 | 0.8088 | 410.0 | 326.6 | |
| 0.00 | 1.33 | 0.00 | 1.15 | -14.95 | 104.16 | 50.63 | 245.98 | 0.8199 | 256.0 | 269.1 | |
| 0.00 | 1.07 | 0.00 | 0.88 | -13.54 | 102.95 | 49.42 | 247.11 | 0.8037 | 515.0 | 428.8 | |
| 0.00 | 1.07 | 0.00 | 0.87 | -13.14 | 102.46 | 48.93 | 247.38 | 0.7976 | 635.0 | 531.6 | |
| 0.00 | 0.71 | 0.00 | 0.59 | -15.30 | 102.57 | 49.04 | 244.90 | 0.8066 | 480.0 | 352.5 | |
| 0.00 | 0.89 | 0.00 | 0.71 | -12.42 | 101.25 | 47.72 | 247.73 | 0.7830 | 572.0 | 475.9 | |
| 0.00 | 0.89 | 0.00 | 0.70 | -12.53 | 101.14 | 47.61 | 247.55 | 0.7824 | 284.0 | 379.0 | |
| 0.00 | 0.71 | 0.00 | 0.56 | -12.92 | 100.91 | 47.38 | 246.98 | 0.7816 | 505.0 | 503.1 | |
| 0.00 | 2.31 | 0.00 | 1.81 | -12.69 | 100.44 | 46.91 | 247.06 | 0.7760 | 613.0 | 575.2 | |
| 0.00 | 0.62 | 0.00 | 0.48 | -12.57 | 100.19 | 46.66 | 247.09 | 0.7729 | 597.0 | 511.9 | |
| 0.00 | 2.04 | 0.00 | 1.51 | -12.27 | 97.64 | 44.12 | 246.28 | 0.7453 | -577.0 | -486.3 | |
| 2.93 | 4.71 | 2.18 | 3.51 | -13.12 | 97.62 | 44.09 | 245.20 | 0.7487 | -726.3 | -541.2 | |
| 0.00 | 0.80 | 0.00 | 0.60 | -14.30 | 97.85 | 44.32 | 243.87 | 0.7564 | 622.0 | 514.3 | |
| 6.05 | 8.80 | 4.63 | 6.74 | -15.58 | 98.06 | 44.53 | 242.43 | 0.7643 | 625.5 | 380.5 | |
| 2.85 | 4.71 | 2.12 | 3.51 | -13.53 | 97.49 | 43.96 | 244.64 | 0.7493 | -571.1 | -435.3 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -14.38 | 97.65 | 44.13 | 243.68 | 0.7548 | 622.0 | 594.7 | |
| 0.00 | 1.16 | 0.00 | 0.88 | -15.57 | 97.61 | 44.09 | 242.21 | 0.7599 | 582.0 | 500.8 | |
| 0.00 | 1.16 | 0.00 | 0.86 | -14.44 | 97.28 | 43.75 | 243.41 | 0.7512 | 637.0 | 602.8 | |
| 0.00 | 1.87 | 0.00 | 1.37 | -13.18 | 96.81 | 43.28 | 244.72 | 0.7405 | -731.0 | -584.1 | |
| 0.00 | 1.16 | 0.00 | 0.87 | -15.65 | 97.42 | 43.89 | 242.01 | 0.7583 | 578.0 | 431.8 | |
| 0.00 | 1.16 | 0.00 | 0.88 | -16.27 | 97.50 | 43.97 | 241.31 | 0.7621 | 455.0 | 391.3 | |
| 0.00 | 0.62 | 0.00 | 0.44 | -9.09 | 95.98 | 42.45 | 249.57 | 0.7135 | -513.0 | -445.9 | |
| 0.00 | 1.33 | 0.00 | 1.00 | -15.15 | 96.89 | 43.37 | 242.34 | 0.7506 | 269.0 | 234.3 | |
| 3.56 | 27.30 | 2.64 | 20.21 | -14.65 | 96.73 | 43.20 | 242.86 | 0.7465 | 822.1 | 564.3 | |
| 0.00 | 1.16 | 0.00 | 0.85 | -14.08 | 96.55 | 43.02 | 243.46 | 0.7420 | -332.0 | -244.5 | |
| 2.31 | -28.00 | 1.72 | -28.00 | -14.94 | 96.71 | 43.18 | 242.50 | 0.7477 | 674.5 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.71 | -12.45 | 96.15 | 42.62 | 245.30 | 0.7301 | -598.0 | -480.5 | |
| 11.56 | -28.00 | 8.55 | -28.00 | -15.00 | 96.39 | 42.86 | 242.24 | 0.7447 | 758.3 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.52 | -15.43 | 95.73 | 42.20 | 241.36 | 0.7401 | 583.0 | 446.6 | |
| 2.67 | 45.88 | 1.96 | 33.54 | -15.91 | 95.68 | 42.15 | 240.74 | 0.7420 | 569.5 | -1.5 | |
| 0.00 | 12.00 | 0.00 | 8.71 | -14.78 | 95.31 | 41.79 | 241.93 | 0.7325 | -99.0 | -52.0 | |
| 0.00 | 0.71 | 0.00 | 0.50 | -13.15 | 94.75 | 41.22 | 243.65 | 0.7184 | -426.0 | -372.6 | |
| 0.00 | 1.69 | 0.00 | 1.22 | -15.46 | 94.64 | 41.11 | 240.70 | 0.7291 | -130.0 | -258.8 | |
| 0.00 | 0.71 | 0.00 | 0.51 | -15.26 | 94.55 | 41.02 | 240.89 | 0.7271 | -386.0 | -335.8 | |
| 4.00 | 230.55 | 2.86 | 162.56 | -14.96 | 94.40 | 40.87 | 241.18 | 0.7238 | -568.0 | -408.6 | |
| 0.00 | 0.80 | 0.00 | 0.55 | -10.48 | 93.53 | 40.01 | 246.49 | 0.6917 | -579.0 | -489.0 | |
| 0.00 | 0.98 | 0.00 | 0.71 | -16.19 | 94.40 | 40.88 | 239.66 | 0.7305 | -452.0 | -343.9 | |
| 0.00 | 0.80 | 0.00 | 0.54 | -10.14 | 93.20 | 39.67 | 246.77 | 0.6862 | -540.0 | -489.1 | |
| 20.98 | -39.00 | 14.87 | -39.00 | -14.59 | 93.94 | 40.41 | 241.37 | 0.7171 | -908.1 | 999999 | |
| 3.29 | 22.41 | 2.36 | 16.07 | -16.09 | 94.00 | 40.48 | 239.54 | 0.7259 | 614.0 | -34.3 | |
| 1.60 | -39.00 | 1.13 | -39.00 | -14.43 | 93.50 | 39.97 | 241.31 | 0.7115 | -1012.2 | 999999 | |
| 2.04 | -39.00 | 1.45 | -39.00 | -15.30 | 93.57 | 40.04 | 240.25 | 0.7170 | -492.2 | 999999 | |
| 23.30 | -39.00 | 16.39 | -39.00 | -14.84 | 93.38 | 39.85 | 240.73 | 0.7125 | -1034.9 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.57 | -16.22 | 93.30 | 39.77 | 238.94 | 0.7193 | -256.0 | -315.6 | |
| 0.00 | 1.24 | 0.00 | 0.84 | -12.02 | 91.87 | 38.35 | 243.47 | 0.6805 | -739.0 | -621.8 | |
| 0.00 | 0.98 | 0.00 | 0.69 | -16.80 | 92.78 | 39.25 | 237.91 | 0.7173 | -499.0 | -425.5 | |
| 0.00 | 3.56 | 0.00 | 2.51 | -16.88 | 92.60 | 39.07 | 237.69 | 0.7159 | -441.0 | -476.5 | |
| 0.00 | 0.89 | 0.00 | 0.65 | -19.73 | 93.33 | 39.81 | 234.76 | 0.7402 | -455.0 | -354.3 | |
| 0.00 | 0.80 | 0.00 | 0.56 | -16.67 | 92.38 | 38.86 | 237.81 | 0.7125 | -620.0 | -505.4 | |
| 0.00 | 2.13 | 0.00 | 1.43 | -12.31 | 91.22 | 37.69 | 242.67 | 0.6747 | -703.0 | -566.6 | |
| 0.00 | 0.89 | 0.00 | 0.59 | -13.34 | 90.50 | 36.97 | 240.83 | 0.6724 | -519.0 | -495.6 | |
| 0.00 | 0.36 | 0.00 | 0.24 | -16.34 | 90.75 | 37.22 | 237.13 | 0.6934 | -515.0 | -489.0 | |
| 0.00 | 0.71 | 0.00 | 0.49 | -16.38 | 90.48 | 36.95 | 236.89 | 0.6908 | -554.0 | -441.0 | |
| 0.00 | 0.89 | 0.00 | 0.60 | -16.21 | 89.58 | 36.05 | 236.47 | 0.6802 | -565.0 | -458.4 | |
| 0.00 | 1.51 | 0.00 | 1.01 | -16.10 | 88.93 | 35.41 | 236.14 | 0.6726 | -692.0 | -517.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
